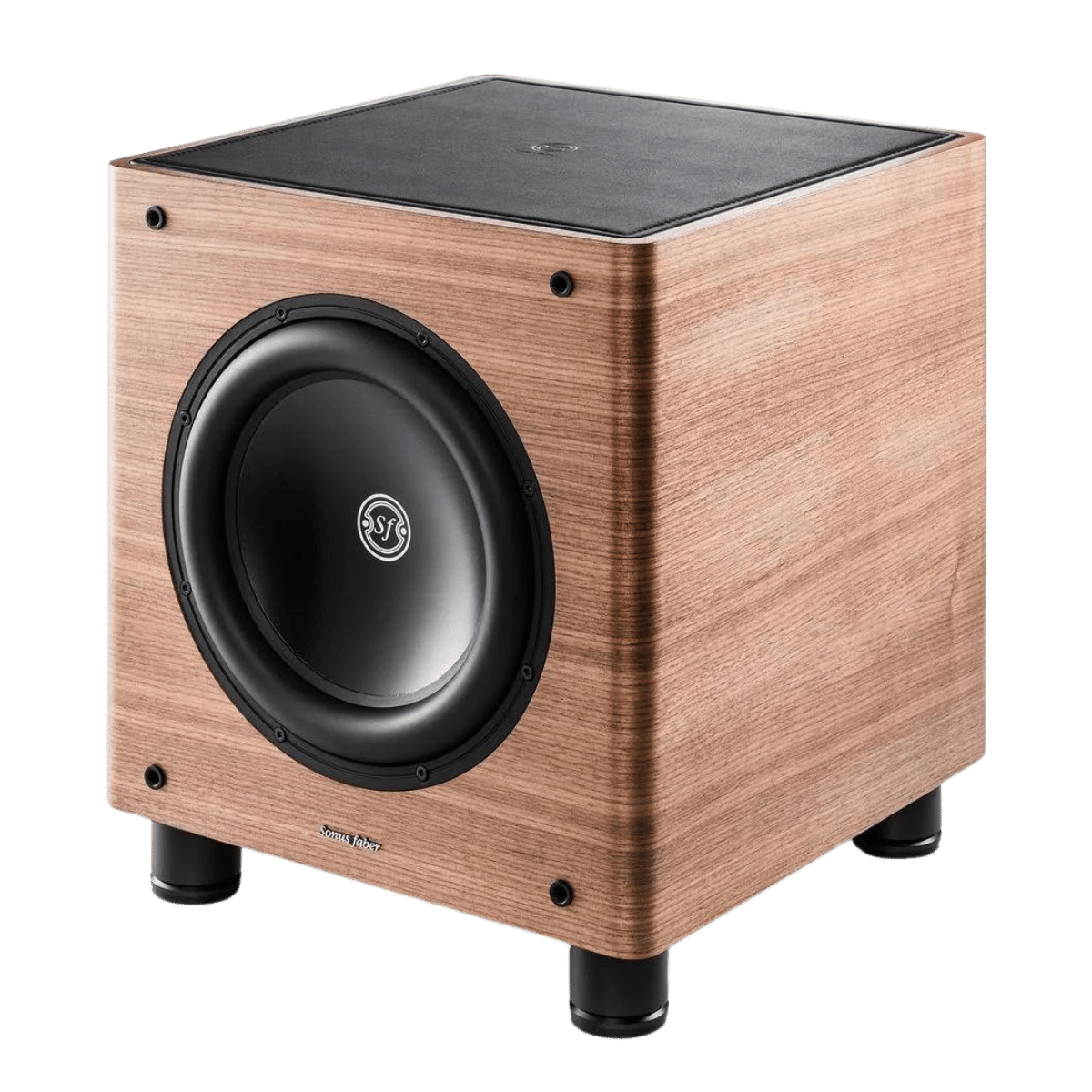

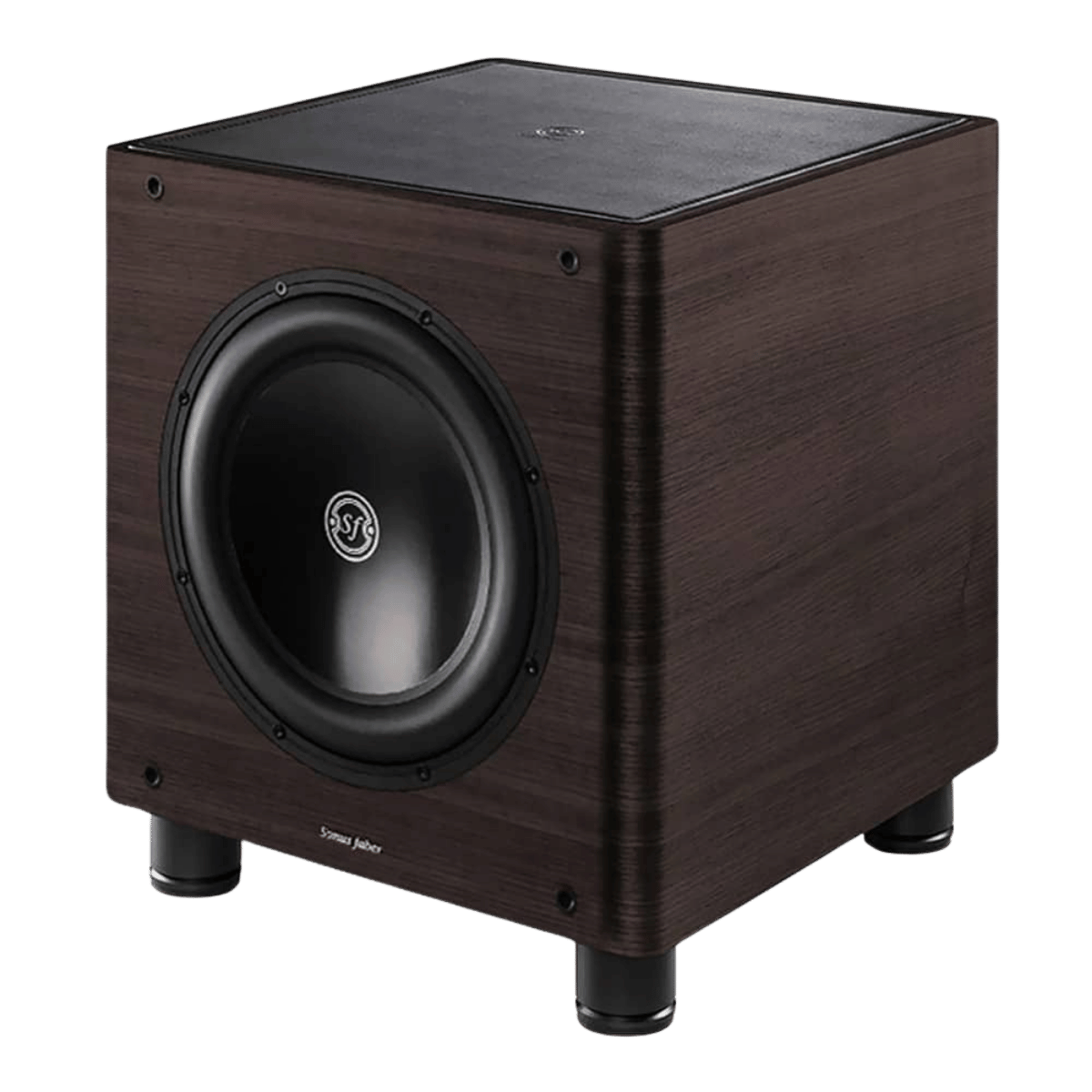

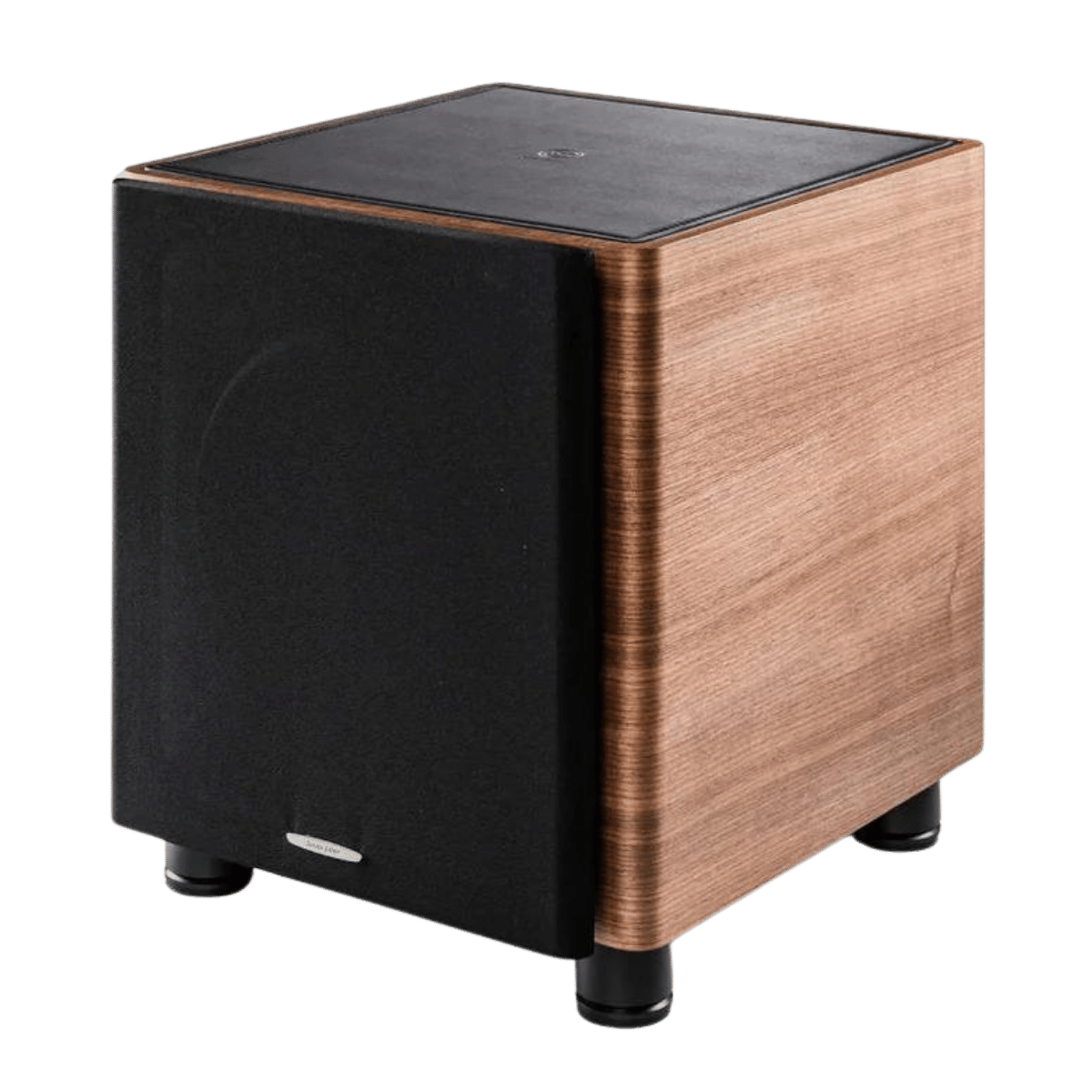

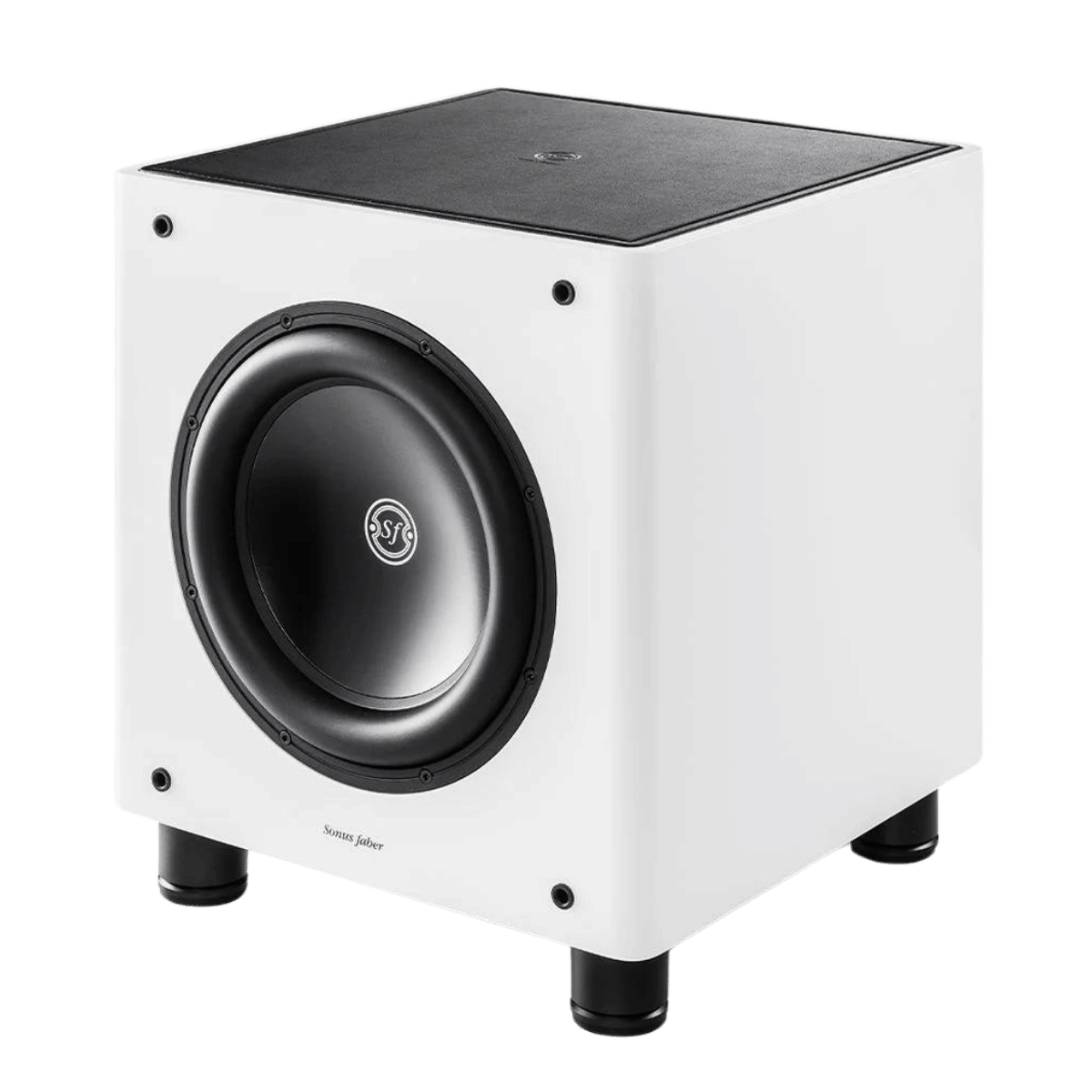

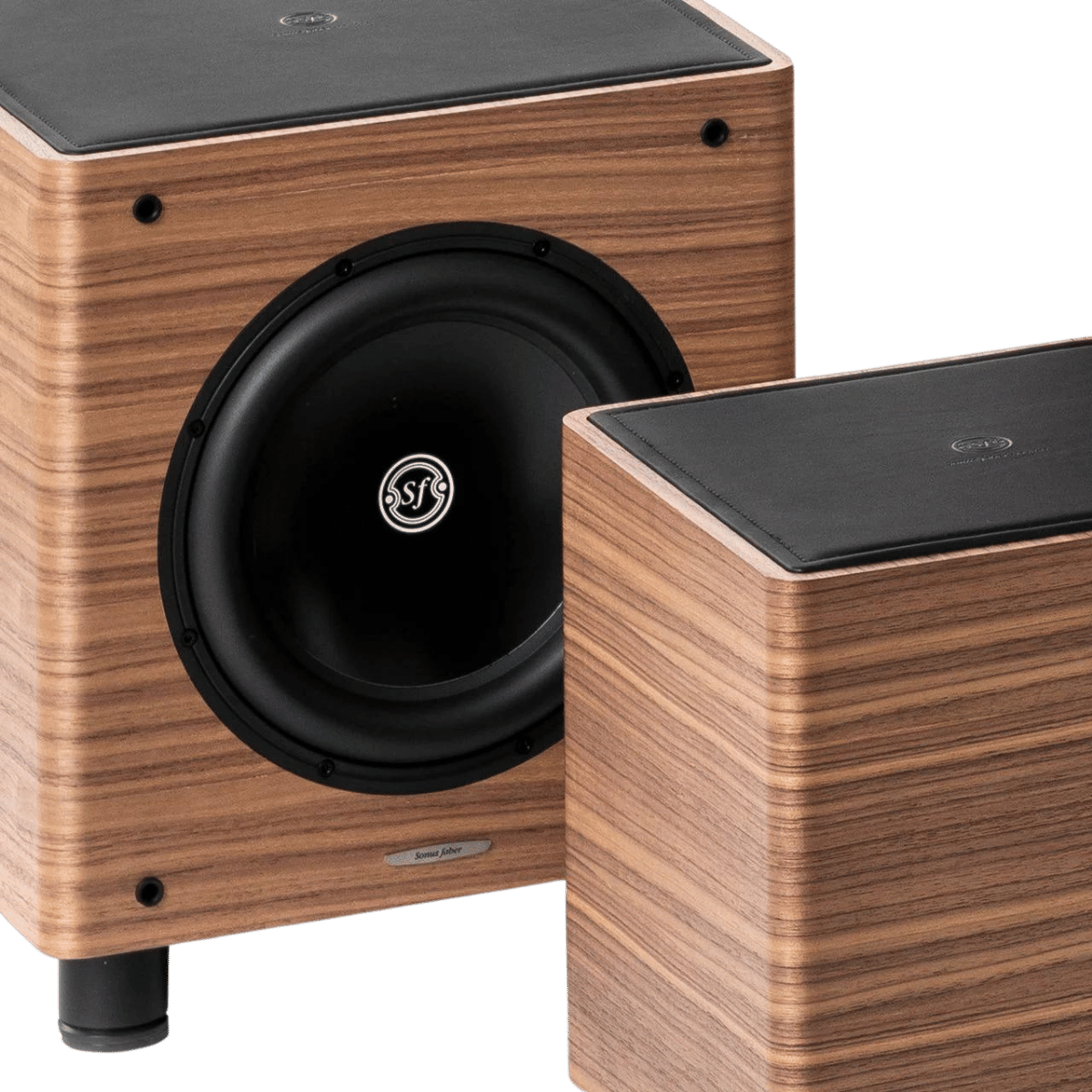

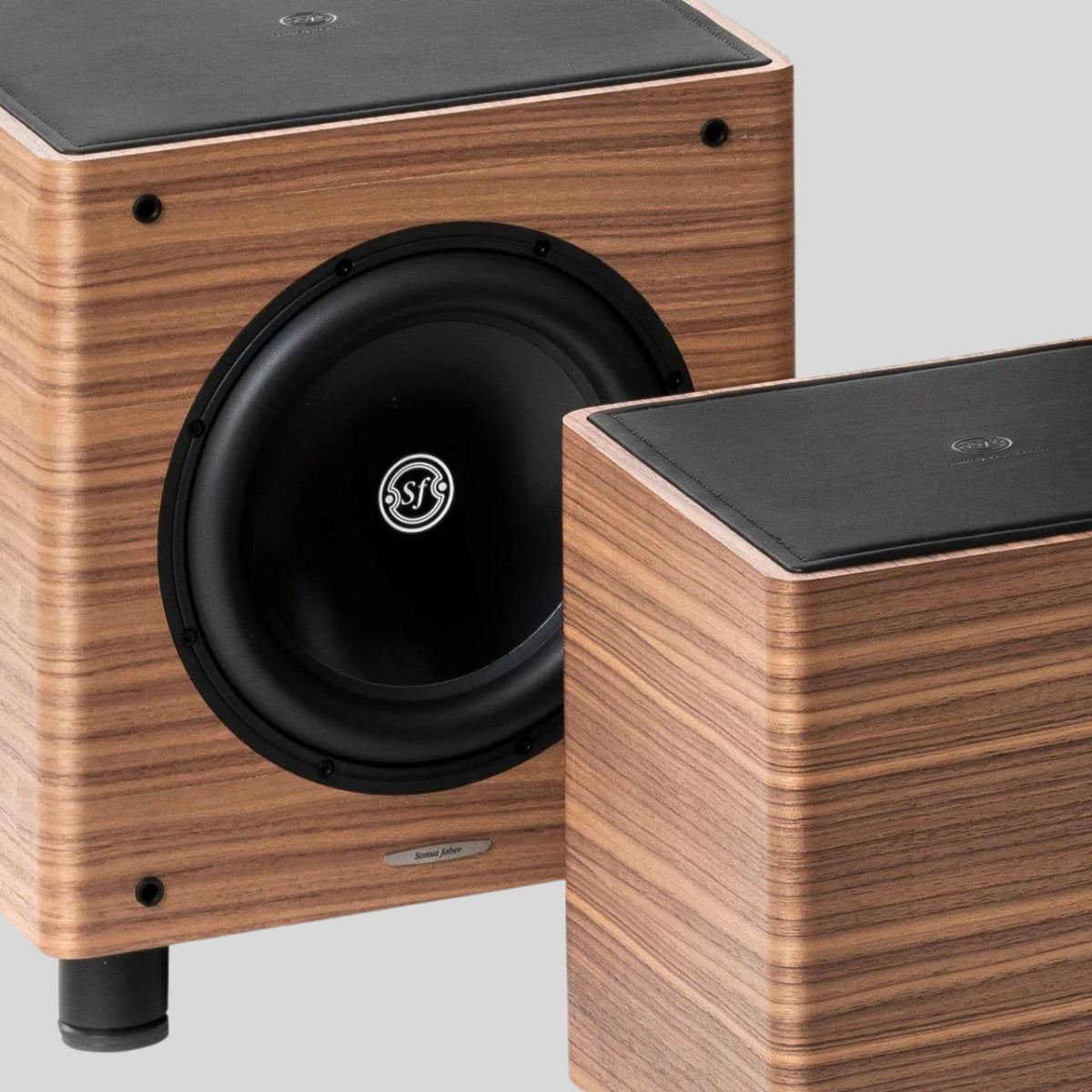

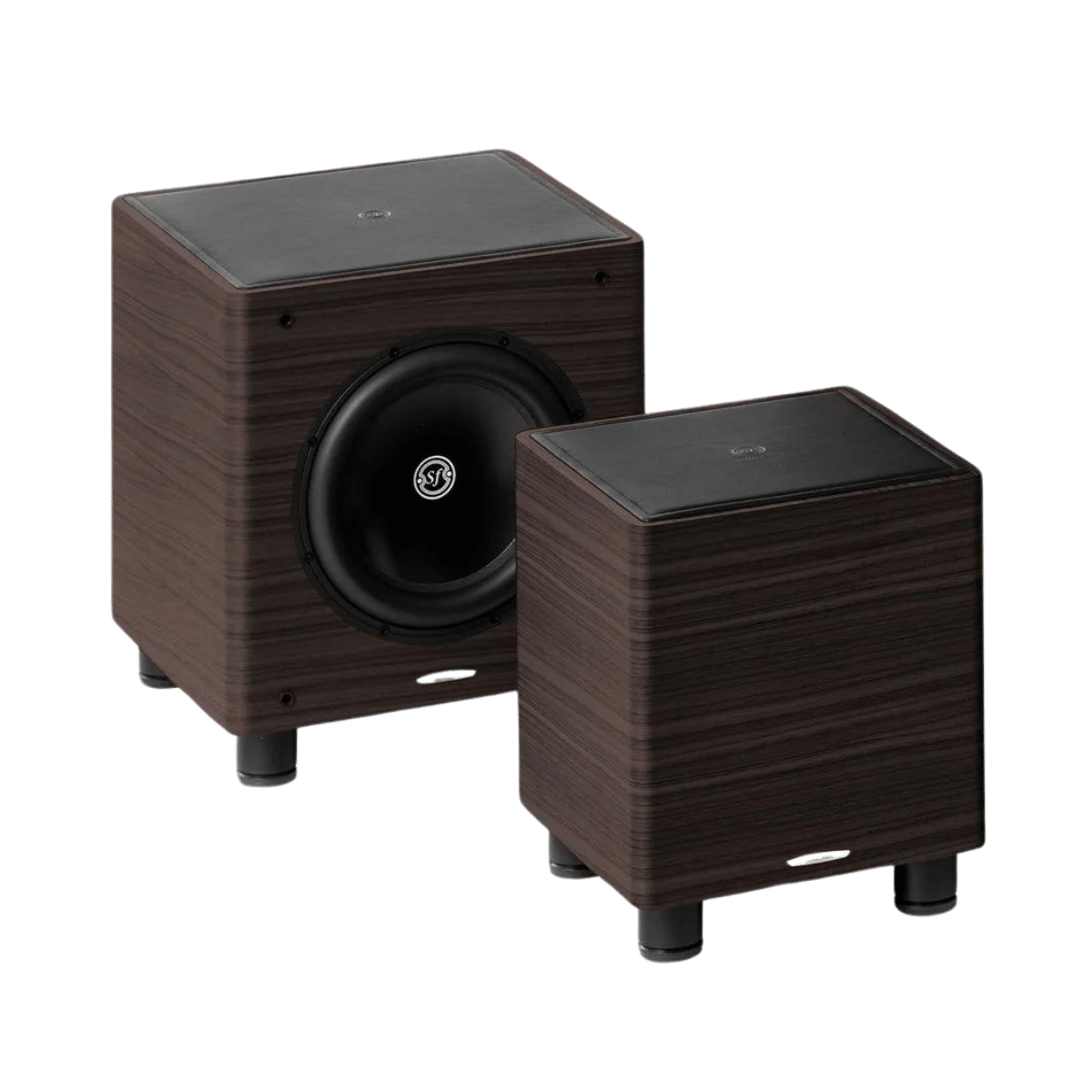

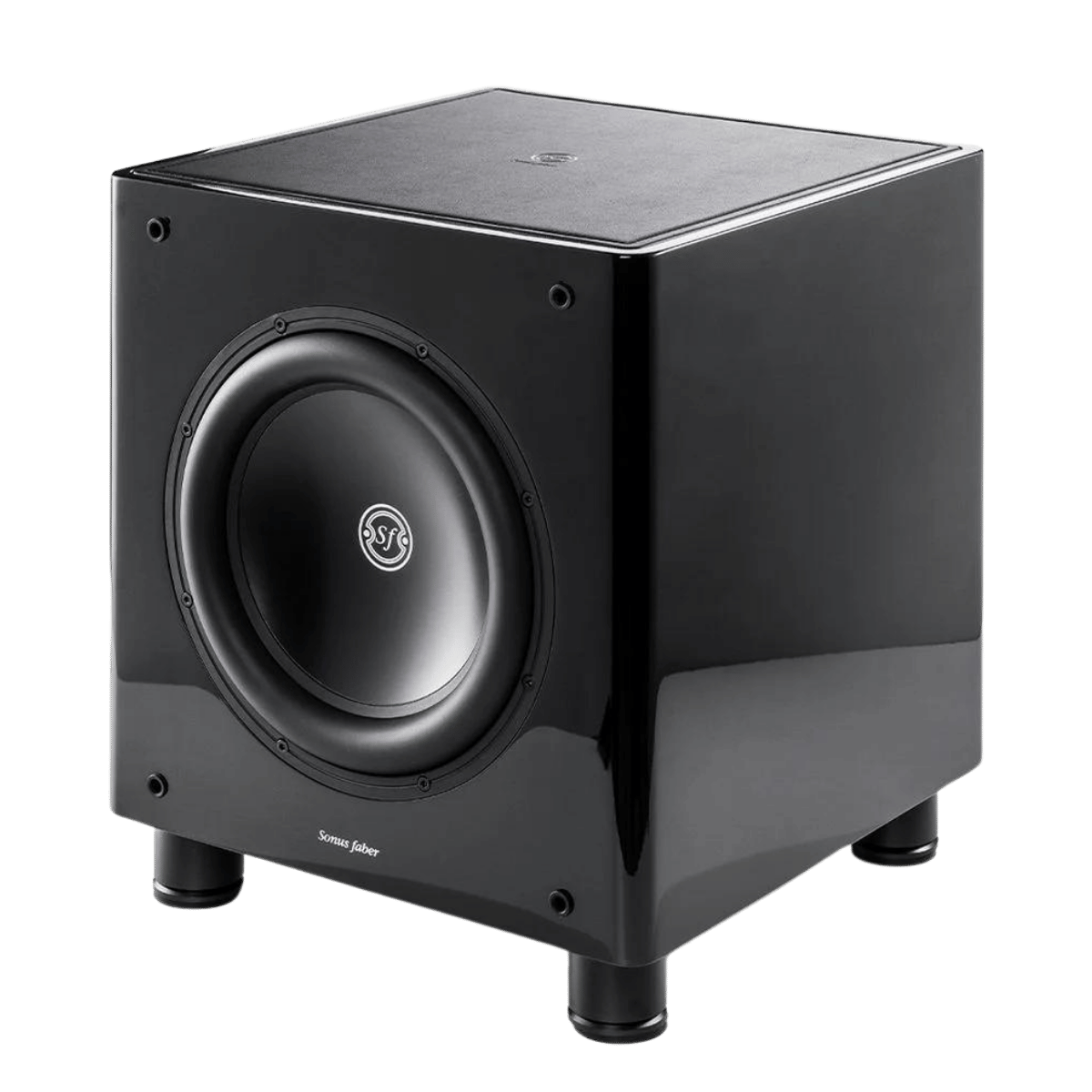

Sonus Faber Gravis II Subwoofer
Specifications
System | Passive radiator bass-reflex loading active subwoofer |
Loudspeakers | Sw: Ø 260 mm, very long throw, treated paper cone, wide rubber surround woofer |
Pw: Ø 260 mm, long throw, treated paper cone, wide rubber surround ABR unit | |
Frequency response | @ - 6dB, from 25 Hz to Fc (user adjustable) |
On board amplifiers | High linearity Class AB |
350 W rms, 700 W (peak) | |
Power consumption | 0.5 W (Stand-by) |
450 W (Rated power) | |
Audio Input / Output | LFE (Low Frequency Effect), mono RCA plug LINE, mono RCA plug |
HIGH LEVEL, Neutrik 4-pole Speakon© | |
Mains Input Voltage | Factory selected, 120 Vac – 60 Hz or 230 Vac - 50 Hz |
Decoupling Systems | Rubber pad |
Product dimensions (HxWxD) | 404 x 356 x 408 mm / unit |
15,9 x 14 x 16 in / unit | |
Dimensions with packaging (HxWxD) | 537 x 512 x 526 mm / unit |
21.1 x 20.2 x 20.7 in / unit | |
Weight | 19,1 Kg / unit |
42.1 lb / unit | |
Packaging weight | 26,8 Kg / unit |
59.1 lb / unit | |

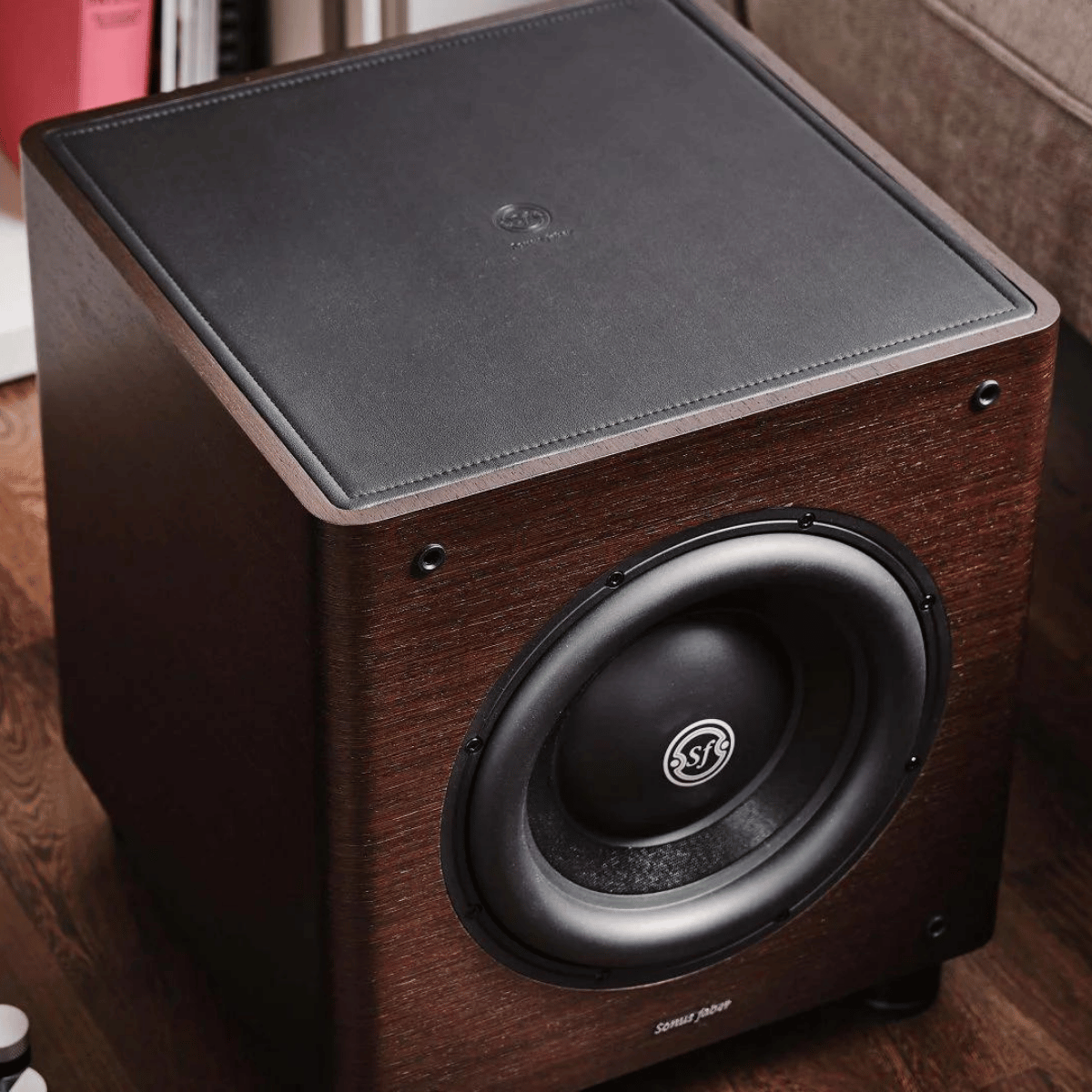

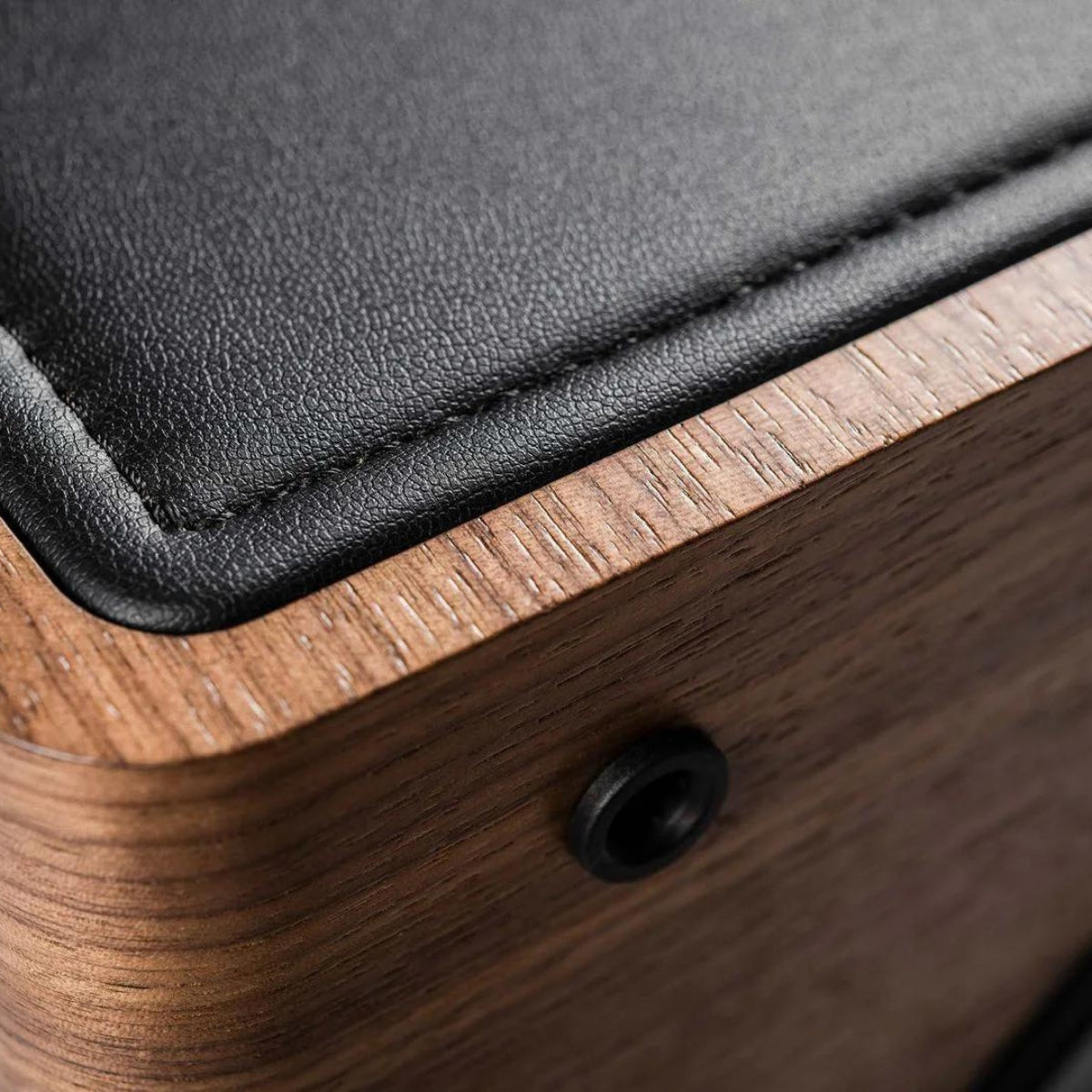

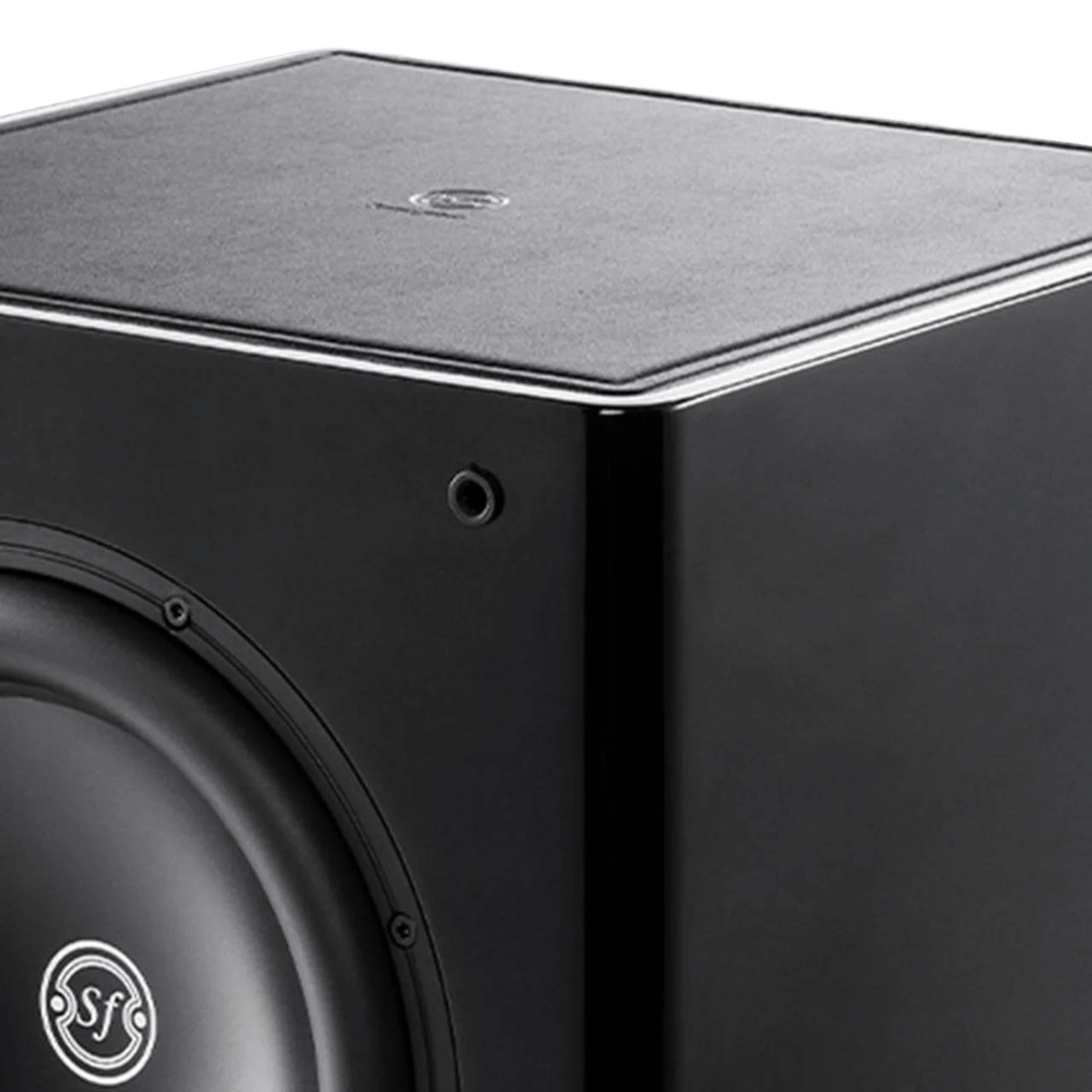

Cabinet | Squared shape |
Oper pore/ matte/ high gloss wood | |

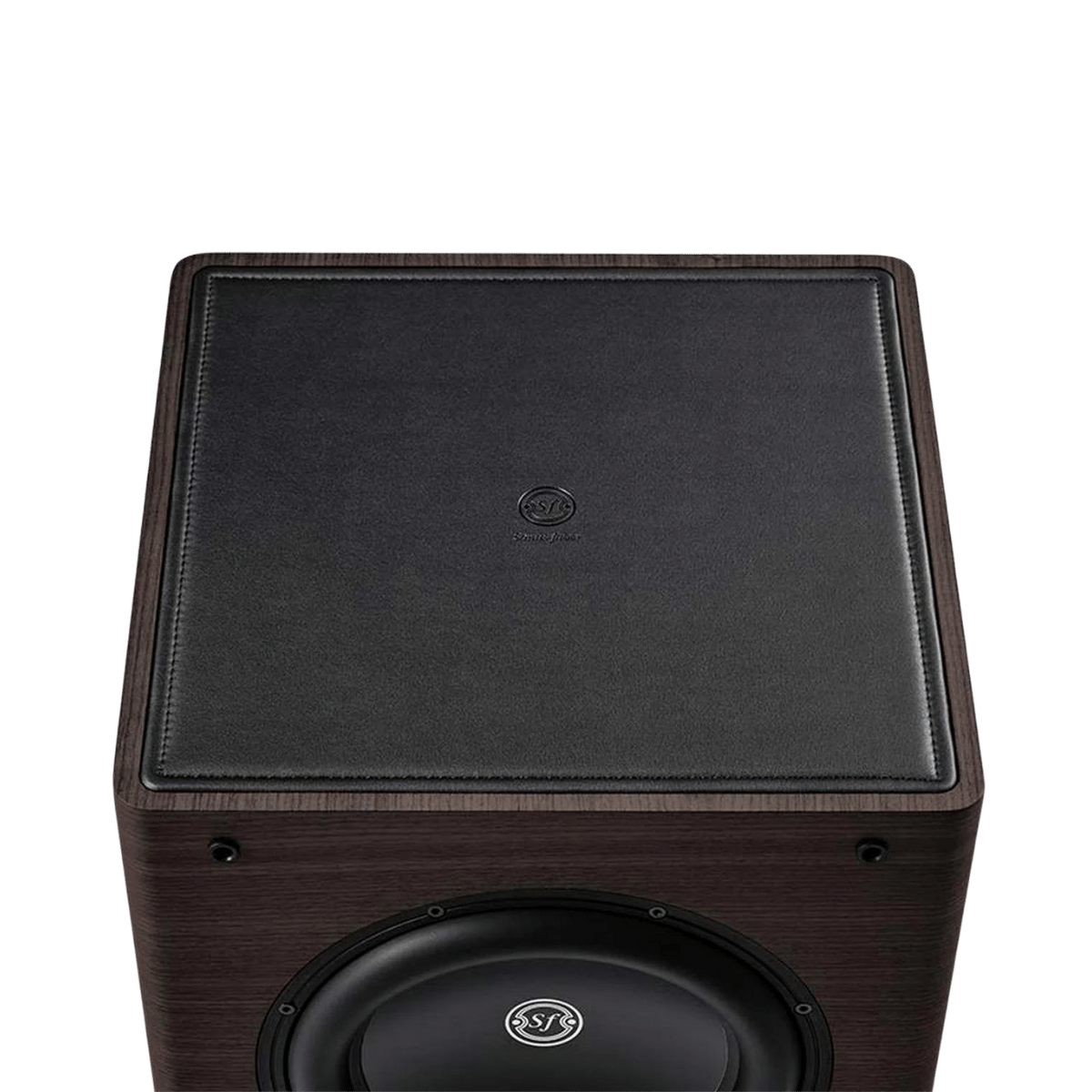

Black leather | |
Fuse | Factory selected |
T6.3A (110 Vac, 60 Hz); T3.15A (230 Vac, 50 Hz) | |

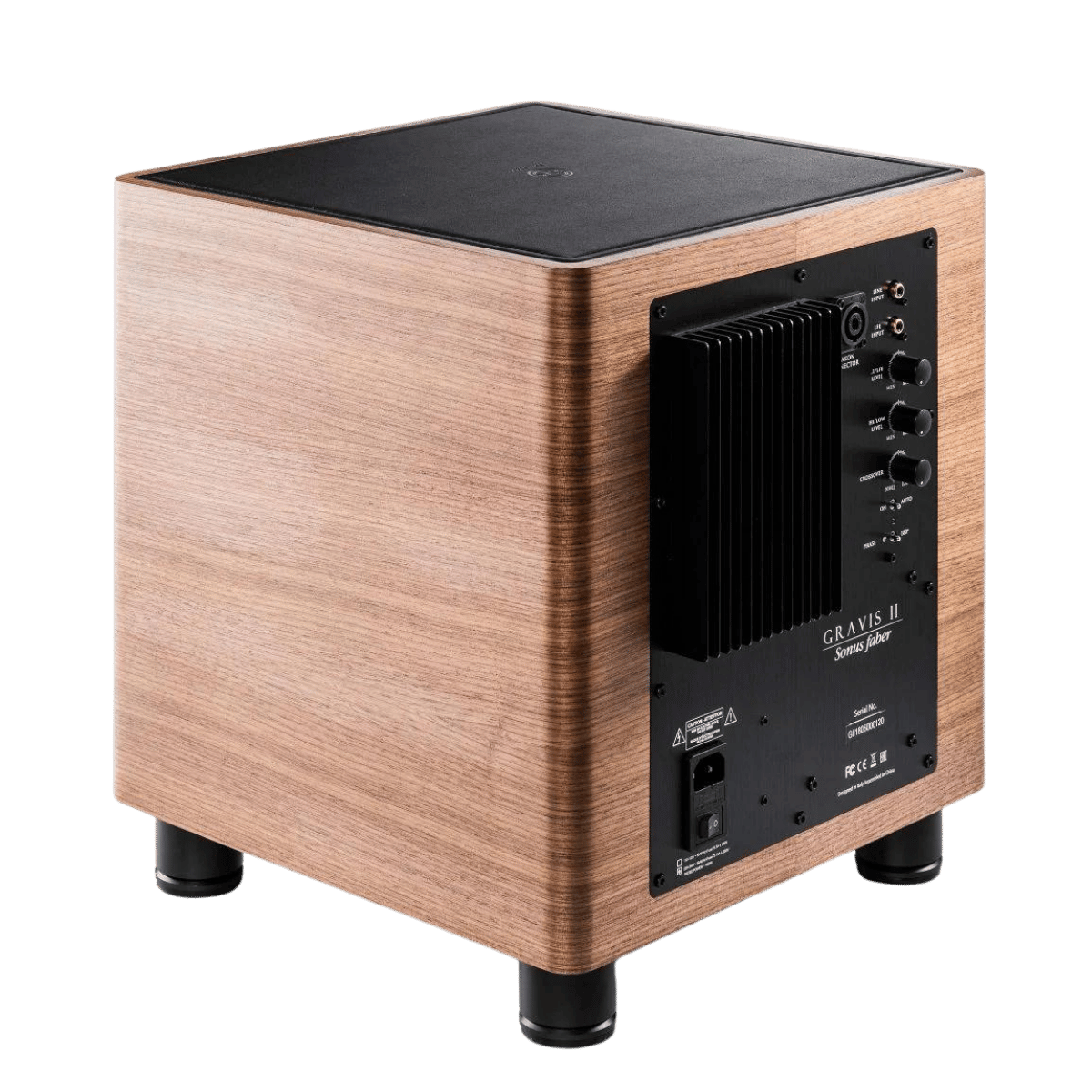

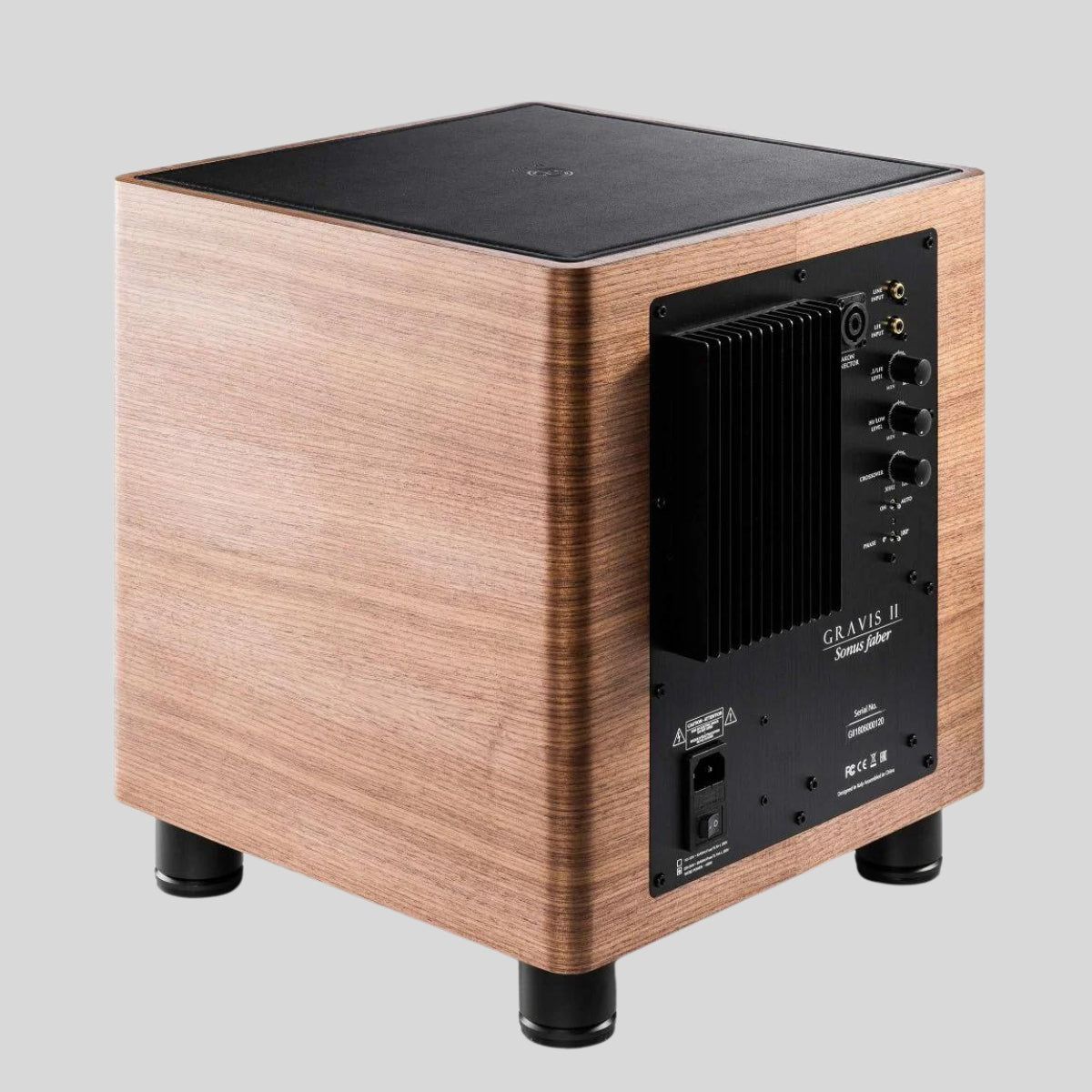

Controls | Independent Master and LFE volume controls |
Continuously adjustable Crossover frequency (30 to 120 Hz), slope 24 dB / oct | |
Signal phase inversion switch (0/180°) | |
Auto switch - on / off (deselectable) |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

TELL ME MORE ABOUT THE
Sonus Faber Gravis II Subwoofer

EXPERTISE AND ARTISANSHIP

SEPARATE VOLUME CONTROLS

SPEAKER UNIT AND SOUND SYSTEM

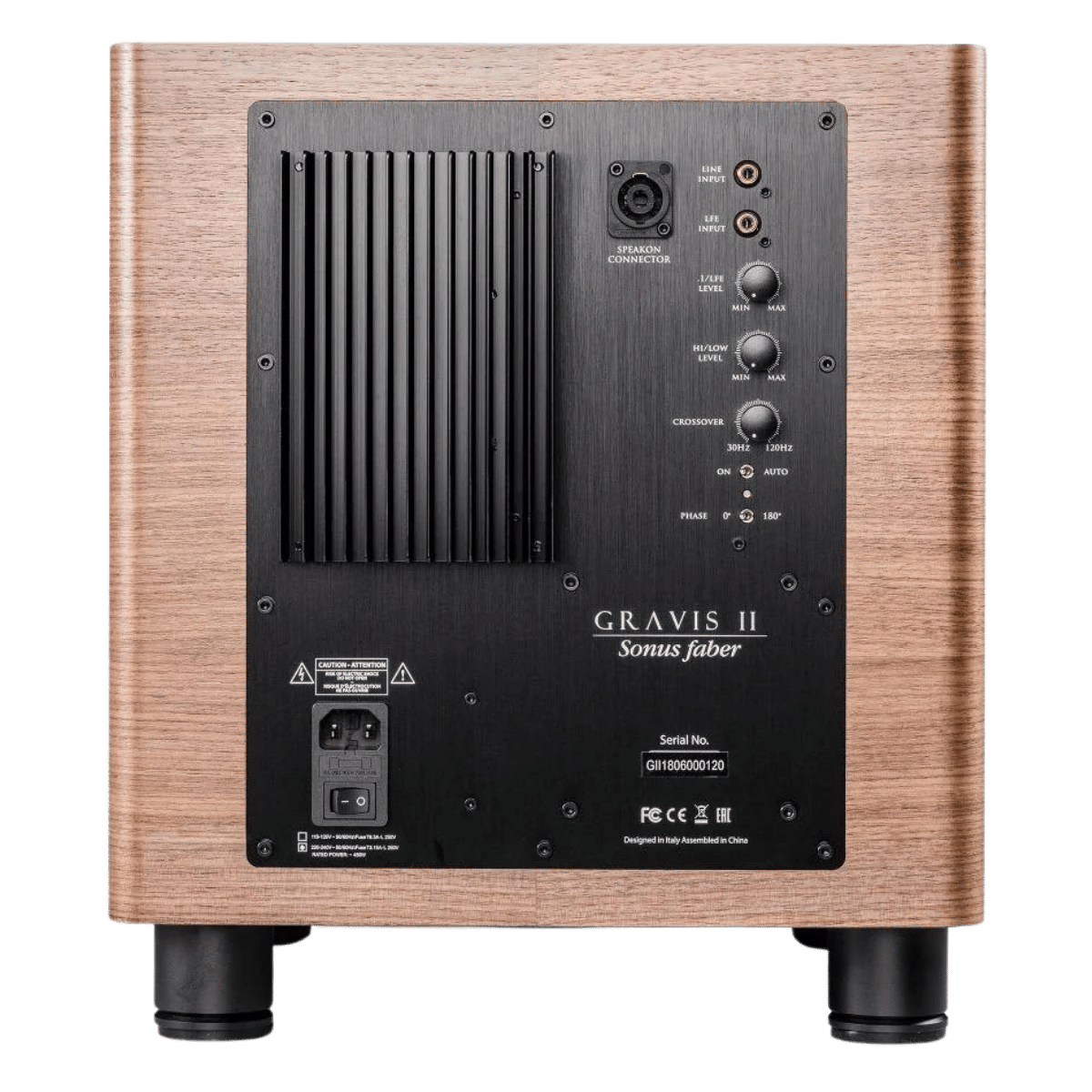

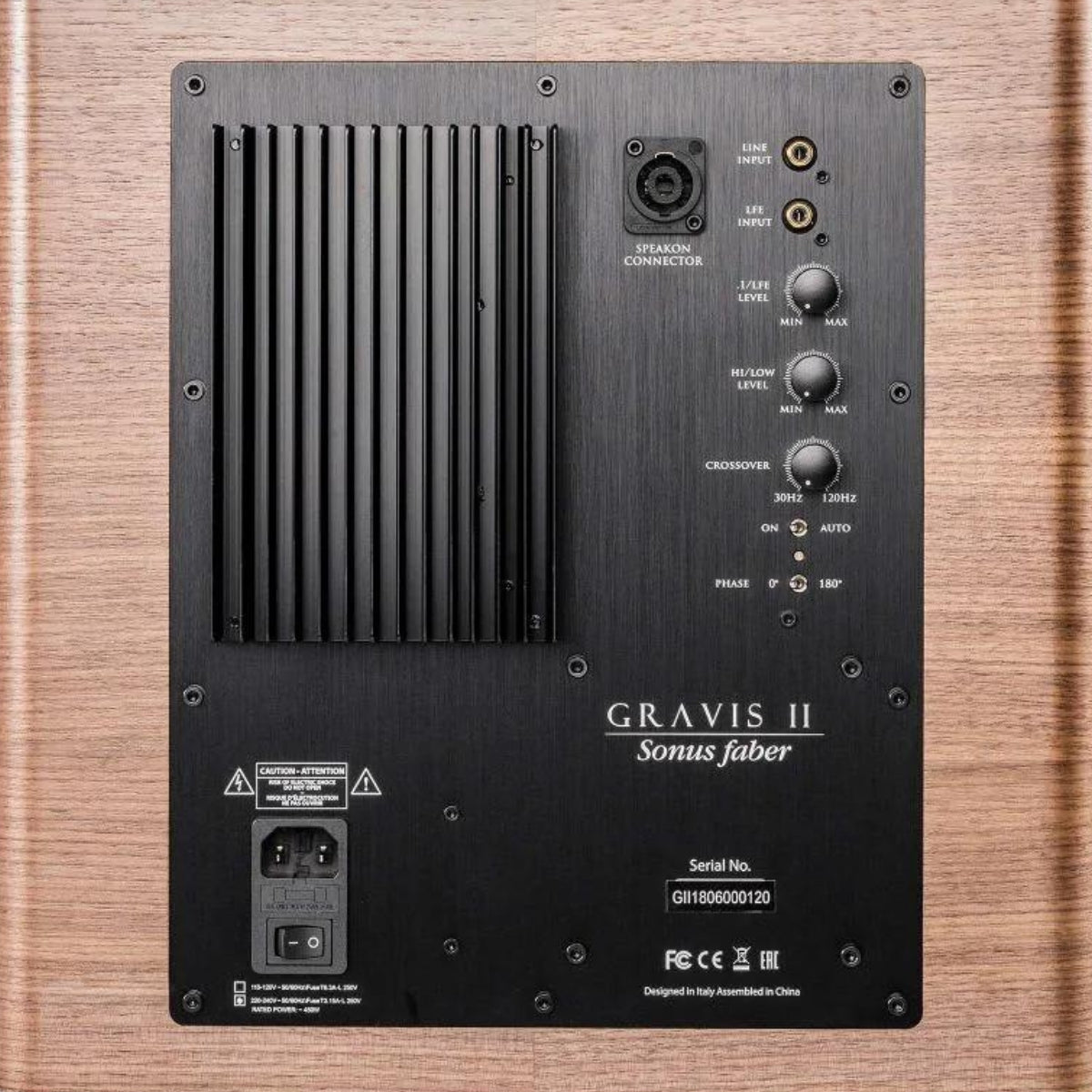

THE REAR PANEL
