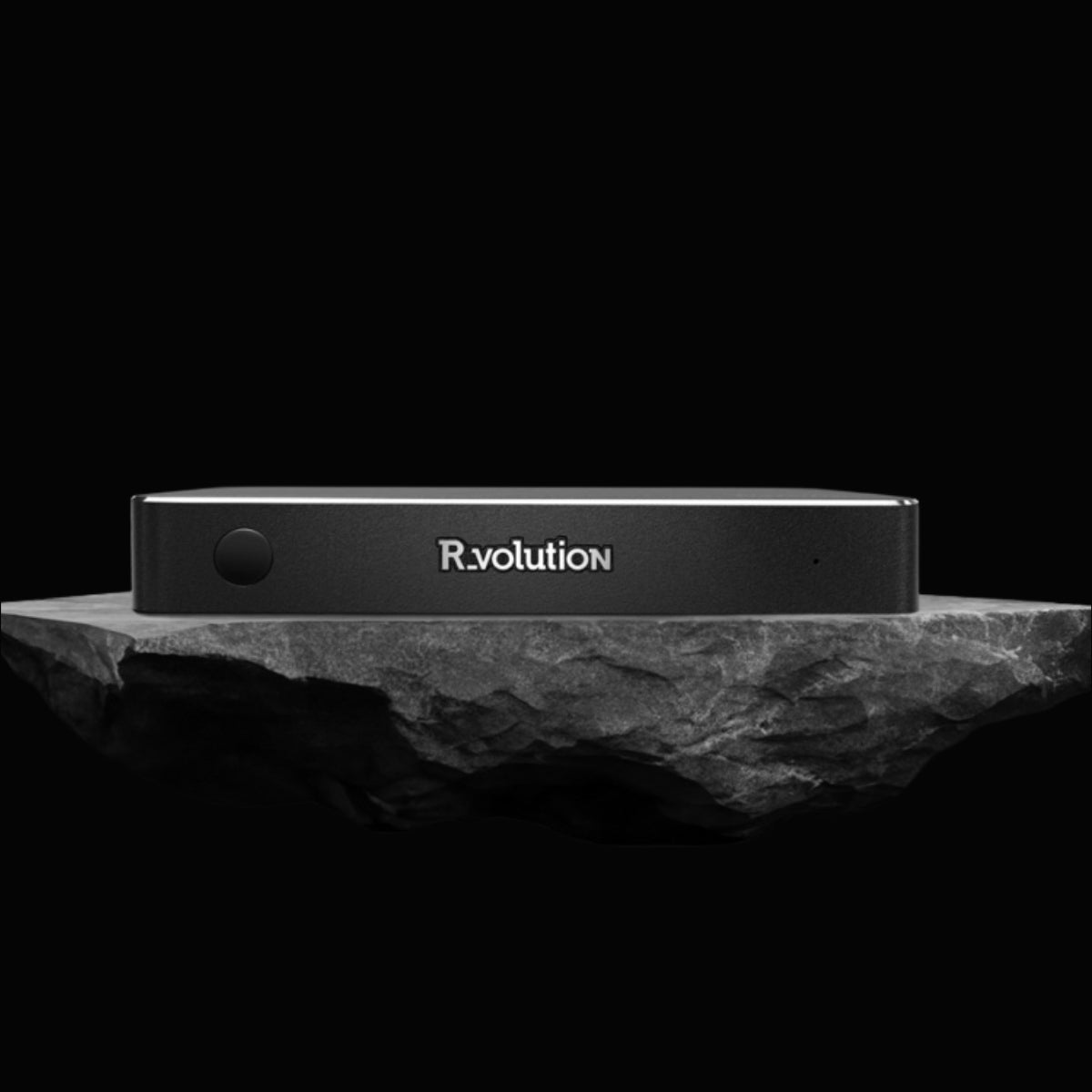

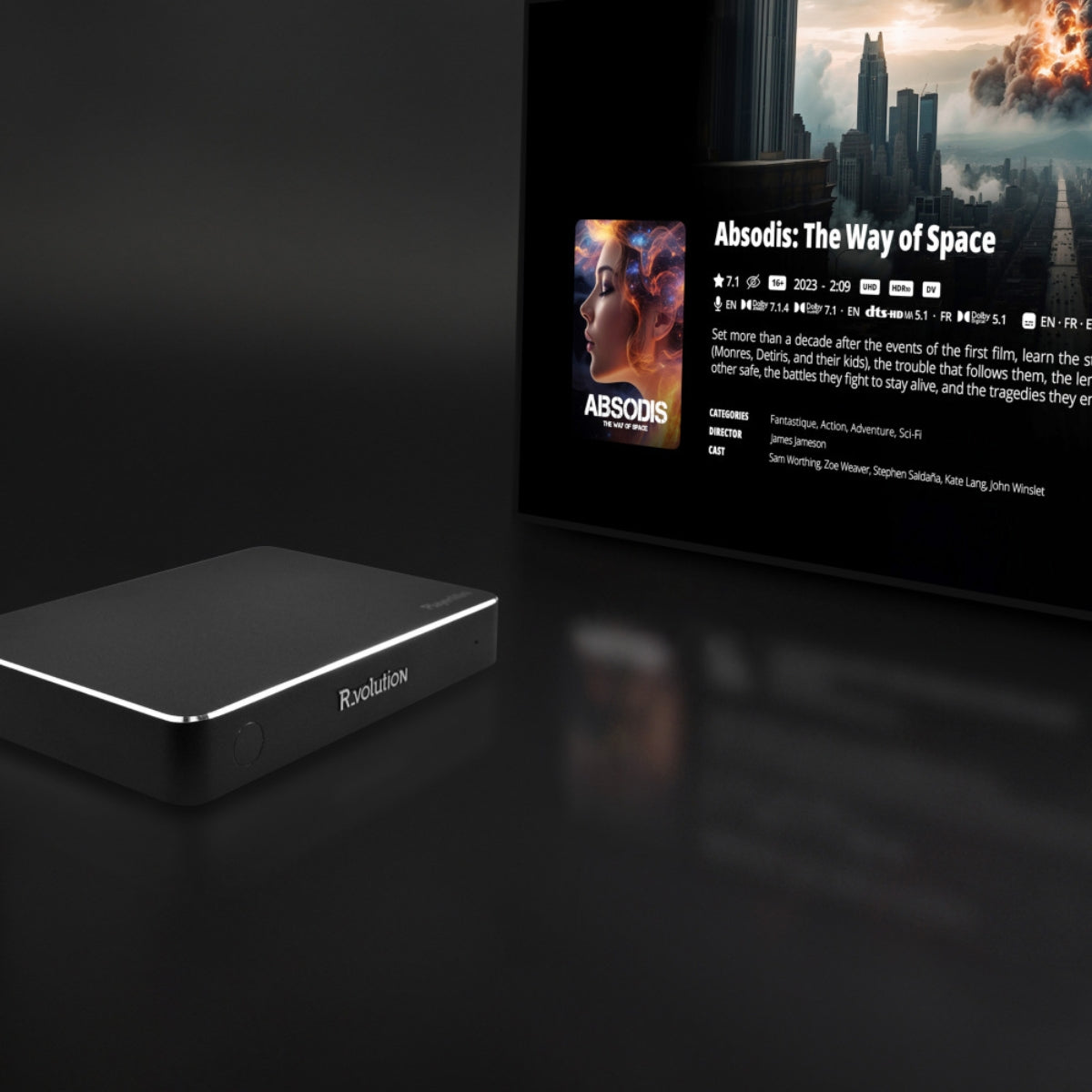

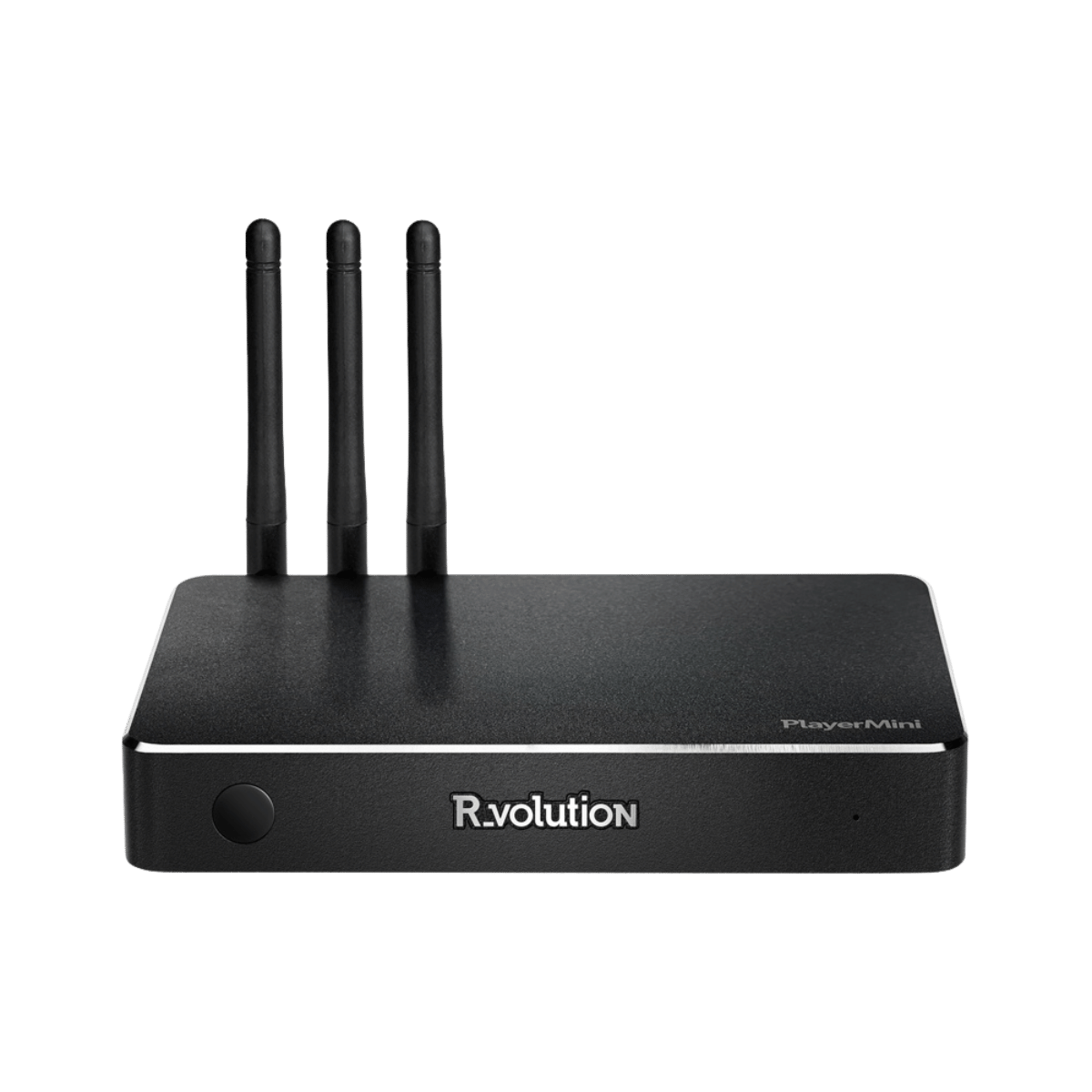

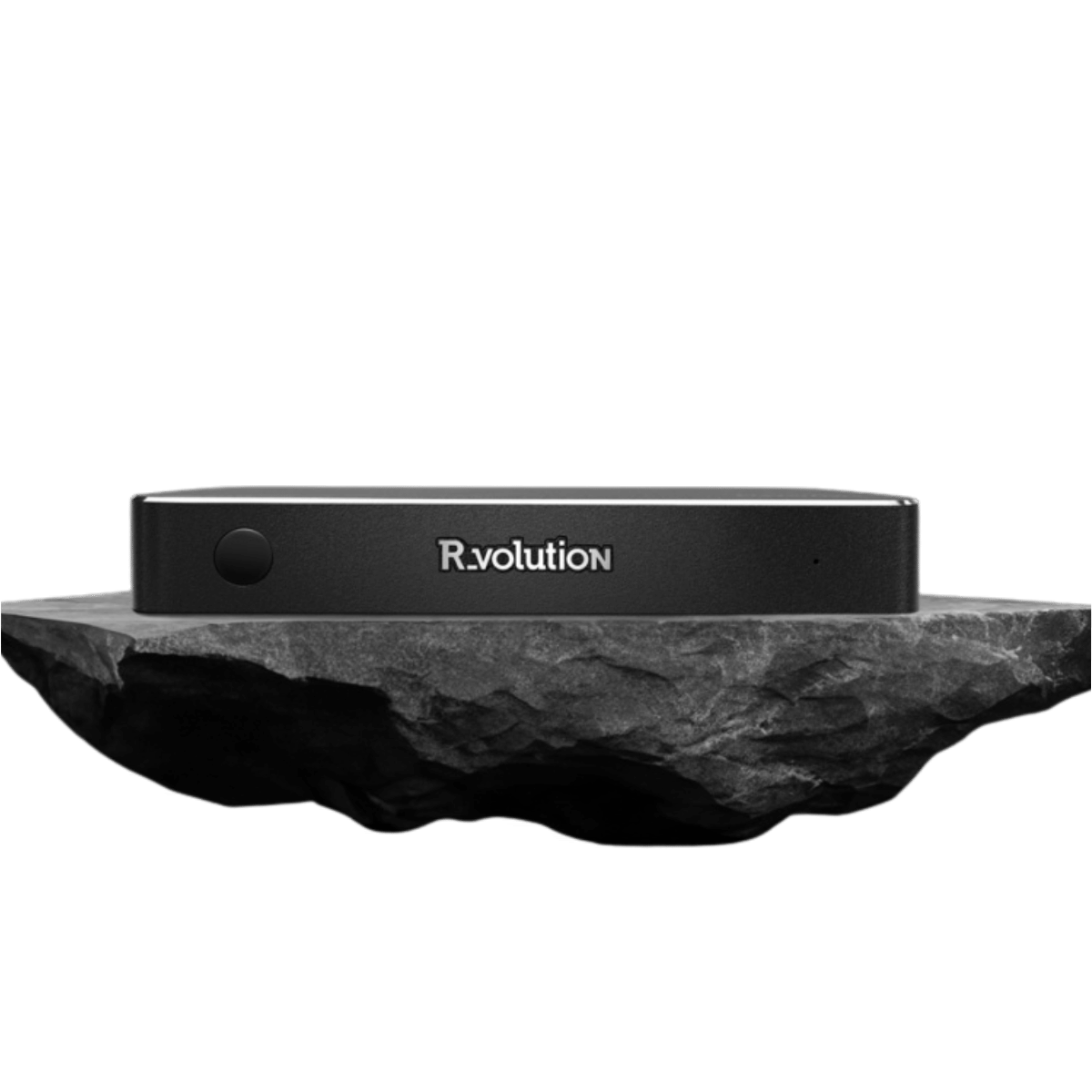

R_volution Player One Mini Compact 4K Ultra HD Media Player
Specifications
Chipset | Amlogic S905X4-K |
CPU | 2.0 GHz ARM Cortex-A55 (4-core) |
GPU | Mali-G31 MP2 |
Operating System | Linux + Android 11 |
DSP | Video and Audio DSP with hardware acceleration. Native hardware 10-bit YUV support. Hardware performance optimizations for R_video UI |
Memory | 1MB L2 cache, 4GB RAM, 32GB ROM eMMC NAN |

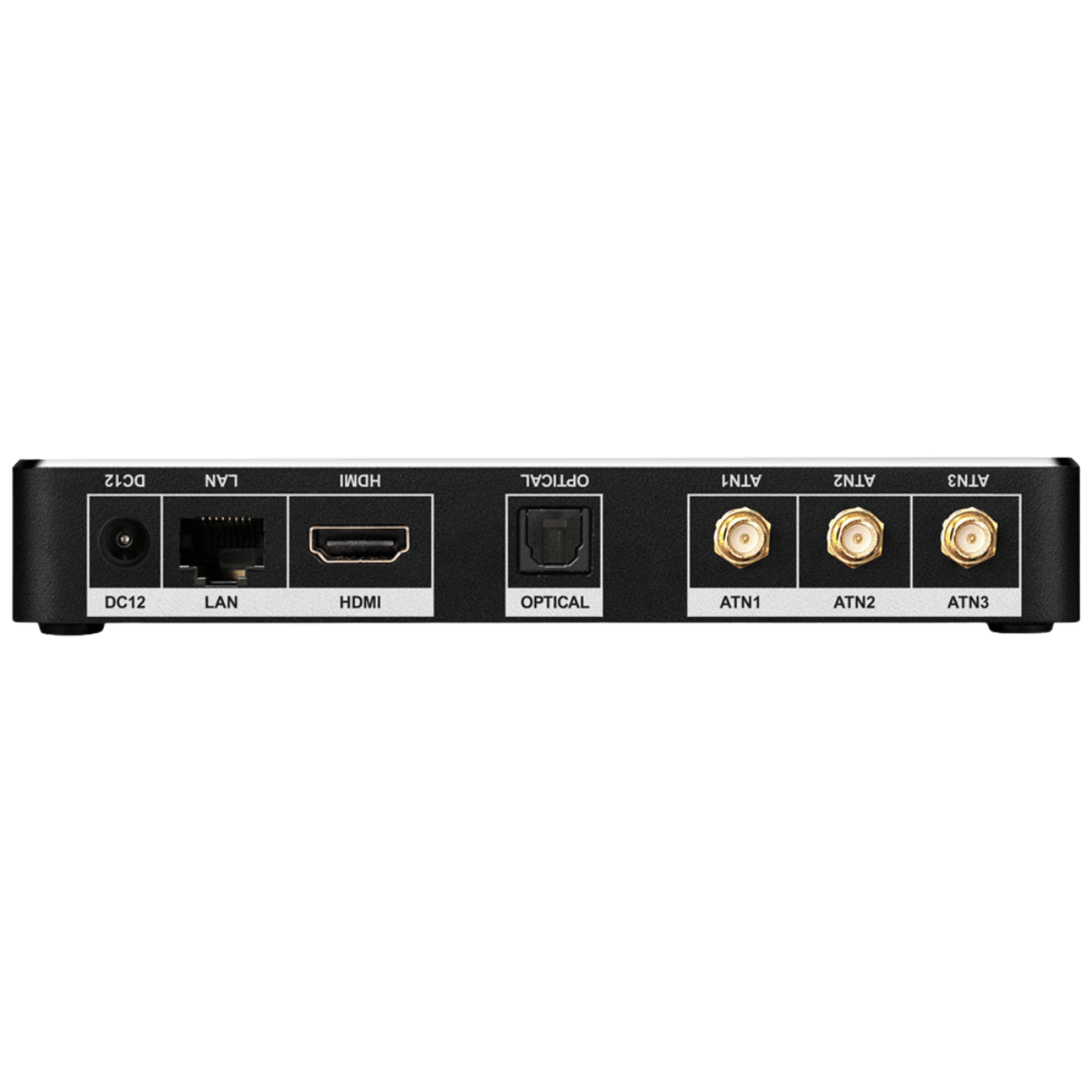

Connectors | HDMI Audio Video 2.1a up to 4K 60p HDR (HDCP 2.2, CEC, Deep Color, 12-bit, xvYCC), 1x USB 2.0, 1x USB 3.0, S/PDIF optical audio output (TO-slink), Ethernet Gigabit 10/100/1000 Gb/s, Wi-Fi with 2 gold-plated removable antennas, RF with dedicated antenna, DC 12V input, power LED |

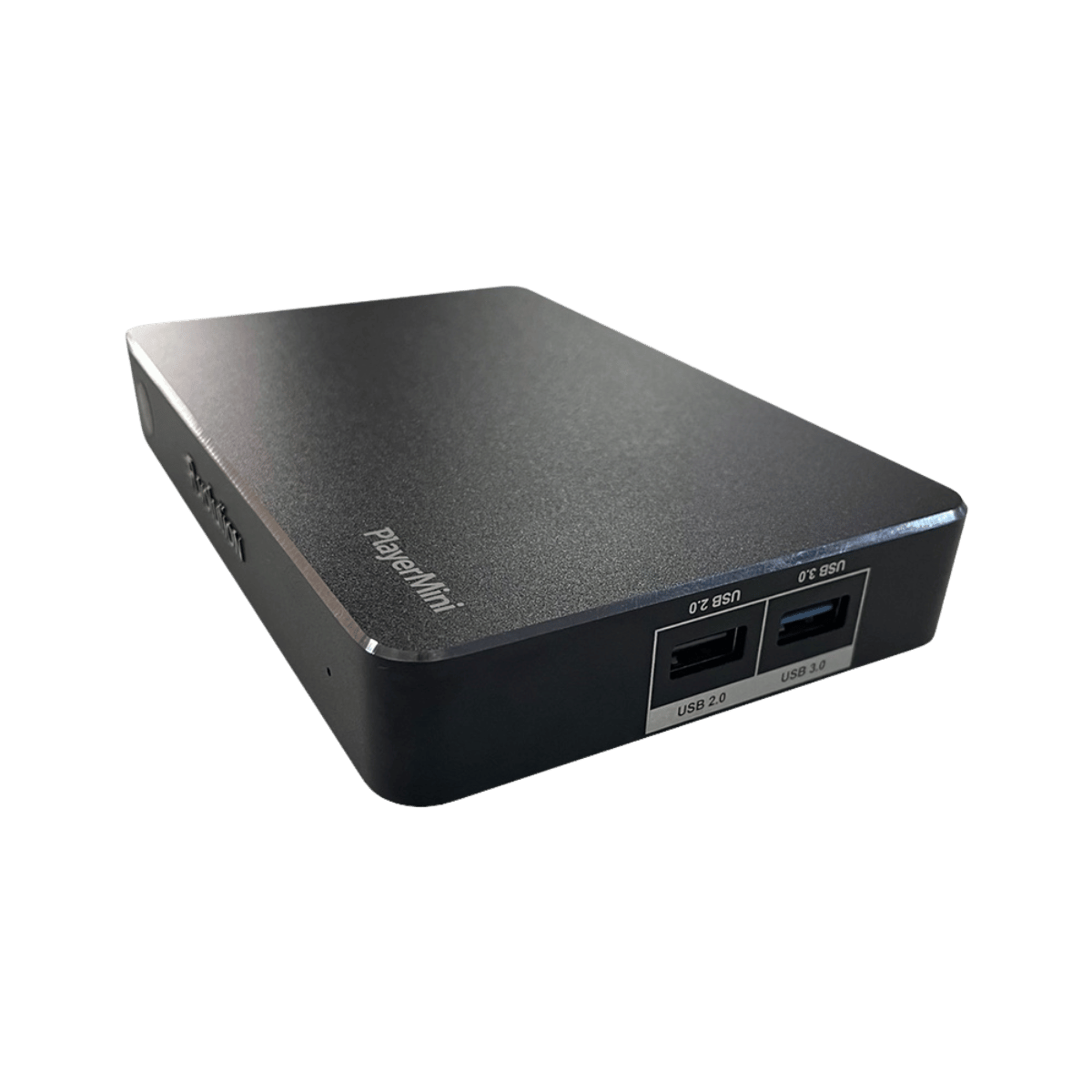

USB Ports | Easily connect external hard drives up to 32TB using the 2 USB ports |
Media Sources | External HDD (USB), USB devices (USB flash drive, USB card reader, etc), PC and NAS in local network (SMB 2), other Internet and local network media sources. External multi-bay USB storage enclosures supported |
Easy and Fast File Transfers | Up to 90 MB/s via SATA and USB 3.0 and Ethernet |
SMB Client/Server | Direct access from another R_volution Player / computer through your local network. Samba Client up to SMB 2. R_share technology |
Video Codecs | HEVC, H.265, x265 (up to Main10 Level 6.1 High 60p in 4K UHD), AV1 (up to 4K UHD 60p), AVC, MPEG, MPEG-2, MPEG-4, VC-1, H.264/x.264 (up to 60p in Full HD and 24p/20 Mbps in 4K UHD), FLV, XVID, DIVX (3/4/5/6), RealVideo8/9/10, VP9 Profile 2 (up to 4K 60p and HDR) ; ultra high bitrate support up to 300 Mbps |
Video File Formats | HD ISO, BD ISO, BDMV, MKV, MPEG-TS, MPEG-PS, MPEG, MPE, MPG, TS, TP, M2TS, VOB, ASF, AVI, VC-1, MOV, MP4, QT, WebM, DVD-ISO, VIDEO_TS, RMVB, RM, DAT, VOB, FLV, DAT, WMV, AVCHD, 3D SbS/T&B |
Dolby Vision support | UHD ISO, BDMV, MKV, MPEG-TS, TS, M2TS, MP4. Full support of Dolby Vision Profiles P5, P7 MEL, P7 FEL and P8 |
AV1 video codec support | Get up to 50% video quality improvement compared to HEVC codec. AV1 requires up to 50% lesser bitrate for the same video quality |
Widevine L1 DRM | Watch premium online video services in 1080p and UHD. Security Level 1 (L1) is a complete processing performed in a Trusted Execution Environment (TEE). This level refers to the highest level of DRM (hardware DRM) and let R_volution Player to stream premium video services at resolutions up to UHD quality. Level 2 cannot stream videos higher than 480p |
Video Output Flexibility | Output video in any resolution and format from SD to 1080p and 4K Ultra HD (3840×2160). Up to 4K 60p. Display your movies in true 24p (23,976 Hz ouput) |
Audio Codecs | AC-3, E-AC3, AC-4, DTS, DTS-WAV, MPEG, MPGA, MP3, ALAC (Apple lossless), APE (Monkey's Audio), Apple CAF, M4A, M4A, AIFF, WAV, WavPack, VSELP, FLAC, AAC, AAC-LC, HEAAC, HE-AAC v2, AMR-NB, OGG (Ogg/Vorbis), RA_COOK, LPCM, PCM, ADPCM, FLA; lossless and audiophiles formats support (up to 32-bit / 384 kHz), SACD ISO, SACD DSF, SACD DFF |
SACD (DSD) | Play high-quality Super Audio CD (DSD) music files in all popular formats (ISO, DFF, DSF), including stereo and multichannel files, as well as files using DST compression. Stereo and multichannel DSD files can be output to HDMI in high-quality multichannel PCM (up to 48 kHz). Stereo DSD files can be output to both HDMI and S/PDIF as stereo PCM (up to 48 kHz) |
Multichannel Audio | Bitstream, decoding and downmix LPCM 2.0/5.1/7.1 (up to 48kHz) of virtually any audio codec such as AAC, MP3, MPGA, WMA, FLAC, WAV, LPCM, OGG, AIFF, DTS, DTS-HD MA, DTS-HD HRA, DTS:X, DTS:X Pro, AC-4, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Dolby MAT, Auro 3D. Playlist file formats : M3U, PLS, CUE |
Subtitle Formats | SRT (Subrip / external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, SUB/IDX external), SMI (Sami), IDX, PGS (UHD ISO, BD ISO, BDMV, M2TS, MKV), DVBSUB (DVB-T, DVB-S, DVB-C) |
Subtitle Options | Option to download subtitles. Forced subtitles support for MKV, ISO and BDMV (simultaneous display of multiple subtitles not supported). Customization of sync, size, color and encoding. Changing the vertical position of subtitles, including on Blu-ray (PGS) subtitles. Multiple external subtitles supported. Customization of the default subtitles |
Photo File Formats | JPEG (hardware decoding), PNG, BMP and GIF. Slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle |
Supported Formatting | FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write) |
Ethernet | 10/100/1000 Mb/s |
Wi-Fi | Dual Band 2.4+5 GHz IEEE 802.11ax (Wi-Fi 6), two external Wi-Fi antennas (removable and gold-plated connector) |
Android 11 | Install and enjoy additional apps via GooglePlay or APK files |
Warning! Some Android apps are not suitable for use with the remote control. In this case, use a connected computer mouse or an AirMouse (not supplied) | |
Network Playback | Special optimisation of the network, guaranteeing better performances of the local network playback no matter which type of media thanks to SMB protocol (HEVC UHD files included) via Gigabit Ethernet or Ethernet 10/100 |
Universal RC | Integrate seamlessly into smart home installations via IR and IP codes |
Dimensions | (W × H × D) : 6.30 × 0.95 × 4.64in (without carton), 16.0 × 2.4 × 11.8 (without carton), 9.44 × 2.48 × 6.29in (with carton), 24.0 × 6.3 × 16.0 cm (with carton) |
Weight | GW: 0.9 Kg / 1.98lbs (with carton), NW: 0.4 Kg / 8.81lbs (without carton) |
Limited Warranty | 2 years |
Certification | RoHS, CE, FCC |
Country of Origin | Design: France, Software: France, Production: China |
EAN | 3760115010147 |
TARIC Number | 8521900090 |
Operating Temperature | 10~30°C |
Operating Humidity | 30%~70% |
Consumption | Max consumption: 42W, Typical: 39W (Without HDD), High power standby: 9W, Low power standby: 0.02W |
Rack Mount Kit | In option |
Power DC Adapter | DC 100-240V - 12V / ≥3A |

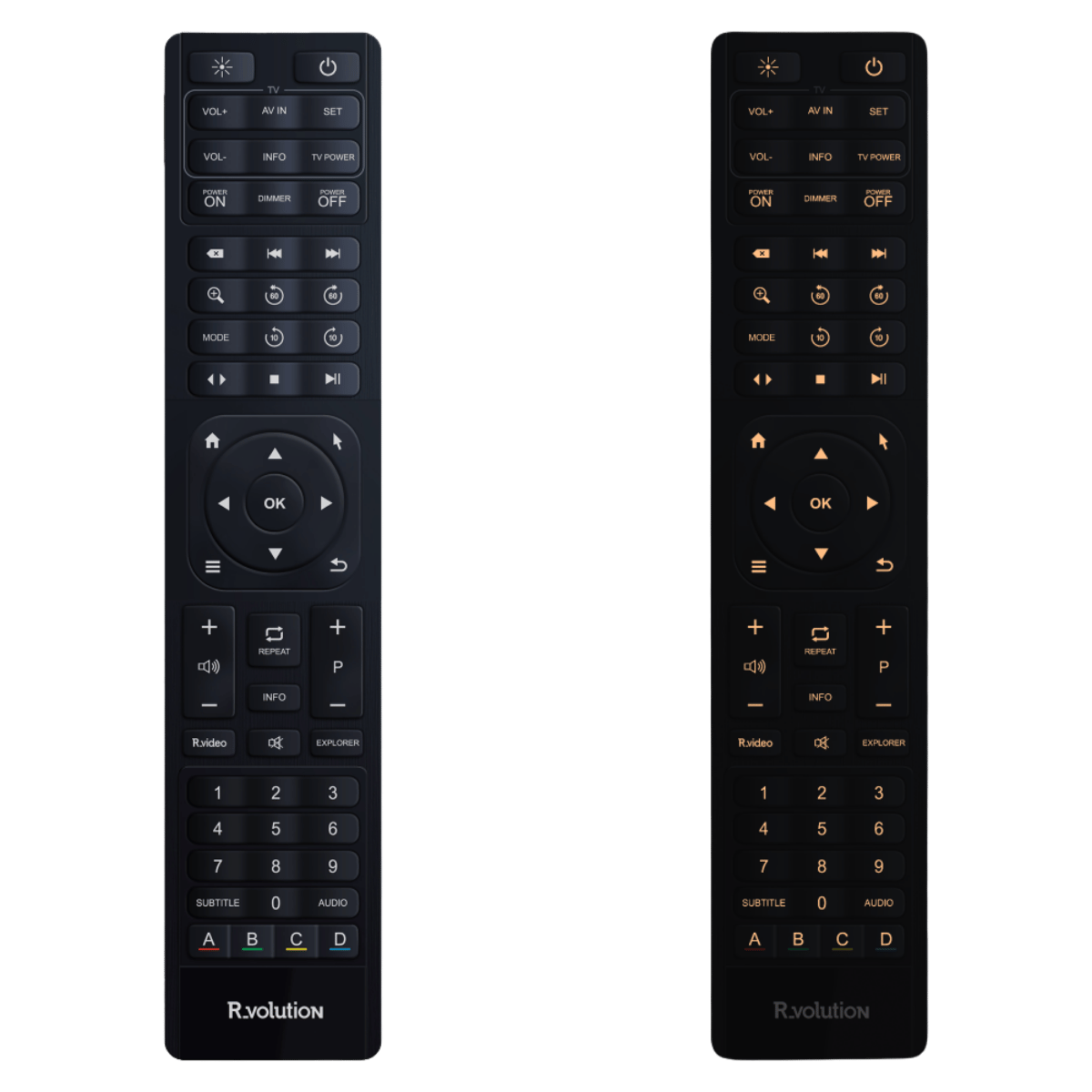

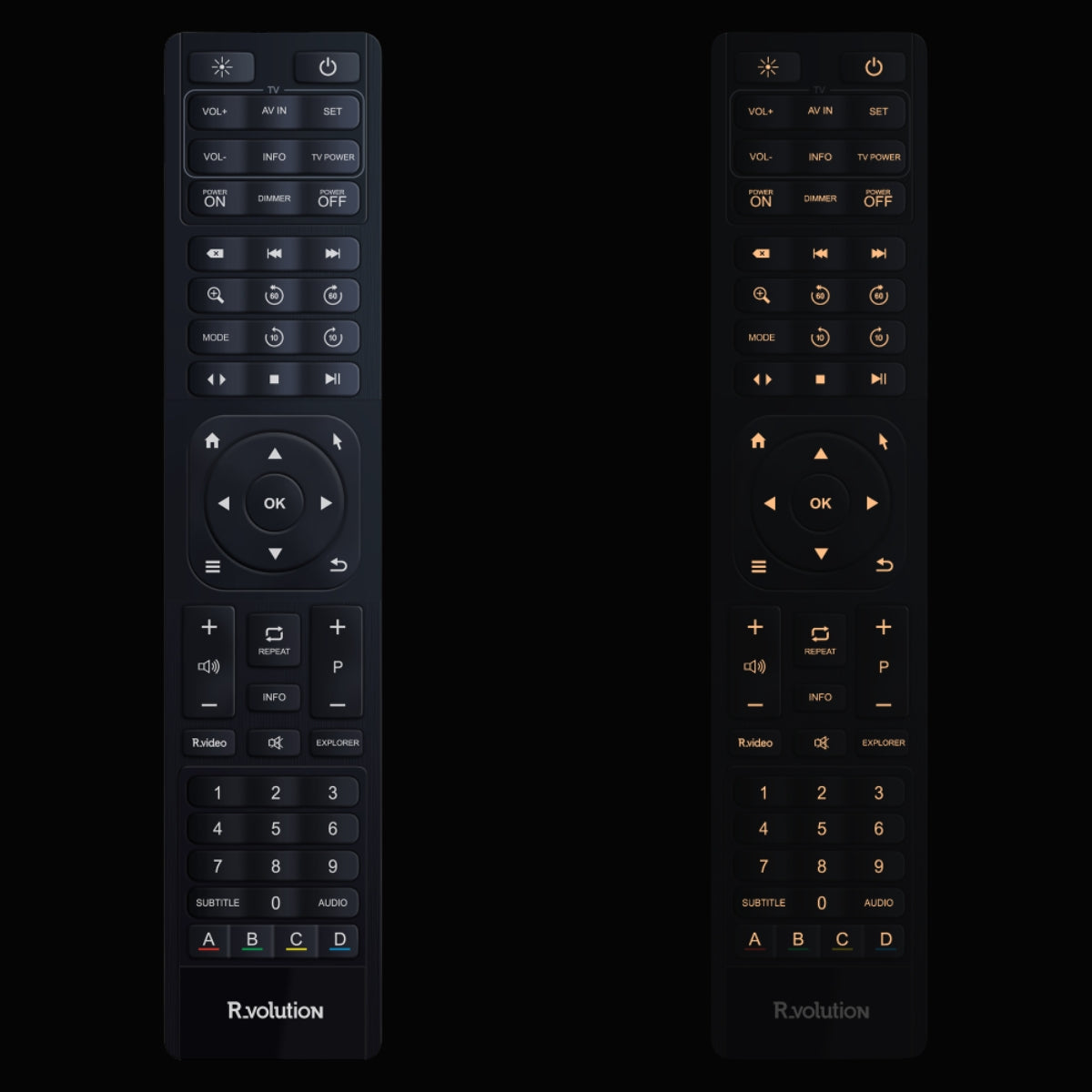

Accessories | High Quality Backlite IR Remote Control |
Wi-Fi Antennas x2 | |
RF Antenna | |
Power DC adapter | |
User card |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

TELL ME MORE ABOUT THE
R_volution Player One Mini Compact 4K Ultra HD Media Player

Exceptional 4K UHD Video Quality

Premium Audio Experience

Powerful & Compact Multiroom Streaming

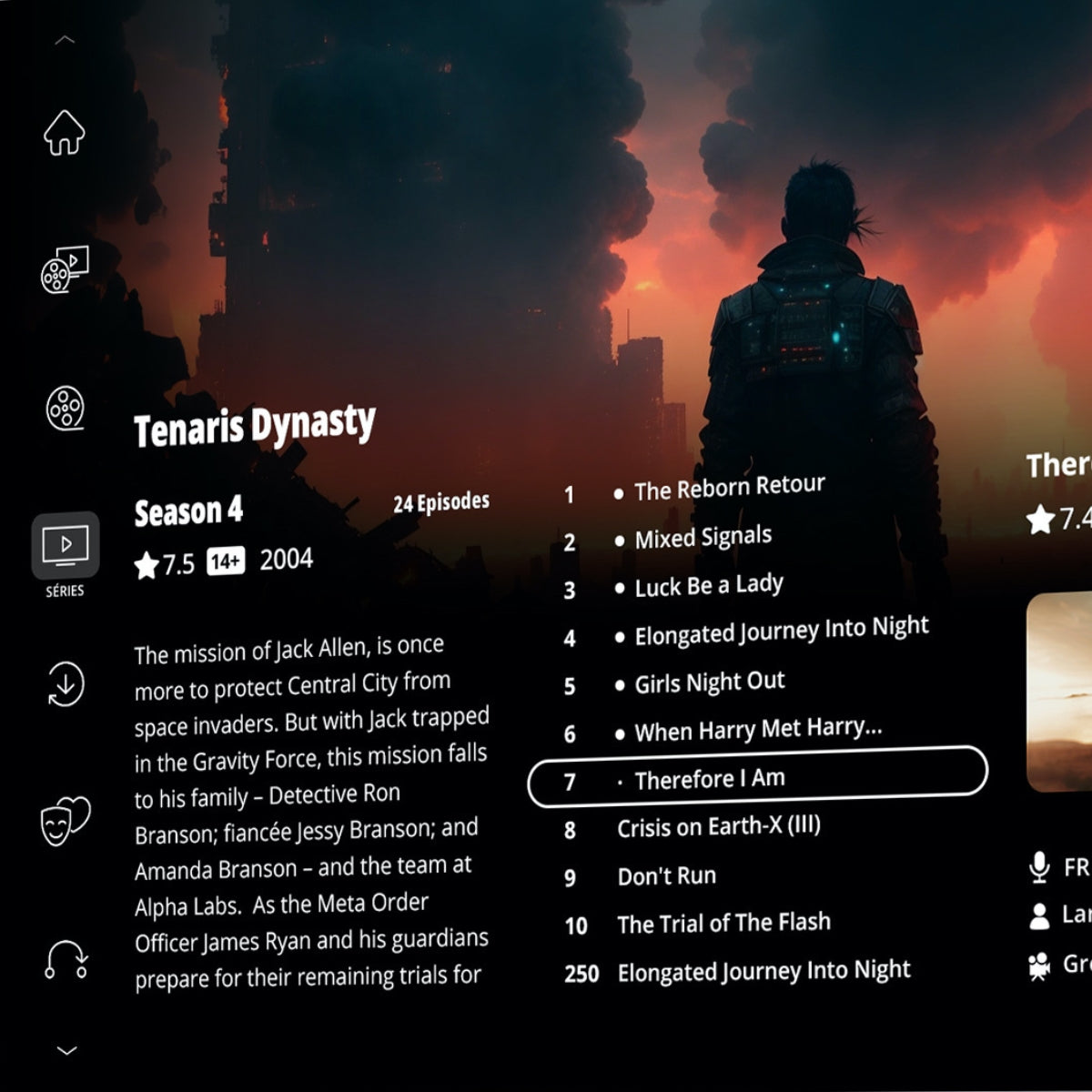

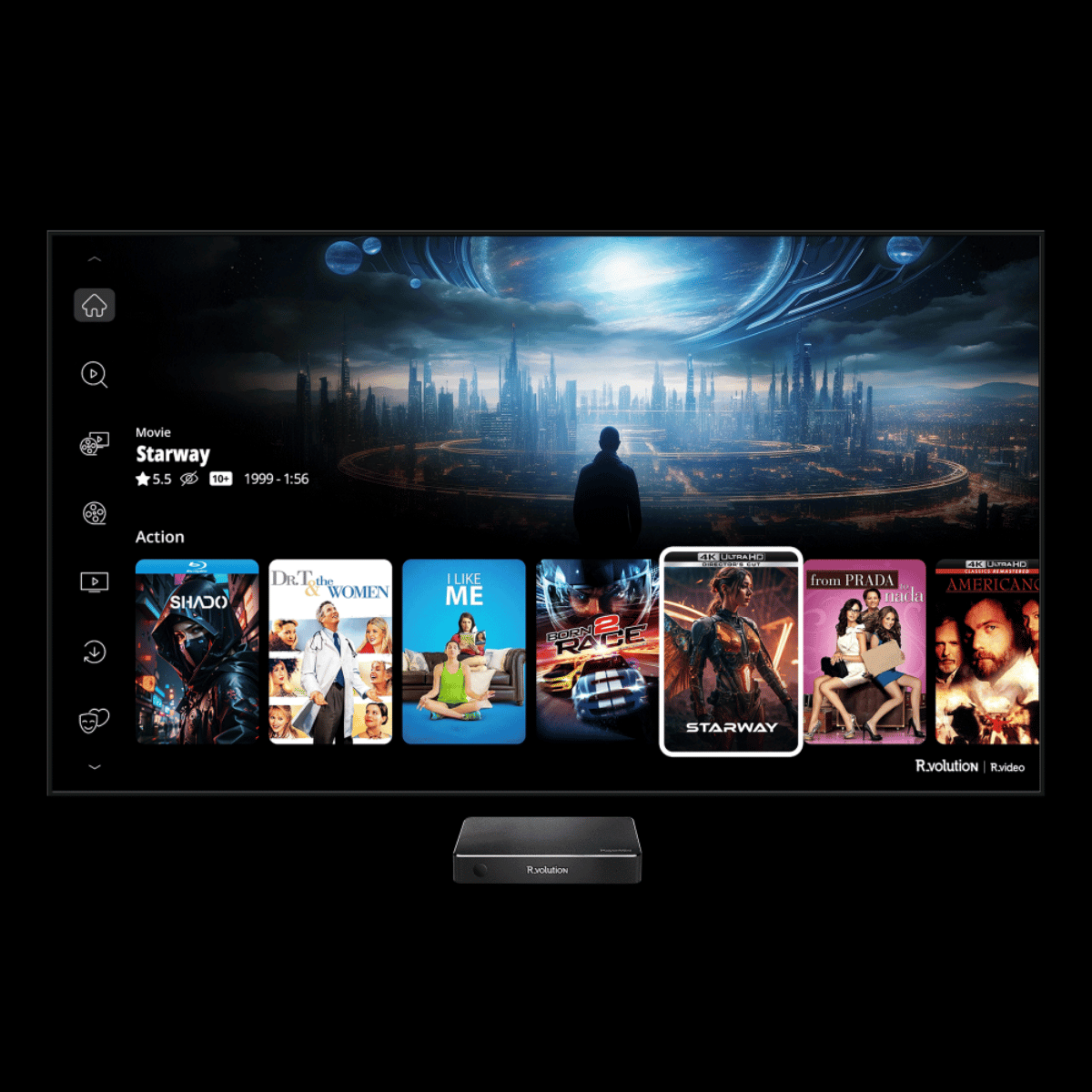

Intelligent R_video Media Center
