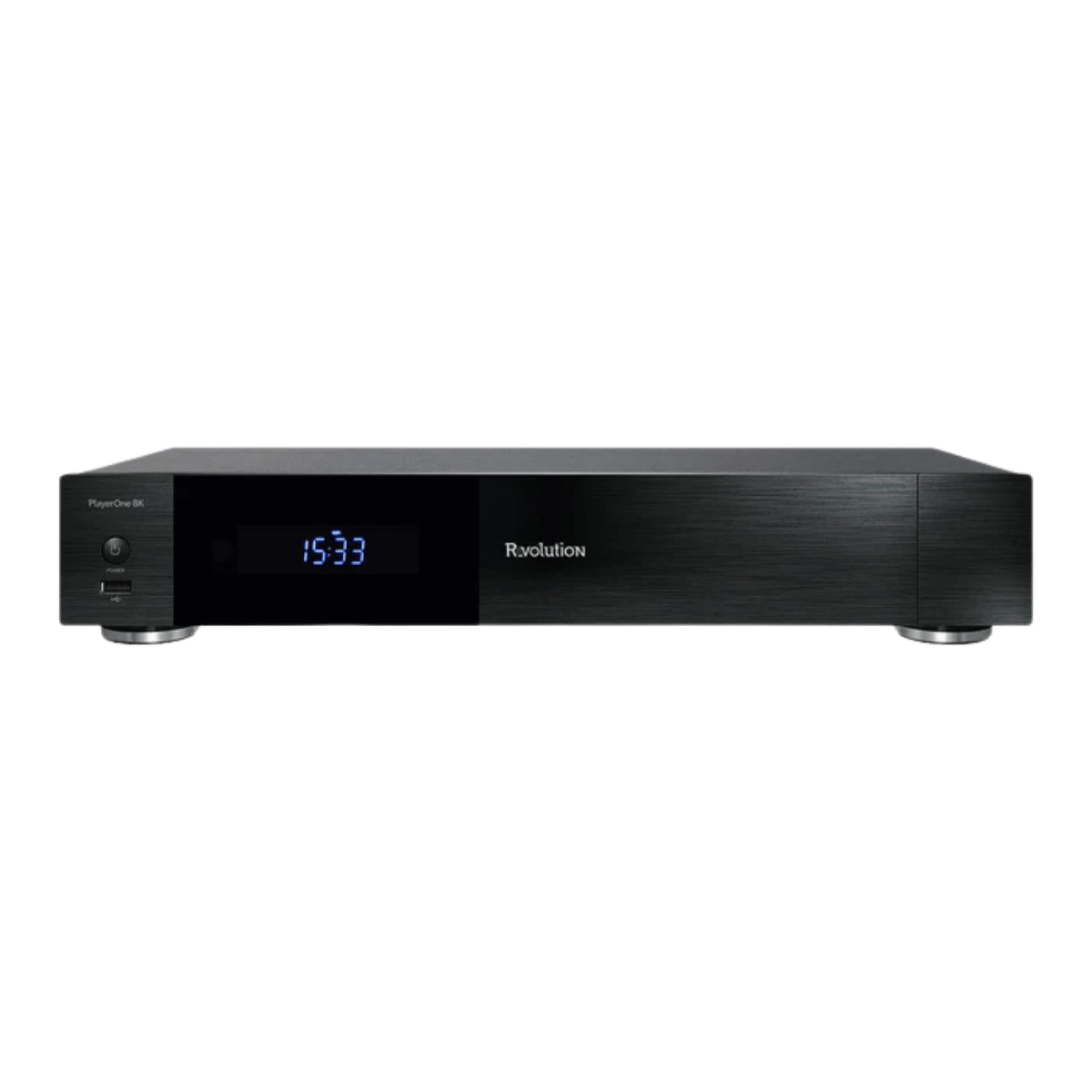

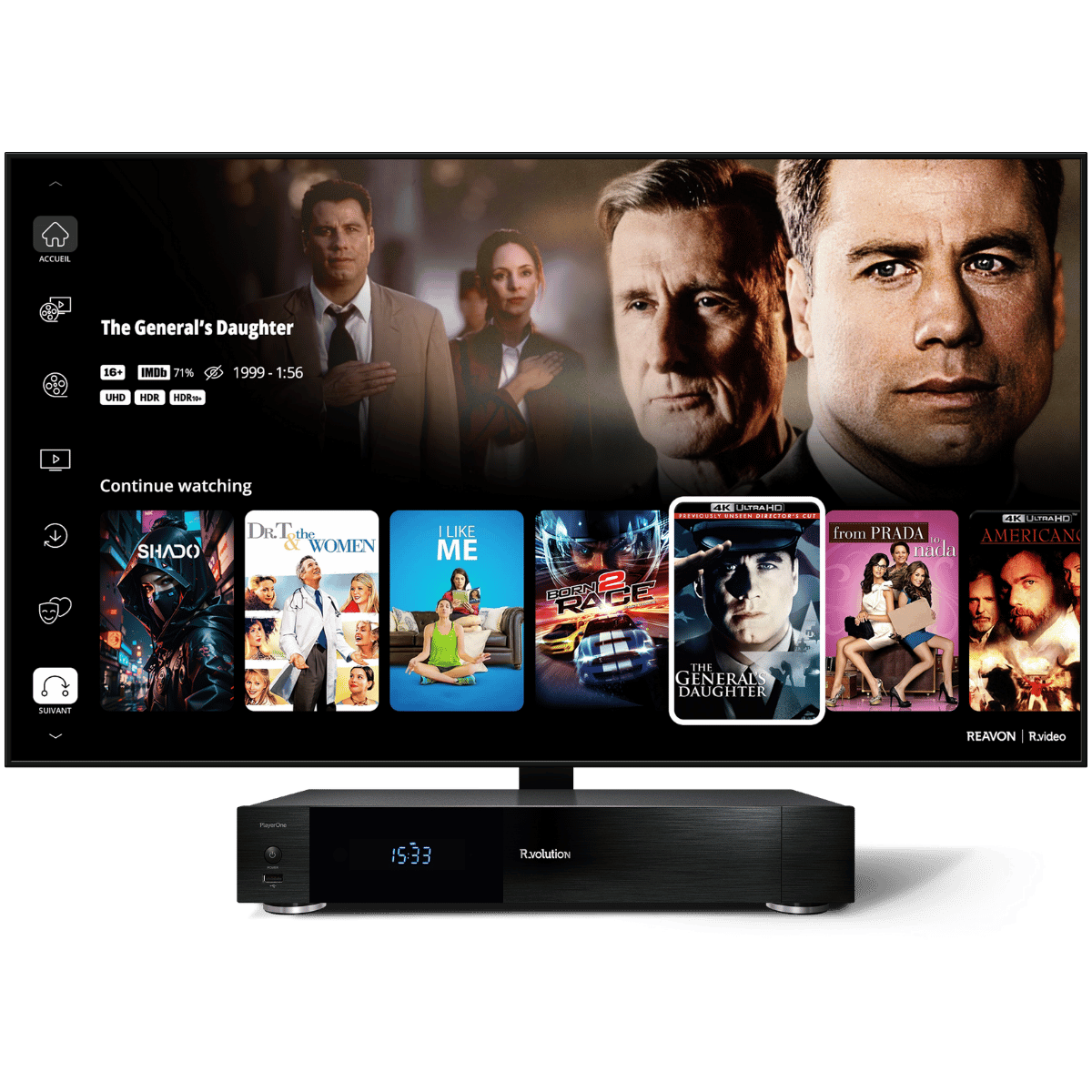

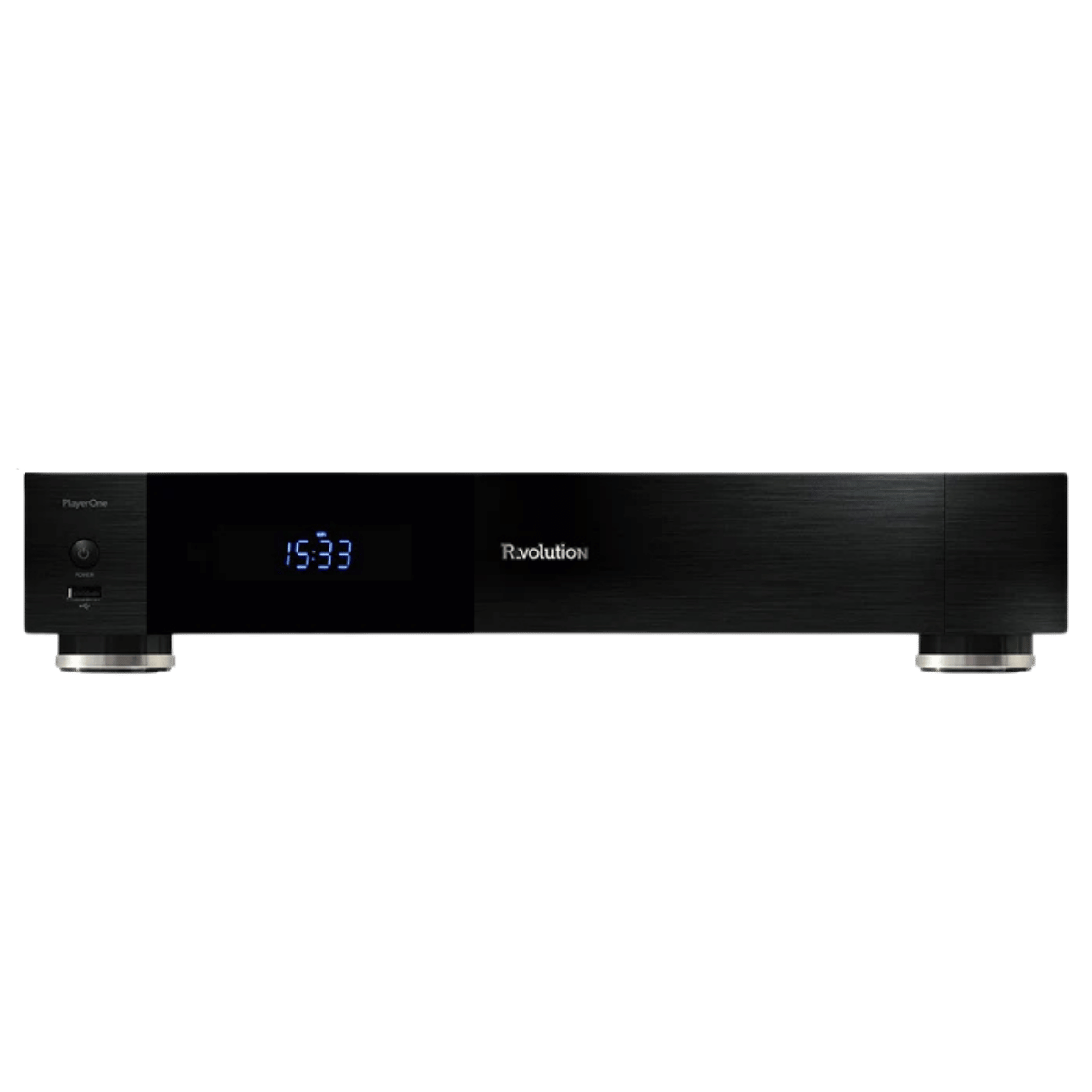

R_volution Player One 4K Ultra HD Media Player
Specifications
Chipset | Realtek RTD1619DR |
CPU | ARM Cortex-A55 (6-core). +77% faster than 4-core ARM A53 used in the previous generation media players |
GPU | ARM Mali-G51 MP3. +50% faster than Mali T-820 used in the previous generation media players |
Operating System | Linux + Android 9 |
DSP | Video and Audio DSP with hardware acceleration. Native hardware 10-bit YUV support. Hardware performance optimizations for R_video UI |
Memory | 1MB L2 cache, 4GB RAM, 32GB ROM eMMC NAN |

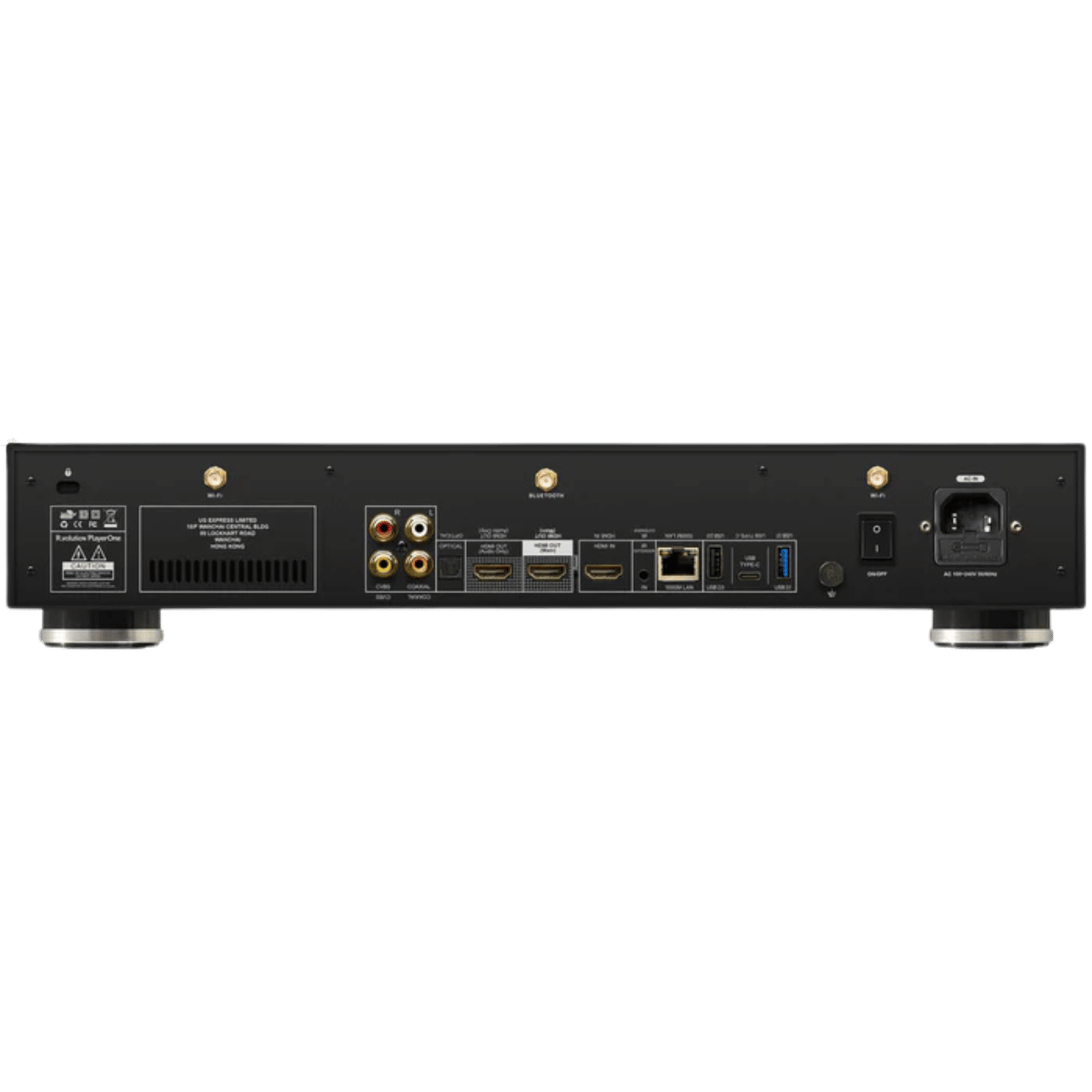

Connectors | Gold-plated HDMI Audio Video 2.0b (HDCP 2.2, CEC, Deep Color, 12-bit, xvYCC, MHL 3.0), HDMI Audio Only 1.4a, 2x USB 2.0, 1x USB 3.1, 1x USB Type-C, gold-plated CVBS video analog output (both analog and digital video outputs are active at the same time), gold-plated audio analog RCA (both analog and digital video outputs are active at the same time), gold-plated coaxial and S/PDIF optical audio output (TO-slink), Ethernet Gigabit 10/100/1000 Gb/s, Wi-Fi 2.4 & 5 GHz with 2 gold-plated removable antennas, Bluetooth with dedicated antenna, IR input for IR extender, AC input, AC button On/Off, power LED and multi-segment LED display HH:MM:SS controlled with dimmer option |

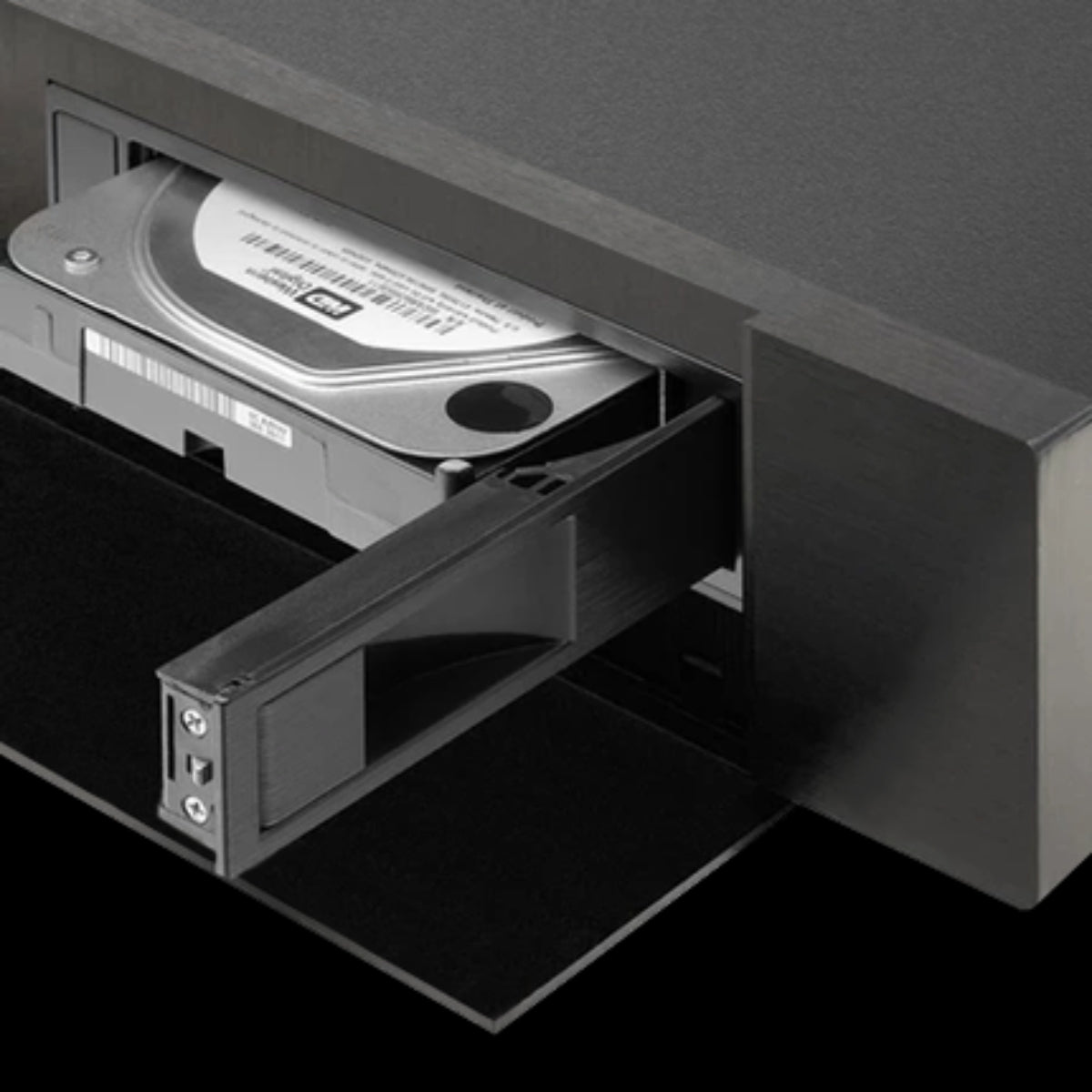

HDD Rack Enclosure Option | Easily and quickly insert and exchange internal 3.5'' SATA hard drives up to 16 TB (18 and 20 TB are supported only if you are using 2 partitions) |
Media Sources | External HDD (USB), USB devices (USB flash drive, USB card reader, etc), PC and NAS in local network (SMB 2), other Internet and local network media sources. External multi-bay USB storage enclosures supported |
Easy and Fast File Transfers | up to 90 MB/s via SATA and USB 3.1 / 115 MB/s via Ethernet |
SMB Client/Server | Direct access from another R_volution Player / computer through your local network. Samba Client up to SMB 2. R_share technology |
Video Codecs | HEVC, H.265, x265 (up to Main10 Level 6.1 High 60p in 4K UHD), MVC, AVC, MPEG-2, MPEG-4, VC-1, H.264/x.264 (up to 60p in Full HD and 24p/20 Mbps in 4K UHD), FLV, AVS, XVID, DIVX (from version 4), Sorenson Spark L70, VP9 Profile 2 (up to 4K 60p and HDR) ; ultra high bitrate support (up to 400 Mbit/s in HEVC 4K UHD) |
Video File Formats | UHD ISO, 3D BD ISO, BD ISO, BDMV, MKV, MKV 3D, MK3D, MPEG-TS, MPEG-PS, MPEG, MPE, MPG, TS, TP, M2TS, VOB, AVI, MOV, MP4, QT, WebM, DVD-ISO, VIDEO_TS, RMVB, RM, DAT, VOB, 3GP, FLV, DAT, AVCHD 2.0 (AVCHD 3D, AVHD Progressive) |
Dolby Vision support | ISO, BDMV, MKV, MPEG-TS, TS, M2TS, MP4 |
Widevine L1 DRM | Watch premium online video services in 1080p and UHD. Security Level 1 (L1) is a complete processing performed in a Trusted Execution Environment (TEE). This level refers to the highest level of DRM (hardware DRM) and let R_volution Player to stream premium video services at resolutions up to UHD quality. Level 2 cannot stream videos higher than 480p |
Video Output Flexibility | Output video in any resolution and format from SD to 1080p, Ultra HD (3840x2160) and 4K (4096x2160). Up to 4K 60p. Display your movies in true 24p (23,976 Hz ouput) |
Audio / Video Sync | Adjust audio / video sync forward / backward (in ms) |
Audio Codecs | AC-3 / Dolby Digital, EAC3, DTS, DTS-WAV, MPEG, MP3, ALAC (Apple lossless), APE (Monkey's Audio), M4A, M4A, AIFF, WAV, WavPack, VSELP, FLAC (2.0 only), AAC, AAC-LC, HEAAC, HE-AAC v2, AMR-NB, OGG (Ogg/Vorbis), RA_COOK, LPCM, PCM, ADPCM, FLA, MQA; lossless and audiophiles formats support (up to 32-bit / 384 kHz), SACD ISO, SACD DSF, SACD DFF |
SACD (DSD) | Play top quality Super Audio CD (DSD) music files in all any popular formats (ISO, DFF, DSF), including both stereo and multichannel files as well as files which use DST compression. Multichannel DSD files can be output to HDMI as high quality multichannel PCM (up to 176.4kHz). Stereo DSD files can be output to HDMI and S/PDIF as high quality stereo PCM (up to 176.4kHz) |
Multichannel home cinema audio | Bitstream, downmix stereo (DTS, DTS-HD MA, DTS-HD HRA, DTS:X, DTS:X Pro, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Auro 3D) |
Playlist file formats | M3U, PLS, CUE |
Subtitle Formats | SRT (Subrip / external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, SUB/IDX external), SMI (Sami), IDX, PGS (UHD ISO, BD ISO, BDMV, M2TS, MKV), DVBSUB (DVB-T, DVB-S, DVB-C) |
Subtitle Options | Subtitle download feature. Forced subtitles support for MKV, ISO and BDMV (simultaneous display of multiple subtites no supported). Customization of sync, size, color and encoding. Changing the vertical position of subtitles, including on Blu-ray (PGS) subtitles. Multiple external subtitles supported. Customization of the default subtitles |
3D Hardware Acceleration | OpenGL |
Photo File Formats | JPEG (hardware decoding), PNG, BMP and GIF. Slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle |
Supported Formatting | FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write) |
Ethernet | 10/100/1000 Mb/s |
Wi-Fi | Dual Band 2.4+5 GHz 802.11b/g/n/ac 2T2R, two external Wi-Fi antennas (gold-plated and removable) |
Bluetooth | BT5.0, separate external Bluetooth antenna |
Android 9.0 | Install and enjoy additional apps via GooglePlay or APK files |
Warning! Some Android apps are not suitable for use with the remote control. In this case, use a connected computer mouse or an AirMouse (not supplied) | |
Network Playback | Special optimisation of the network, guaranteeing better performances of the local network playback no matter which type of media thanks to SMB protocol (HEVC UHD files included) via Gigabit Ethernet or Ethernet 10/100 |
Universal RC | Integrate seamlessly into smart home installations via IR and IP codes |
Dimensions | (W × H × D) |
16,92 × 3,14 × 11,22in (without carton) | |
43.0 × 8 × 28.5 cm (without carton) | |
18,89 × 7,08 × 12,99in (inner carton) | |
48.0 × 18.0 × 33.0 cm (inner carton) | |
19,48 × 7,67 × 13,58in (outer carton) | |
49.5 × 19.5 × 34.5 cm (outer carton) | |
Weight | GW: 7Kg / 15.43 lbs (with carton) |
NW: 6Kg / 13.22 lbs (without carton) | |
Limited Warranty | 2 years |
Certification | RoHS, CE, FCC |
EAN | 3760115010178 |
TARIC Number | 8521900090 |
Operating Temperature | 10~30°C |
Operating Humidity | 30%~70% |
Consumption | Max consumption: 42W |
Typical: 39W (Without HDD) | |
High power standby: 9W | |
Low power standby: 0.02W | |
Rack Mount Kit | In option |
Internal Power Supply | AC 100-240V |
Accessories | High Quality Backlite IR Remote Control |
IR Extender | |
8K HDMI Cable | |
Wi-Fi Antennas x2 | |
RF Antenna | |
Power Cables x4 (EU, US, UK, AU) |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

TELL ME MORE ABOUT THE
R_volution Player One 4K Ultra HD Media Player

Unmatched Picture Quality with Dolby Vision & HDR10+

High-Fidelity Audio for the Ultimate Sound Experience

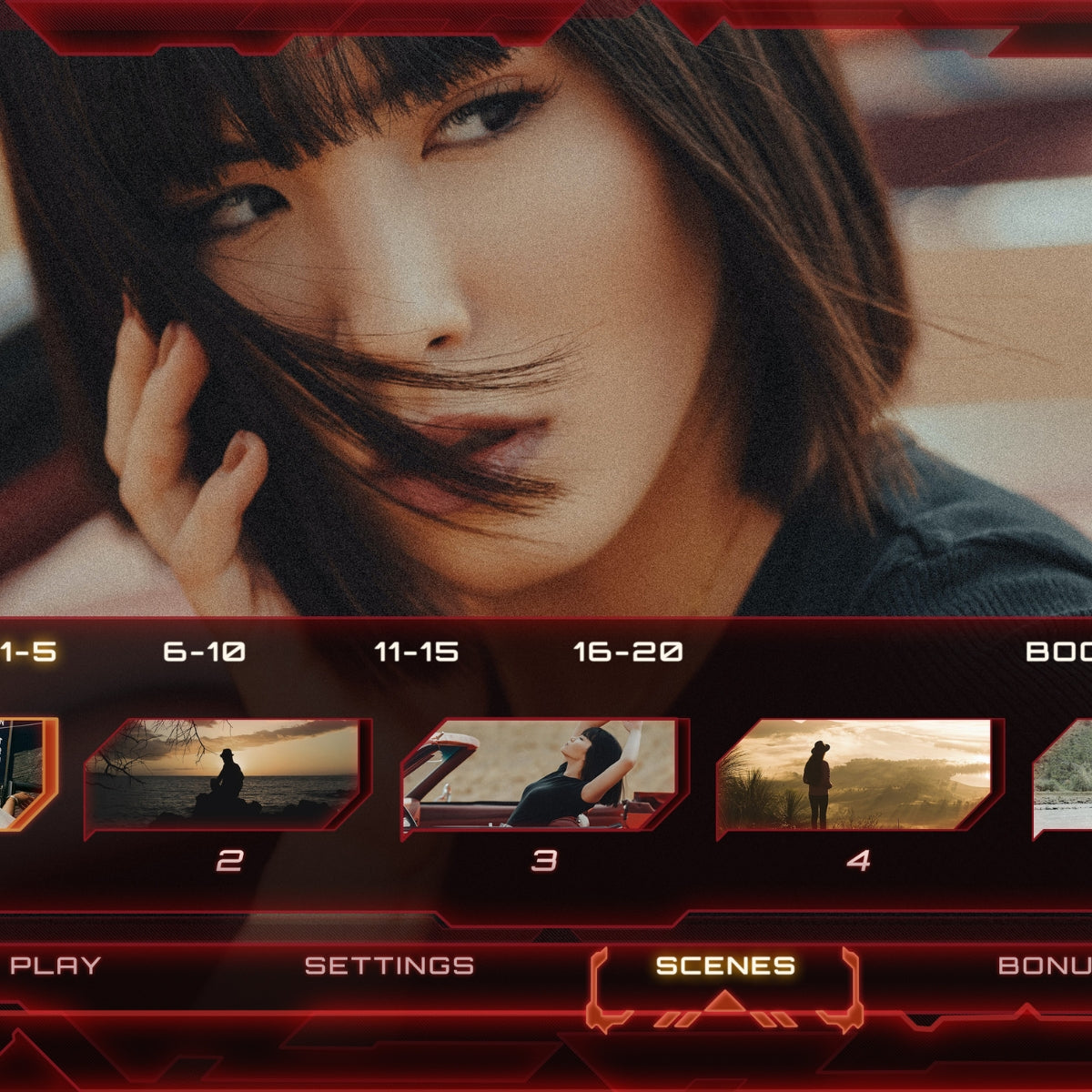

Blu-ray & 4K Ultra HD Disc Menu Support

Massive Storage Capacity & Expandability

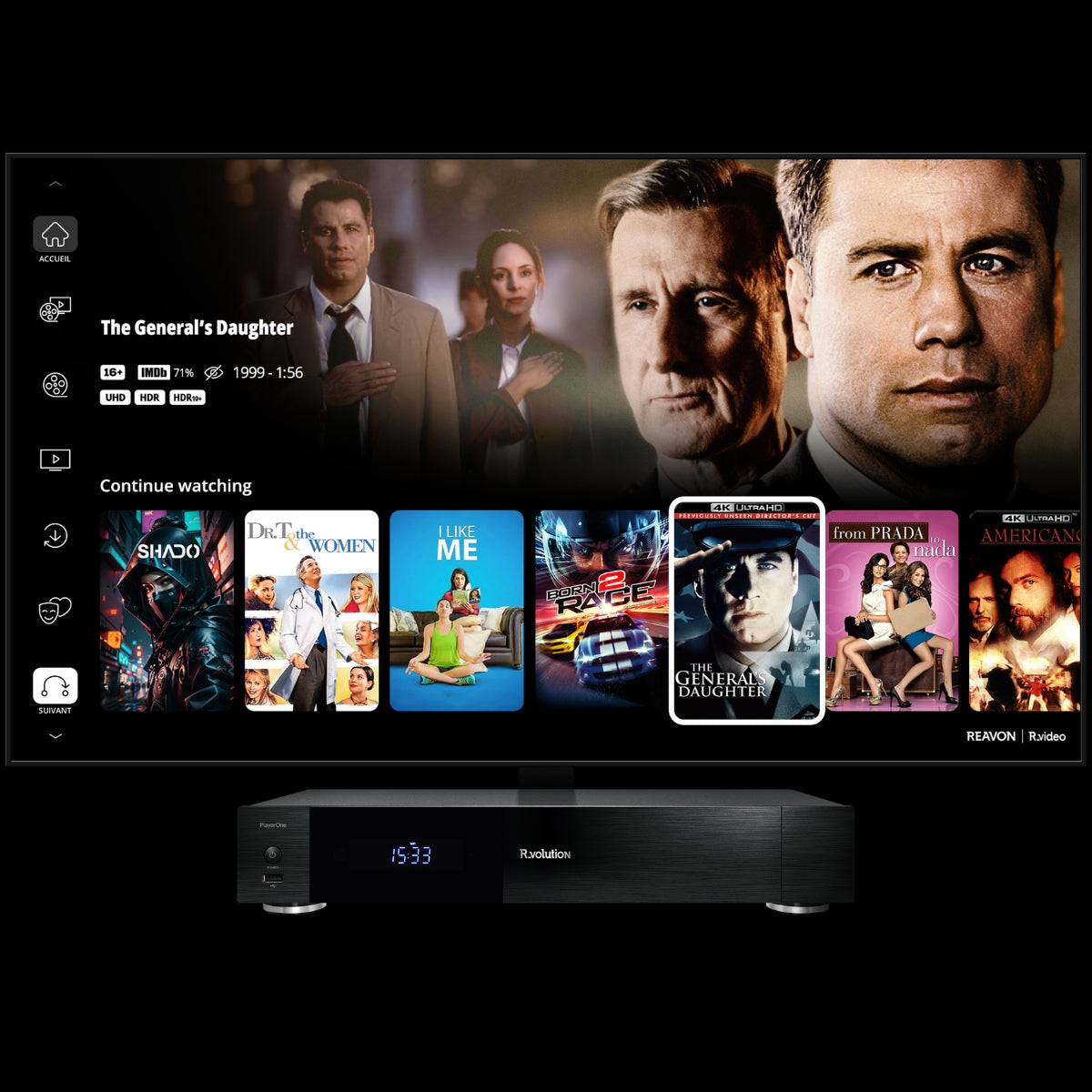

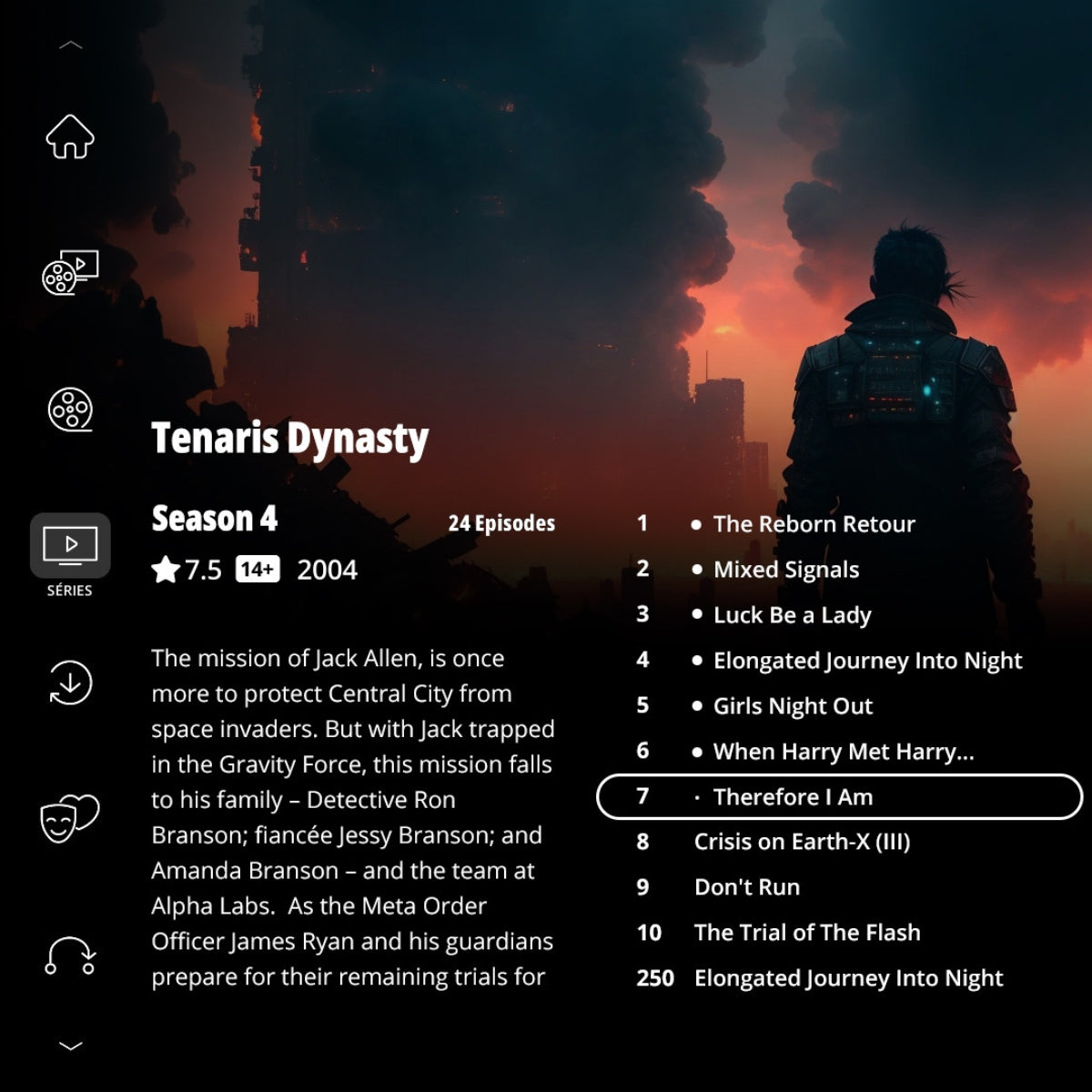

Intelligent & Customizable Media Library (R_video UI)

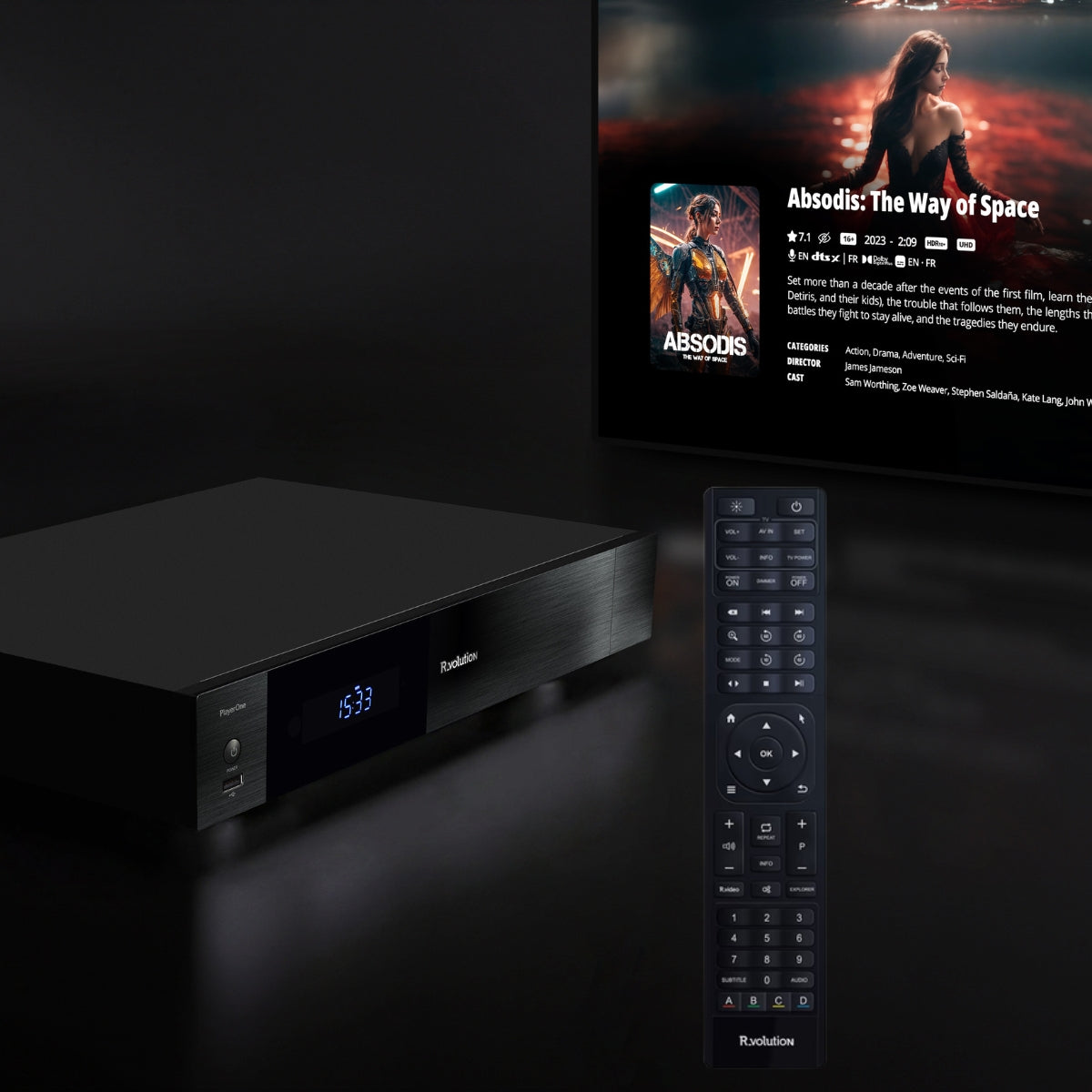

Gold-Plated Ports & Backlit IR remote
