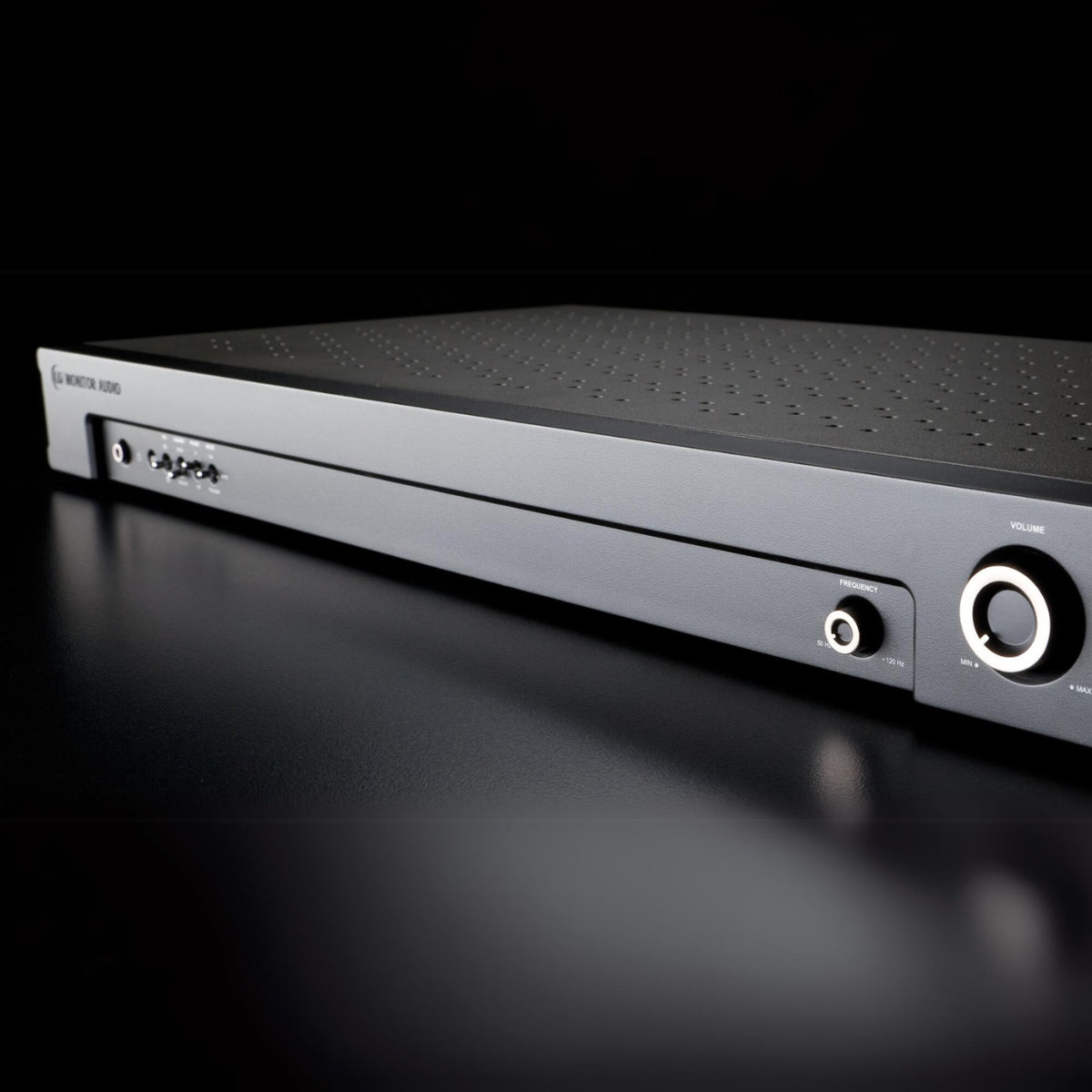

Monitor Audio IWA-250 Installation Subwoofer Amplifier
Specifications
System Format | Active sub-woofer amplifier |
Lower Frequency Limit | 25 Hz |
Upper Frequency Limit | Variable 40 – 120 Hz @ 24 dB/Octave |
Amplifier Output | 250 W @ < 1% THD+N |
Drive Unit Complement | 4 – 8 ohms |
Amplifier Classification | Class D amplifier with Switch mode power supply (SMPSU) |
Cabinet Support | For use when using the dedicated back box |
EQ | Music/ Movie/ Impact |
Phase Control | 0 & 180 degrees |
Auto Sensing | Line Level > 3.5mV |
Input Level Requirements | Standby after approximately 15 minutes if no signal sensed |
Input Impedance | > 20K ohms |
Mains Input Voltage | AC 110 - 120 V ~ 50/60Hz AC 220 - 240 V ~ 50/60Hz (Factory Region Preset) |
Dimensions (H x W x D) | 43.7 x 432 x 263 mm (13/4 x 17 x 103/8) |

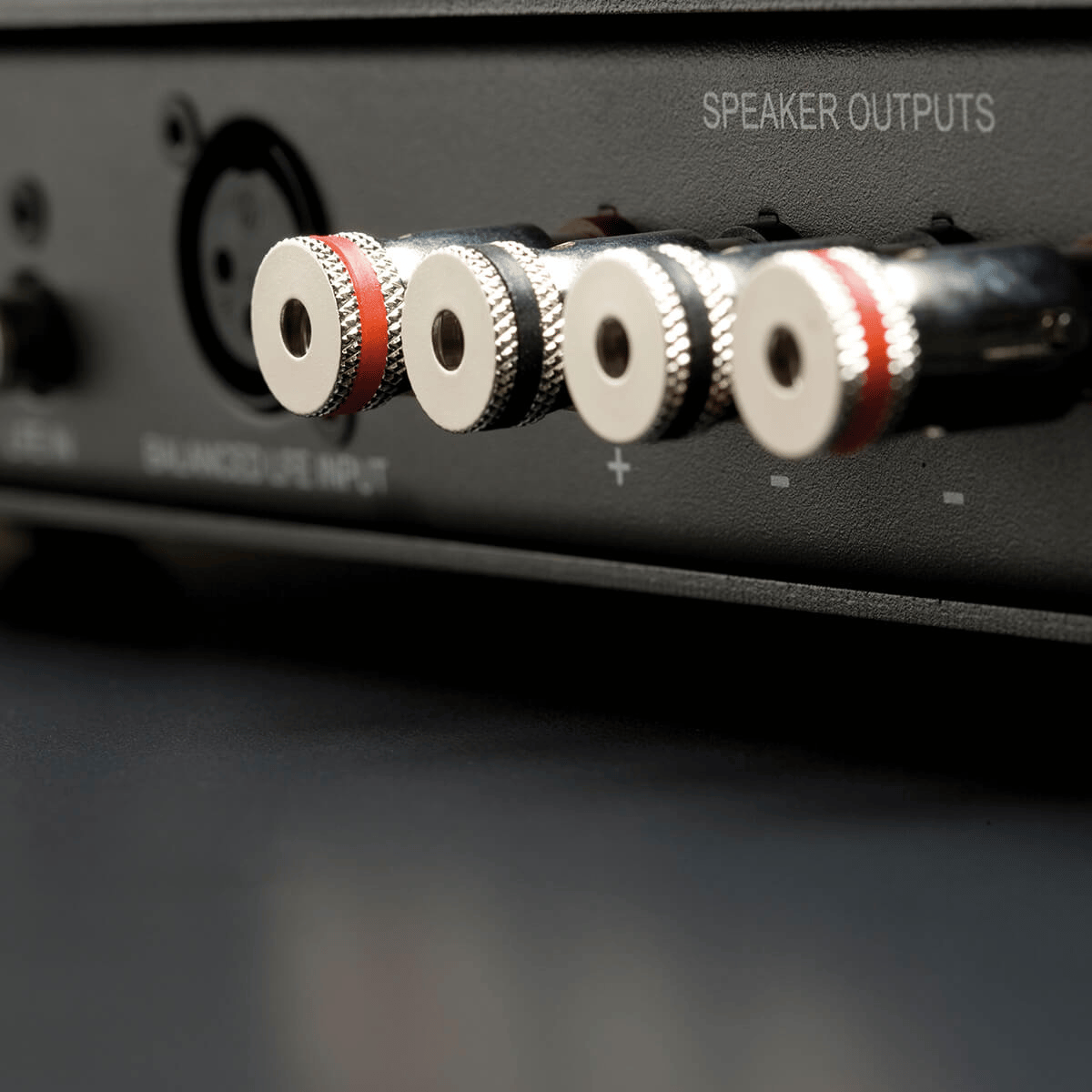

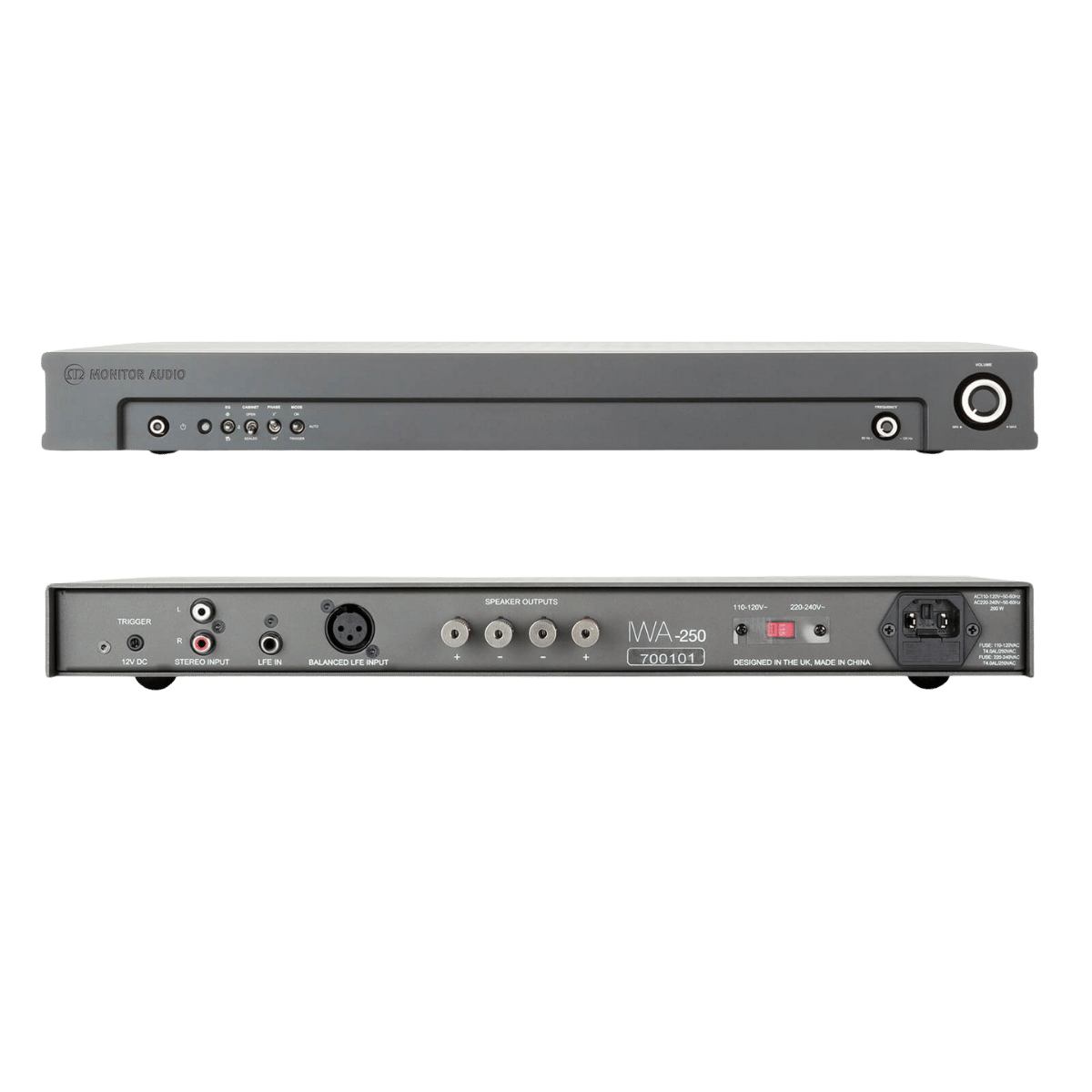

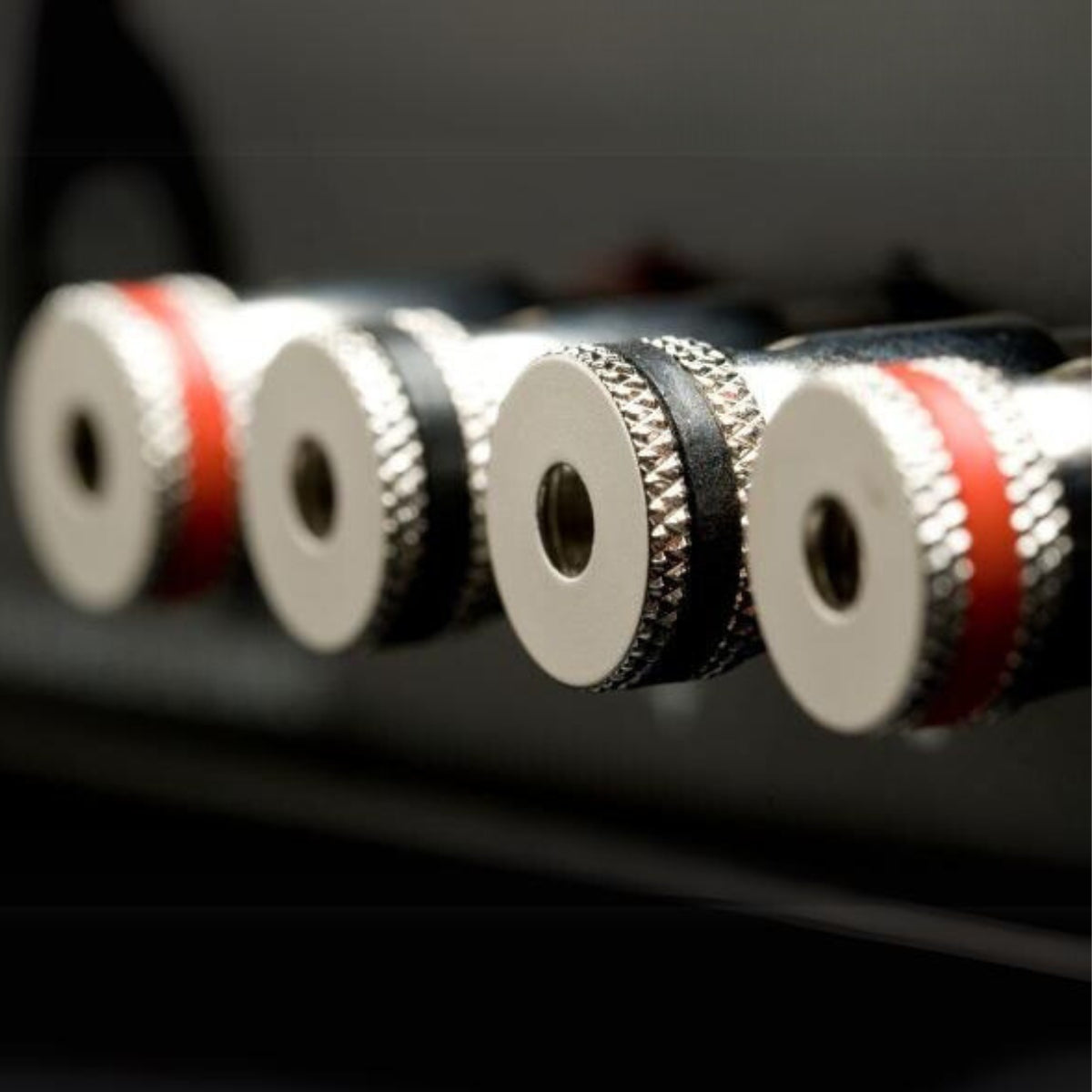

Connection | LFE in (Stereo RCA and Balanced), 12v Trigger in (3.5 mm mono mini-jack), left and right speaker output |
Trigger Input | 5 - 12v via 3.5 mm mono mini-jack socket |
Power Consumption | Standby: < 0.5 W (ErP approved) Typical Idle: < 10 W Max Rated: 200 W |
Weight (unpacked) | 4 kg (8 lb 12 oz) |
Sold As | Single Unit |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

TELL ME MORE ABOUT THE
Monitor Audio IWA-250 Installation Subwoofer Amplifier

Superior power for your home cinema or multi-room installation

Technology that works for you

BluOS with IMS-4 Streamer

Flexibility built in

Indoor sound quality, outdoors

Designed for installation
