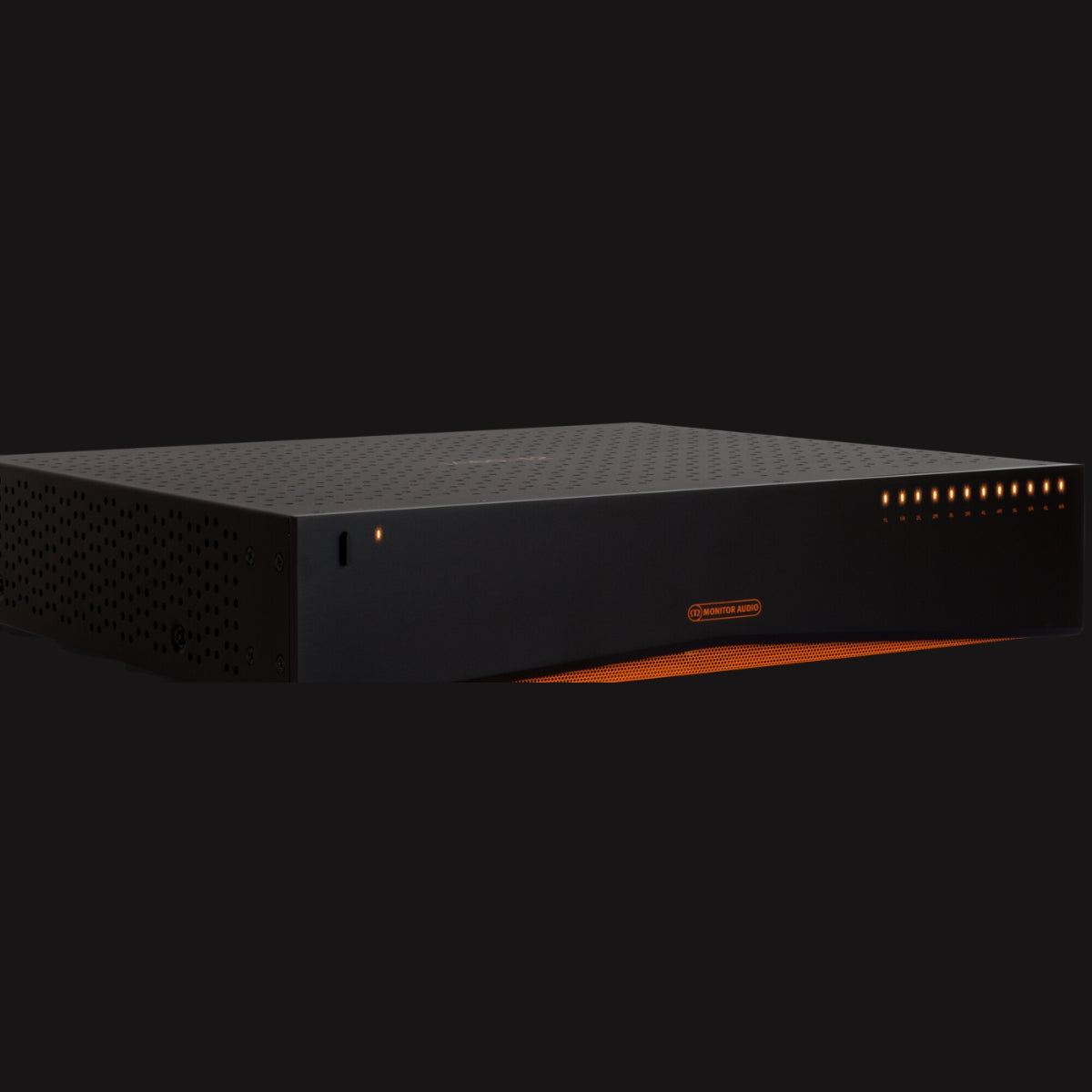

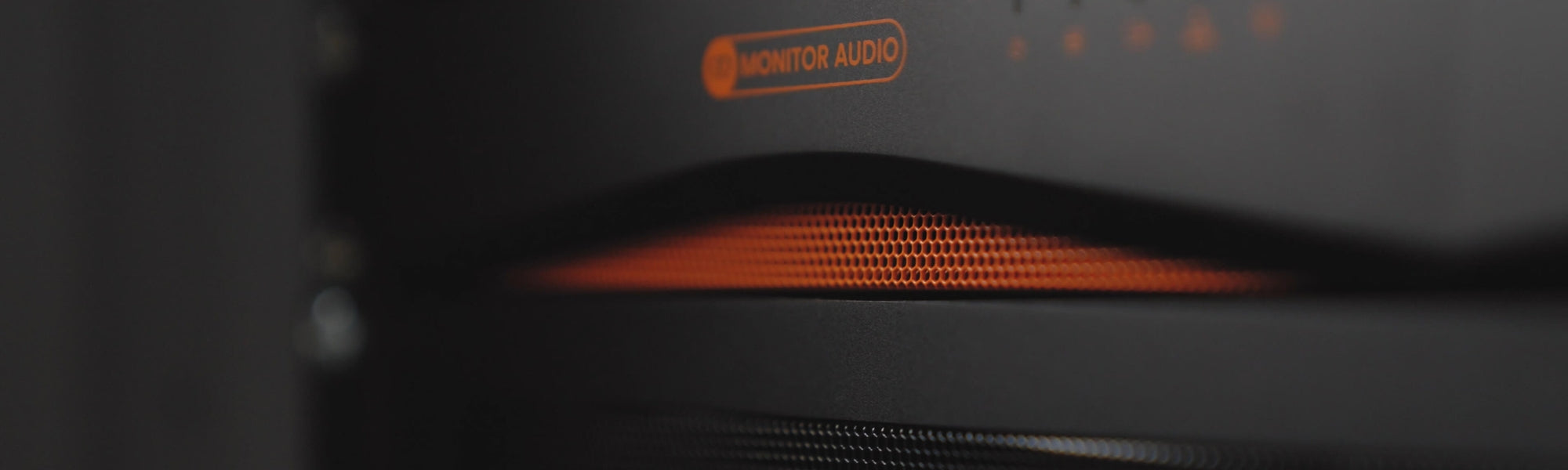

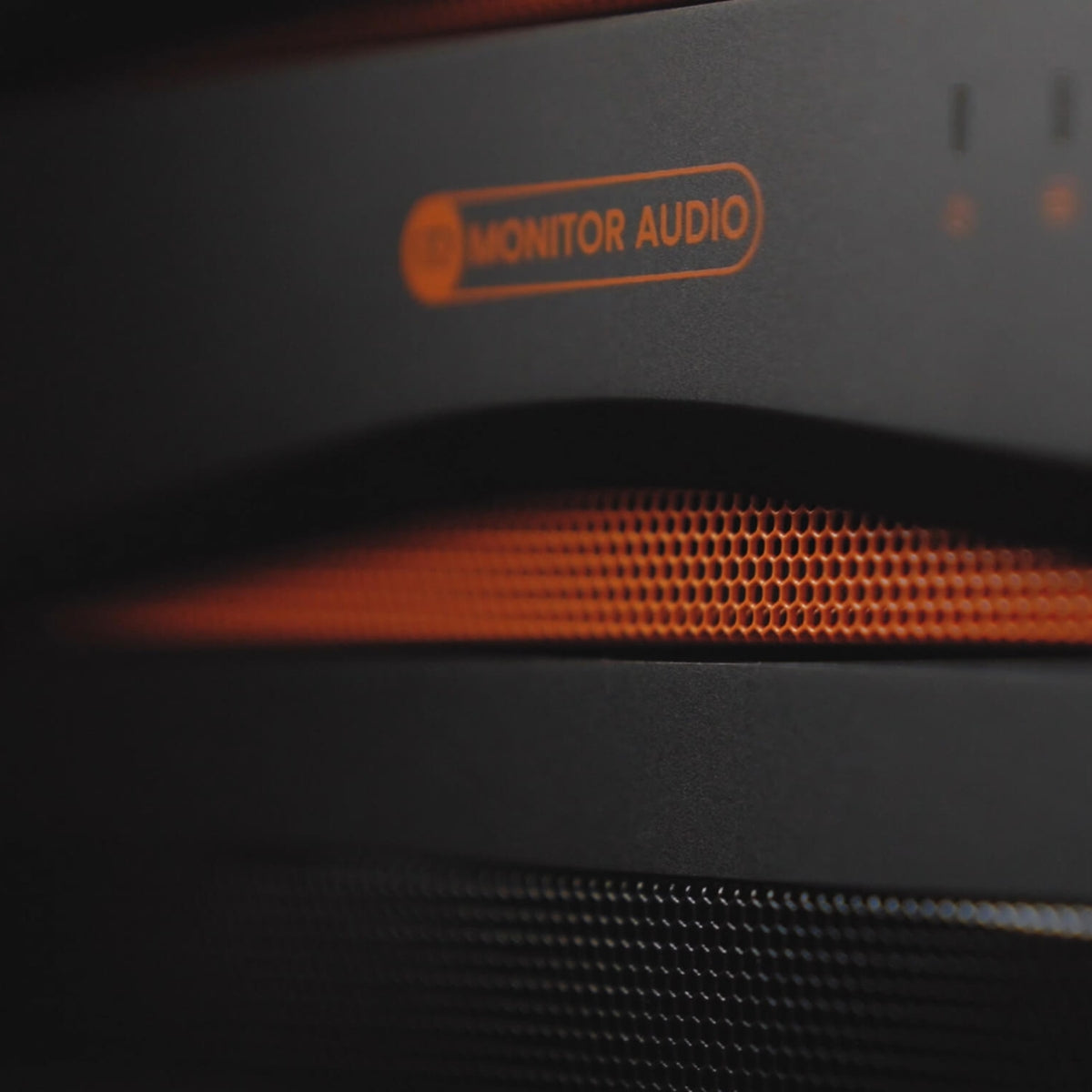

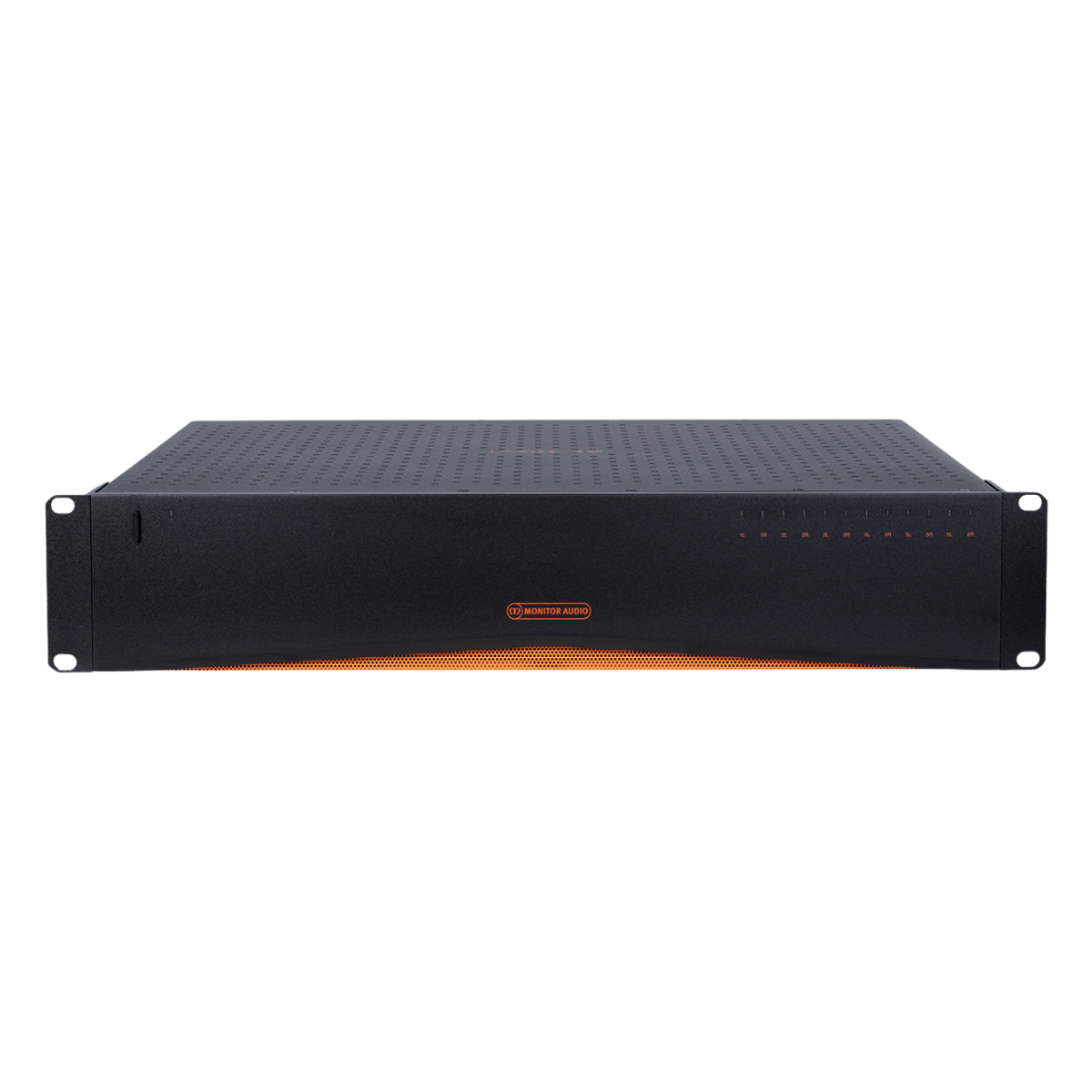

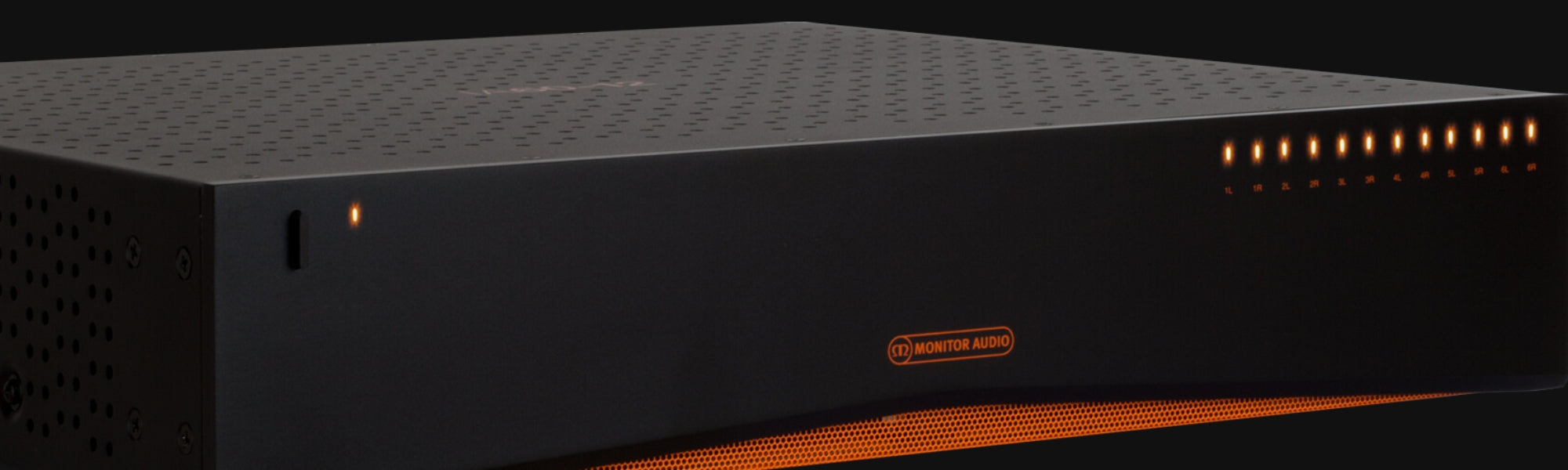

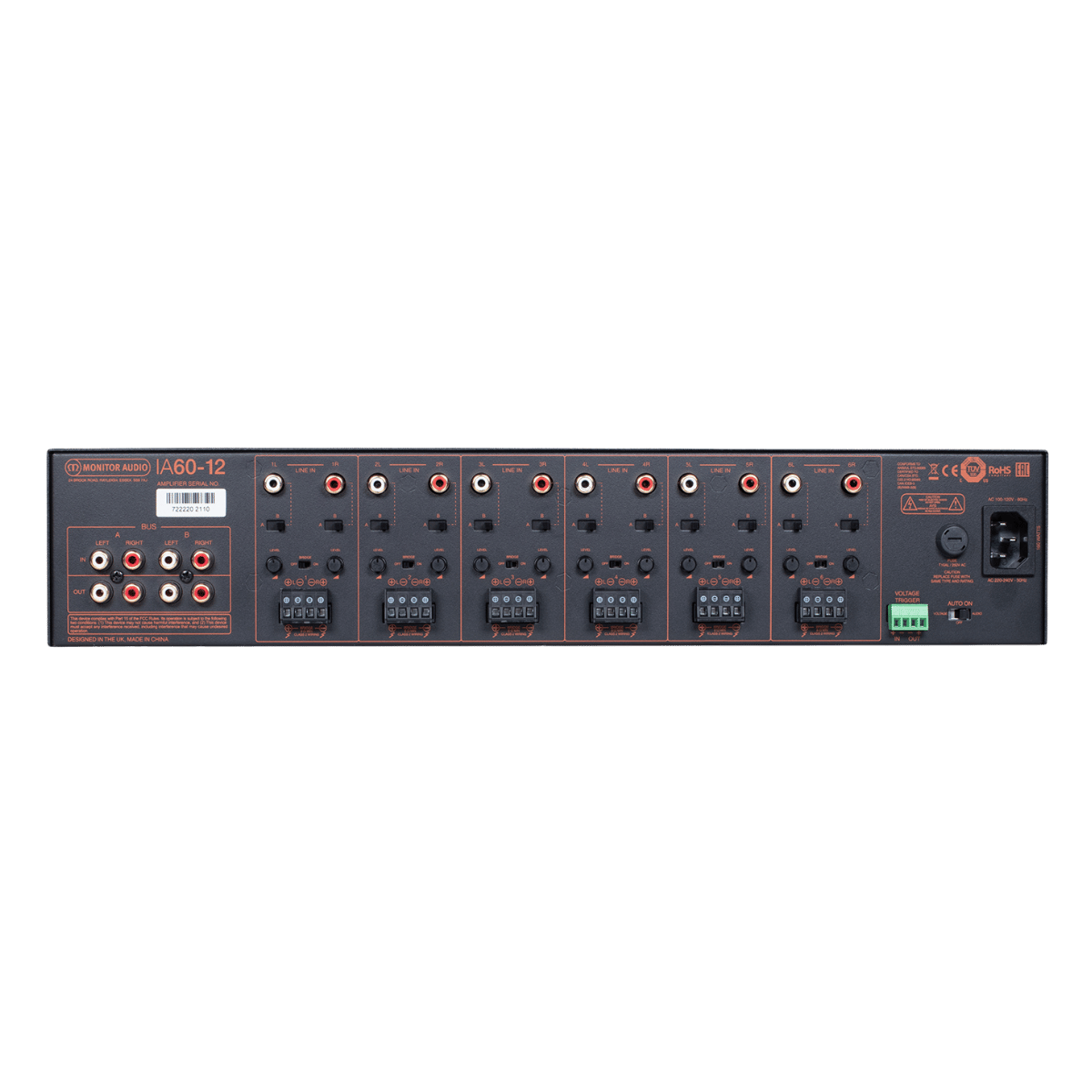

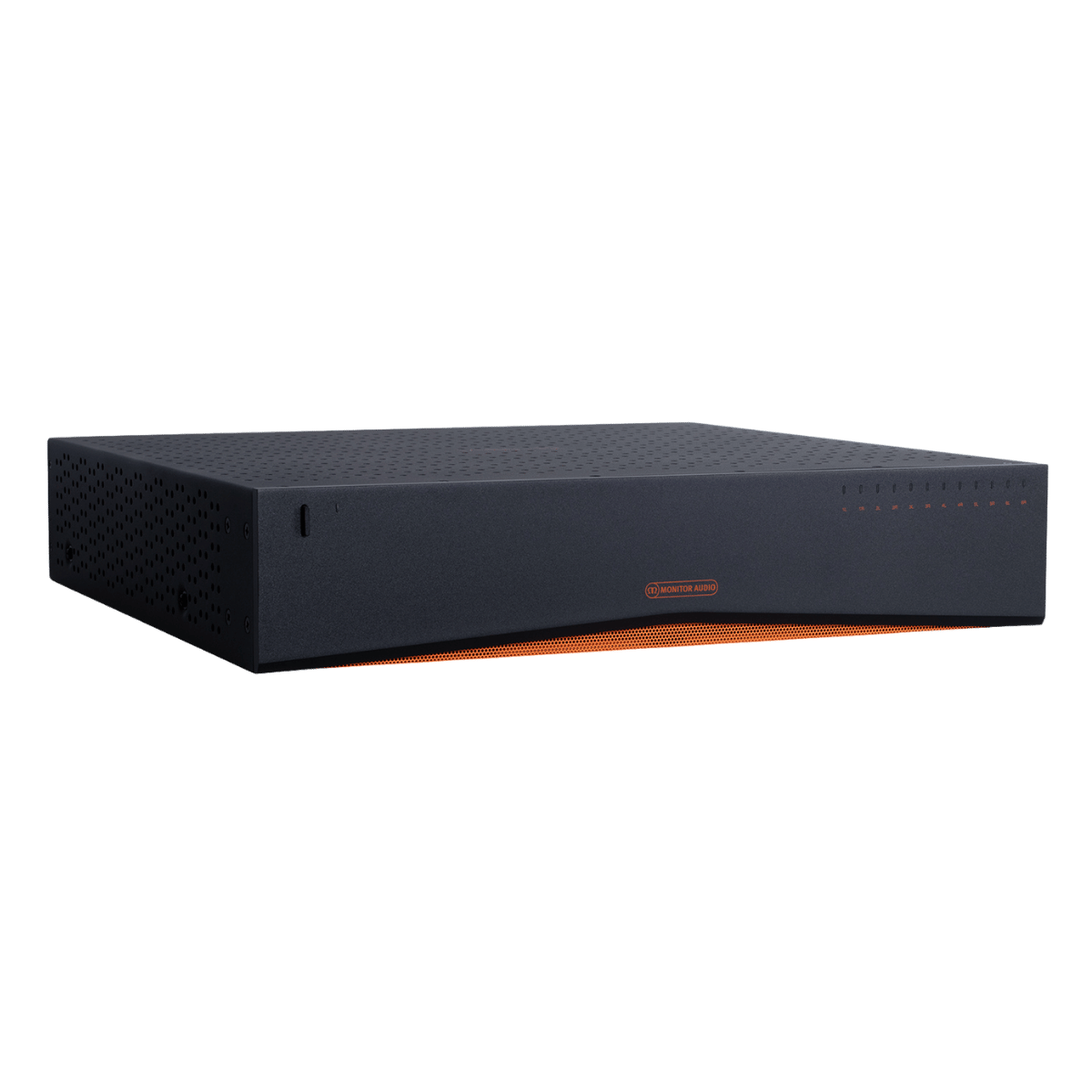

Monitor Audio IA60-12 12-channel CI Amplifier
Specifications
'Connect' IP Control | N/A |
Channel Number | 12 (6 Stereo Pairs) |
Power (W / Channel) | 4 ohms | 60 W |
Power (W / Channel) | 8 ohms | 45 W |
Power (W / Channel) | Bridge (8 ohms) | 100 W (6CH) |
Power (W / Channel) | 70V | N/A |
Input Impedance | 20 K ohms |
Output Impedance (Loop RCA) | 600 ohms |
Input Sensitivity | 100 mV / 1 W, 700 mV – Full power |
Maximum Input Voltage | 2.9 V |
Signal to Noise (SN:R) | -100 dB (20 Hz – 20 kHz) |
Frequency Response | 5 Hz – 50 kHz |
Total Harmonic Distortion THD + N@1 KHz | 0.03% |
Rack Height | 2U |
Dimensions (Excluding Feet (H x W x D)) | 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16") |
Dimensions (Including Feet (H x W x D)) | 97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16") |
Width (including rack brackets) | 482 mm (19") |
IP Communication | N/A |
Mains Operating Voltage | 100 –120 V @ 60 Hz |
220 – 240 V @ 50 Hz | |
Fuse Rating | 10 A (T10AL ~ 250VAC) |
Standby Power Consumption | <0.5 W (green mode) |
Networked Standby Power Consumption | N/A |
Weight | 7.34 kg (16 lb 2 oz) |
Sold As | Single Unit |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

TELL ME MORE ABOUT THE
Monitor Audio IA60-12 12-channel CI Amplifier

Superior power for your home cinema or multi-room installation

Technology that works for you

BluOS with IMS-4 Streamer

Flexibility built in

Indoor sound quality, outdoors

Designed for installation
