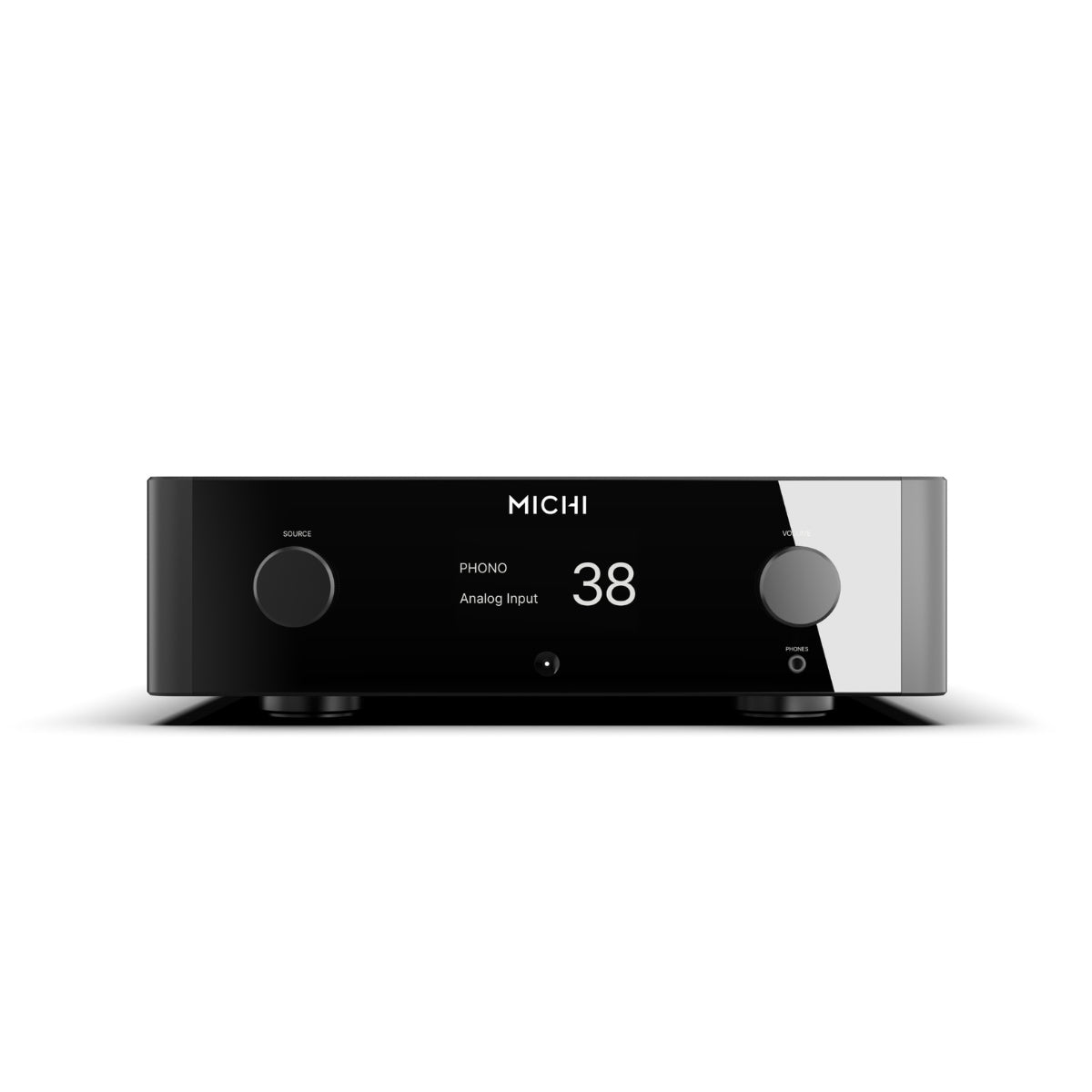

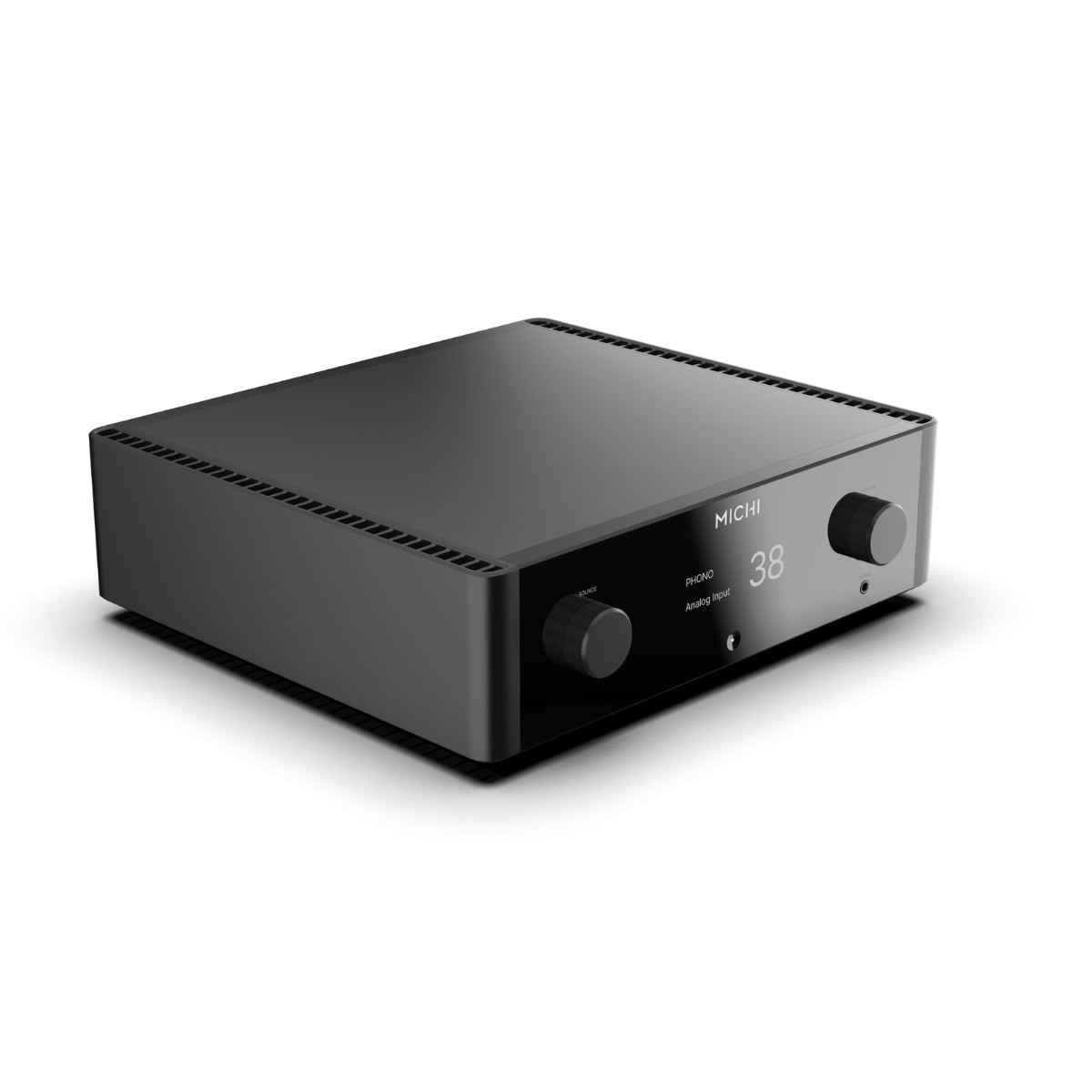

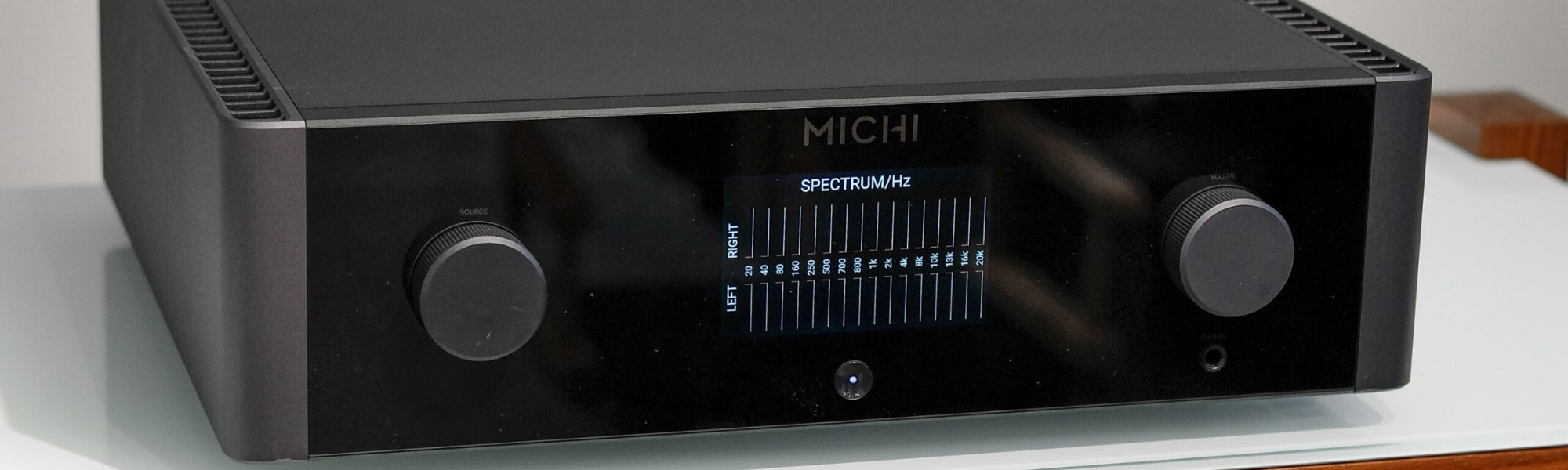

Michi X3 Series 2 Stereo Integrated Amplifier

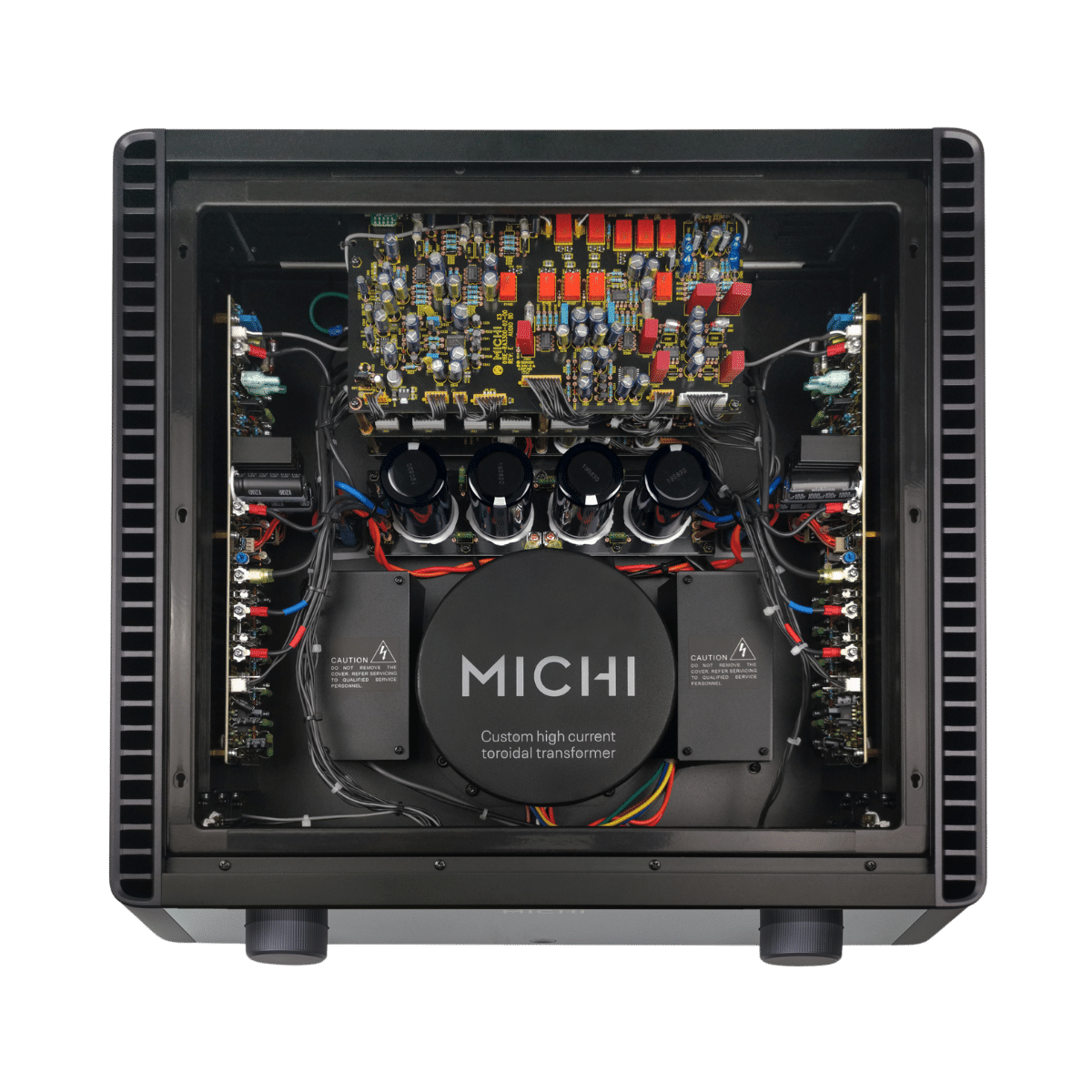

As an overall 'upgrade package' Rotel cites no fewer than 96 component changes within the analogue circuits alone, adding that, 'power supplies and audio circuitry have been re-engineered to render music with increased precision and detail with an even more immersive soundstage. Andrew Everard
Specifications
Maximum Power Output | 350 watts/channel (4 ohms) |
Continuous Power Output | 200 watts/channel (8 ohms) |
Total Harmonic Distortion | < 0.008% |
Intermodulation Distortion | < 0.03% (60 Hz : 7 kHz, 4:1) |
Frequency Response (Analog) | 20 Hz-20k Hz (+0 dB, +0.4 dB) |
Frequency Response (Digital) | 10 Hz-100k Hz (+0 dB, -0.4 dB) |
Phono Input | 5.2 mV / 47k ohms |
Line Level Inputs (RCA) | 340 mV / 100k ohms |
Line Level Inputs (XLR) | 540 mV / 100k ohms |
Damping Factor | (20 Hz - 20kHz, 8 ohms) |
Input Sensitivity / Impedance (Phono Input - MM) | 60 mV |
Input Sensitivity / Impedance (Line Level Inputs - RCA) | 3.5 V |
Input Sensitivity / Impedance (Line Level Inputs - XLR) | 5.5 V |
Input Overload (Phono Input - MM) | 1.9 V / 100 ohms |
Input Overload (Line Level Inputs - RCA) | ±10 dB at 100 Hz |
Input Overload (Line Level Inputs - XLR) | ±10 dB at 10k Hz |
Signal to Noise Ratio (IHF 'A' weighted) - Phono Input | 80 dB |
Signal to Noise Ratio (IHF 'A' weighted) - Line Level Inputs | 102 dB |
Channel Separation (Phono Input) | > 55 dB |
Channel Separation (Line Level Inputs) | > 55 dB |
Frequency Response (Digital Section) | 20 Hz - 20k Hz (0 ± 0.4 dB) |
Signal to Noise Ratio (IHF 'A' weighted) (Digital Section) | 102 dB |
Input Sensitivity/Impedance (Digital Section) | 0 dBFs / 75 ohms |
Preamplifier Output Level (Digital Section) | 1.3 V (at -20 dB Volume Position) |
Coaxial/Optical Digital Signals (Digital Section) | SPDIF LPCM (up to 192kHz 24 bit) |
PC-USB (Digital Section) | USB Audio Class 1.0 (up to 96kHz 24-bit), USB Audio Class 2.0 (up to 384kHz 24-bit)* (*Driver installation required) |
DSD and DoP support (Digital Section) | true |
MQA and MQA Studio support (Digital Section) | true |
Roon Tested (Digital Section) | true |
Power Requirements (Europe) | 230 V, 50 Hz |
Power Requirements (USA) | 120 V, 60 Hz |
Power Consumption (Standby Power Consumption) | < 0.5 watts |
Power Consumption (Normal) | 500 watts |
Power Consumption (Network Wakeup) | < 2 watts |
BTU (4 ohms, 1/8 power) | 1303 BTU/h |
Dimensions (W x H x D) | 485 x 150 x 452 mm, 19 |
Front Panel Height | 132 mm / 5 1/4 |
Weight (net) | 28.9 kg, 63.7 lb |
Finish | Black |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
TELL ME MORE ABOUT THE

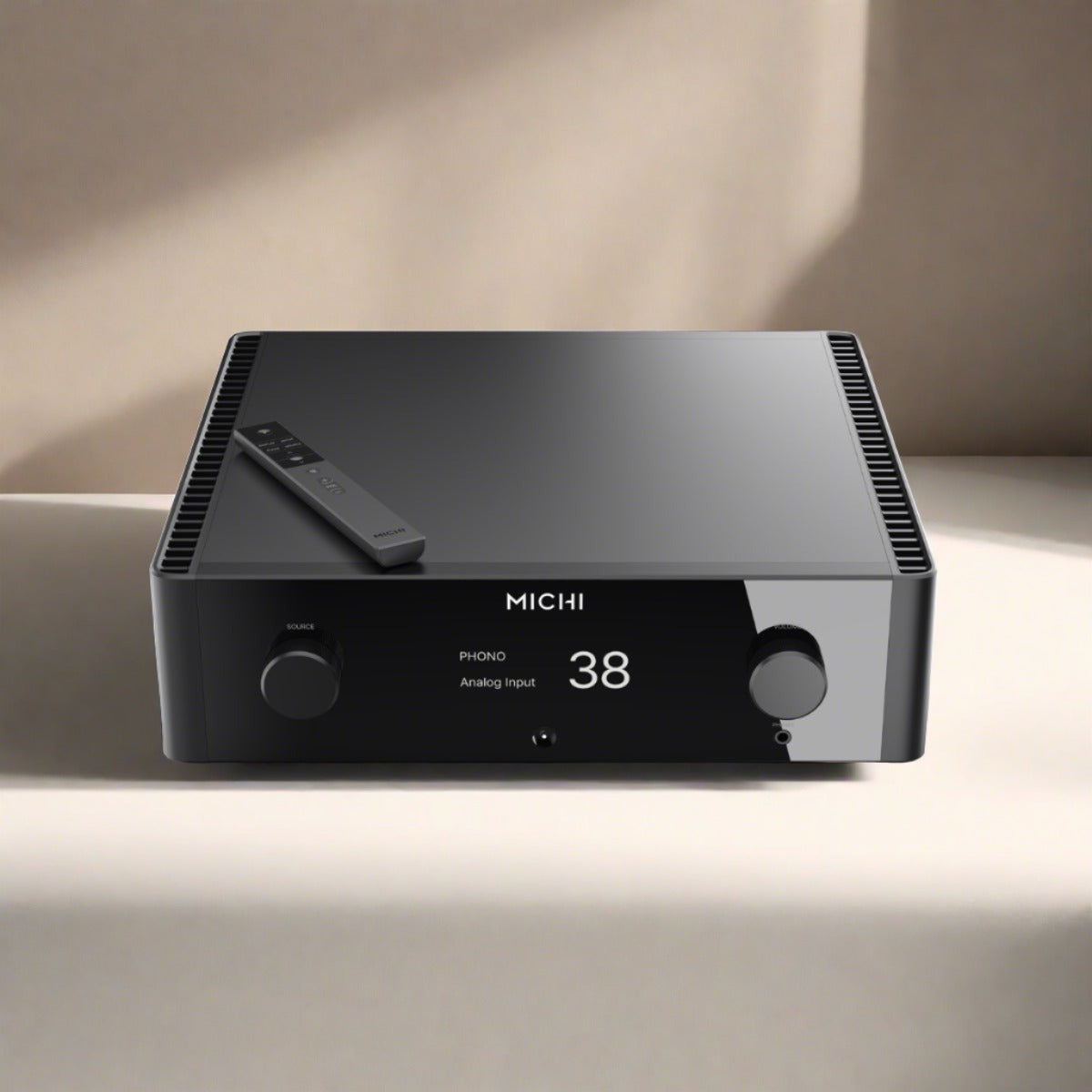

Michi X3 Series 2 Stereo Integrated Amplifier
Unparalleled Listening Experience
Versatile Connectivity Options
Meticulously Refined Design and Engineering
Intuitive Operation and Setup
Premium Build Quality and Finish
As an overall 'upgrade package' Rotel cites no fewer than 96 component changes within the analogue circuits alone, adding that, 'power supplies and audio circuitry have been re-engineered to render music with increased precision and detail with an even more immersive soundstage.
