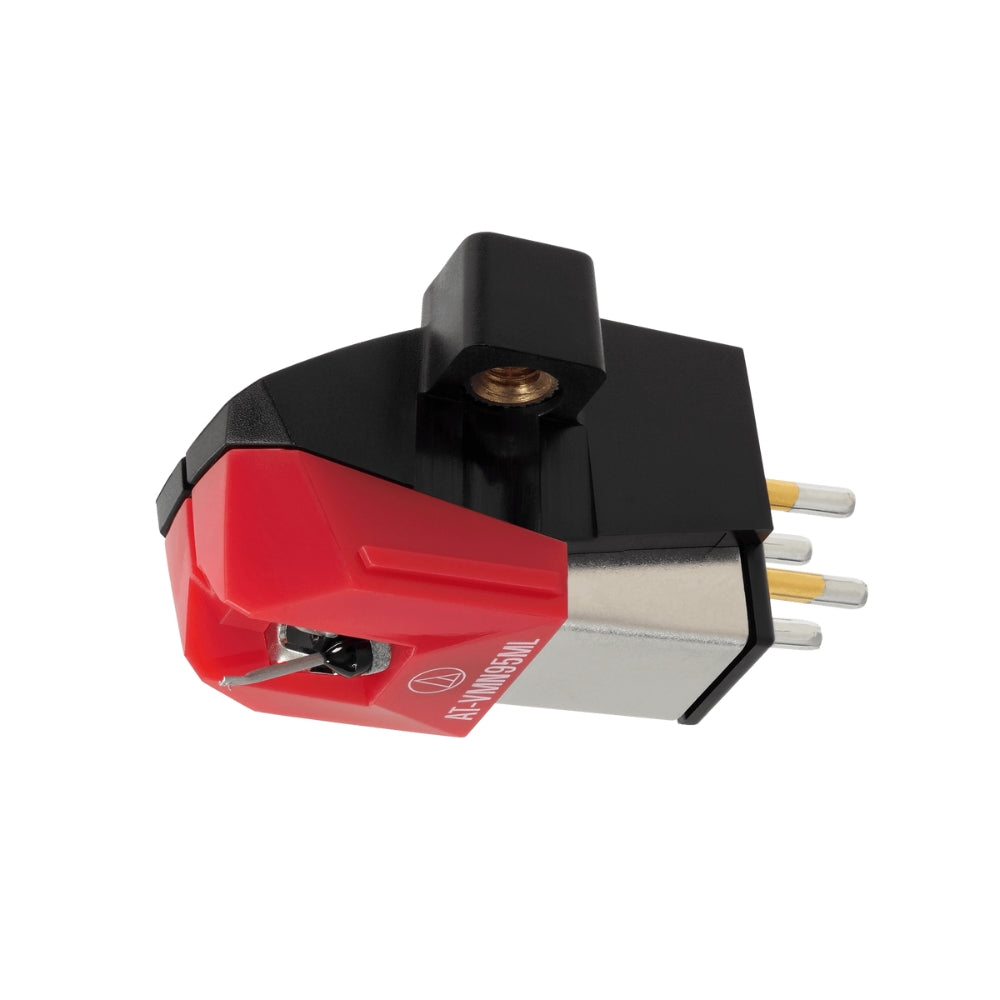

Audio-Technica AT-VM95ML Cartridge
Specifications
Frequency Response: | 20 - 25,000 Hz |
Channel Separation: | 23 dB (1 kHz) |
Vertical Tracking Angle: | 23° |
Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
Stylus Construction: | Nude Square Shank |
Recommended Load Impedance: | 47,000 Ω |
Coil Impedance: | 3.3 kΩ (1 kHz) |
DC Resistance: | 485 Ω |
Coil Inductance: | 550 mH (1 kHz) |
Output Voltage: | 3.5 mV (@ 1 kHz, 5 cm/sec) |
Output Channel Balance: | 1.5 dB (1 kHz) |
Stylus Shape: | Microlinear |
Cantilever: | Aluminium Pipe |
Static Compliance: | 20 x 10 – 6 cm / dyne |
Dynamic Compliance: | 10 x 10 – 6 cm / dyne (100 Hz) |
Mounting: | 1/2” centres |
Cartridge Weight: | 6.1g |
Dimensions (HxWxD): | 17.2 x 18.9 x 28.3 mm |
Accessories Included: | Two 11 mm installation screws; Two 8 mm installation screws; Two washers, Non-magnetic screwdriver |
Model: | AT-VM95ML |
Recommended Load Capacitance: | 100-200 pF |
Replacement Stylus: | AT-VMN95ML |
Stylus Size: | 2.2 x 0.12 mil |
Type: | VM Stereo Dual Magnet |
Wire Used for Coil | T.P. Copper |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-VM95ML Dual Moving Magnet Cartridge
This VM95ML Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. The stylus can be replaced with the interchangeable AT-VMN95ML replacement styli.
Manufacturers Details:
The Audio-Technica AT-VM95ML is a high-quality phono cartridge designed for vinyl record playback. It is part of Audio-Technica's VM95 series, known for its exceptional sound reproduction and versatility. The "ML" in its name stands for "MicroLine," which refers to the shape of the stylus tip.
The AT-VM95ML features a nude square shank MicroLine stylus, which has a smaller and more precise contact area with the record groove compared to a traditional elliptical stylus. This design allows for improved tracking and detail retrieval, resulting in enhanced audio fidelity and accurate reproduction of high-frequency information.
The cartridge has a dual-magnet design, which provides excellent channel separation and balanced audio output. It features a durable aluminium alloy body that helps minimise unwanted resonance and vibration. The AT-VM95ML has a frequency response of 20Hz to 25kHz, ensuring faithful reproduction of the entire audible spectrum.
One of the notable aspects of the AT-VM95ML is its compatibility with a wide range of turntables and headshells. It utilises the universal half-inch mounting system, making it compatible with numerous tonearm setups. This versatility allows users to easily upgrade their existing turntable setup without the need for additional adjustments or modifications.
Key Features:
MicroLine Stylus
The AT-VM95ML utilises a nude square shank MicroLine stylus. This design allows for precise tracking and excellent detail retrieval from the record groove, resulting in enhanced audio fidelity and accurate reproduction of high-frequency information.
Dual-Magnet Design
The cartridge features a dual-magnet configuration that provides excellent channel separation and balanced audio output. This ensures clear and accurate stereo imaging, allowing you to hear the nuances of your vinyl recordings.
Universal Mounting System
The AT-VM95ML employs a universal half-inch mounting system, making it compatible with a wide range of turntables and headshells. This versatility allows for easy installation and upgrading without the need for additional adjustments or modifications.
Durable Construction
The cartridge is built with a sturdy aluminium alloy body, which helps minimise unwanted resonance and vibration. This construction ensures reliable performance and stable tracking, contributing to an overall high-quality listening experience.
Wide Frequency Response
With a frequency response of 20Hz to 25kHz, the AT-VM95ML covers the entire audible spectrum, delivering accurate and faithful reproduction of your vinyl records. This extended frequency range ensures that you can enjoy the full range of musical detail and dynamics present in your vinyl collection.
