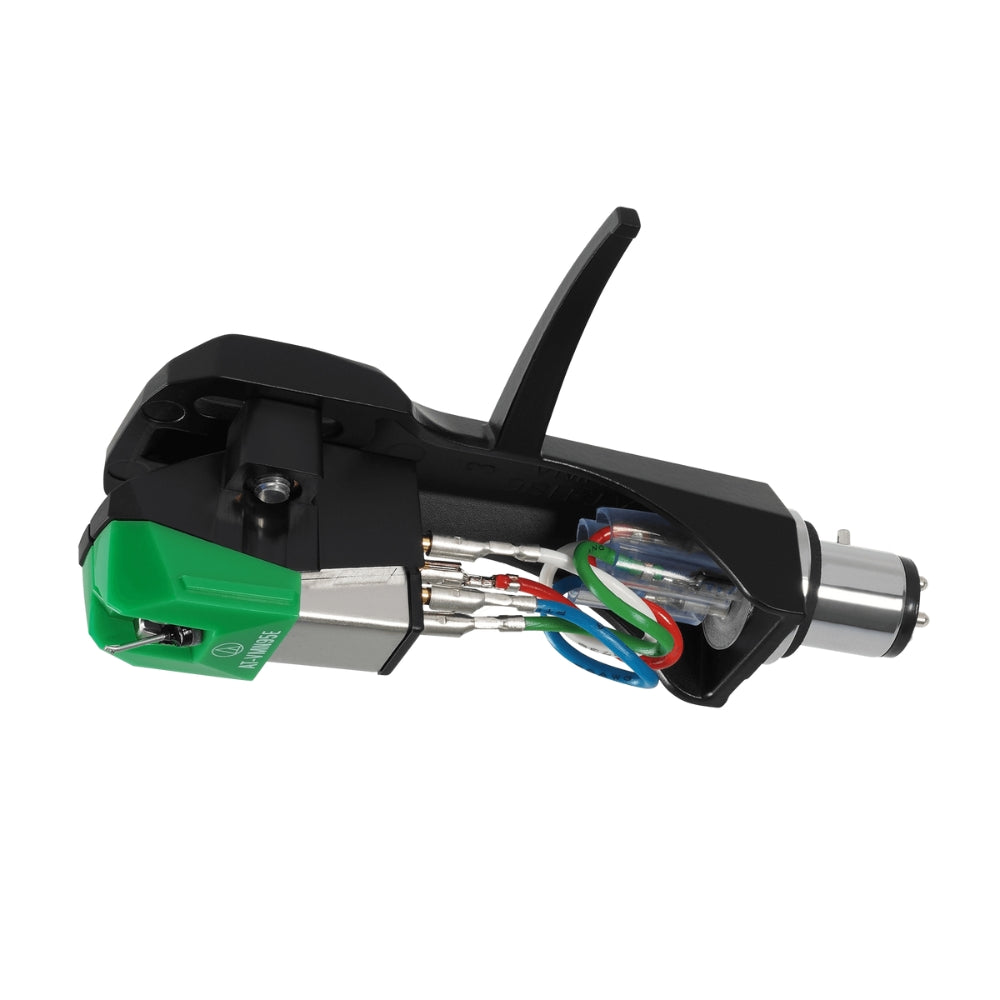

Audio-Technica AT-VM95E/H PNP Cartridge
Specifications
Frequency Response: | 20 - 22,000 Hz |
Channel Separation: | 20 dB (1 kHz) |
Vertical Tracking Angle: | 23° |
Vertical Tracking Force: | 1.8 to 2.2g (2.0g standard) |
Stylus Construction: | Bonded Round Shank |
Recommended Load Impedance: | 47,000 Ω |
Coil Impedance: | 3.3 kΩ (1 kHz) |
Coil Resistance: | 485 Ω |
Coil Inductance: | 550 mH (1 kHz) |
Output Voltage: | 4.0 mV (@ 1 kHz, 5 cm/sec) |
Output Channel Balance: | 2.0 dB (1 kHz) |
Stylus Shape: | Elliptical |
Cantilever: | Aluminium Pipe |
Static Compliance: | 17 x 10 – 6 cm / dyne |
Dynamic Compliance: | 7 x 10 – 6 cm / dyne (100 Hz) |
Mounting: | 1/2” centres |
Cartridge Weight: | 15.5 g |
Dimensions (HxWxD): | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
Model: | AT-VM95E |
Recommended Load Capacitance: | 100-200 pF |
Replacement Stylus: | AT-VMN95E |
Stylus Size: | 0.3 x 0.7 mil |
Type: | VM Stereo Dual Magnet |
Wire Used for Coil: | T.P. Copper |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-VM95E/H Headshell/Cartridge Combo Kit
The AT-VM95E/H pack is outfitted with the striking AT-VM95E double-magnet cartridge, already fixed to the voguish AT-HS6BK headshell.
Manufacturers Details:
The Audio-Technica AT-VM95E/H Headshell/Cartridge Combo Kit is a versatile and convenient package designed for vinyl enthusiasts. It consists of an AT-VM95E dual magnet phono cartridge and an AT-HS6BK headshell.
The AT-VM95E cartridge is a high-quality moving magnet (MM) type cartridge known for its excellent audio performance. It features a 0.3 x 0.7 mil elliptical stylus that tracks the grooves of your vinyl records with precision, delivering accurate and detailed sound reproduction. The cartridge is compatible with a wide range of turntables and offers a frequency response of 20 Hz to 22 kHz.
Key Features:
High-Quality Sound Reproduction
The AT-VM95E cartridge is known for its excellent audio performance, delivering accurate and detailed sound reproduction. With its 0.3 x 0.7 mil elliptical stylus, it tracks the grooves of your vinyl records with precision, ensuring faithful playback of your favourite music.
Convenient Package
The AT-VM95E/H Headshell/Cartridge Combo Kit offers a convenient solution for upgrading or replacing your turntable cartridge. The kit includes both the AT-VM95E cartridge and the AT-HS6BK headshell, providing a complete package for easy installation and alignment. This eliminates the need to purchase these components separately, saving you time and ensuring compatibility between the cartridge and headshell.
