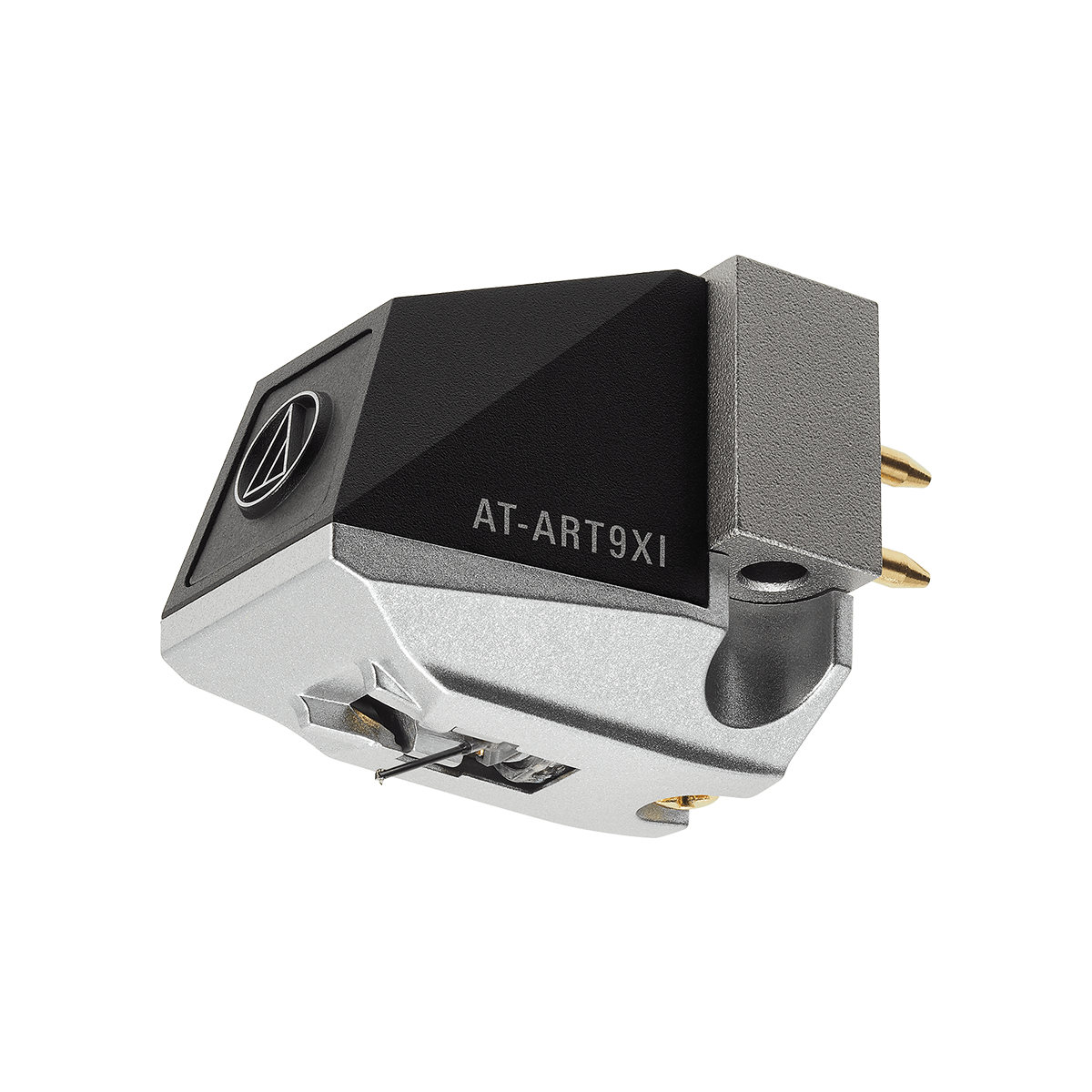

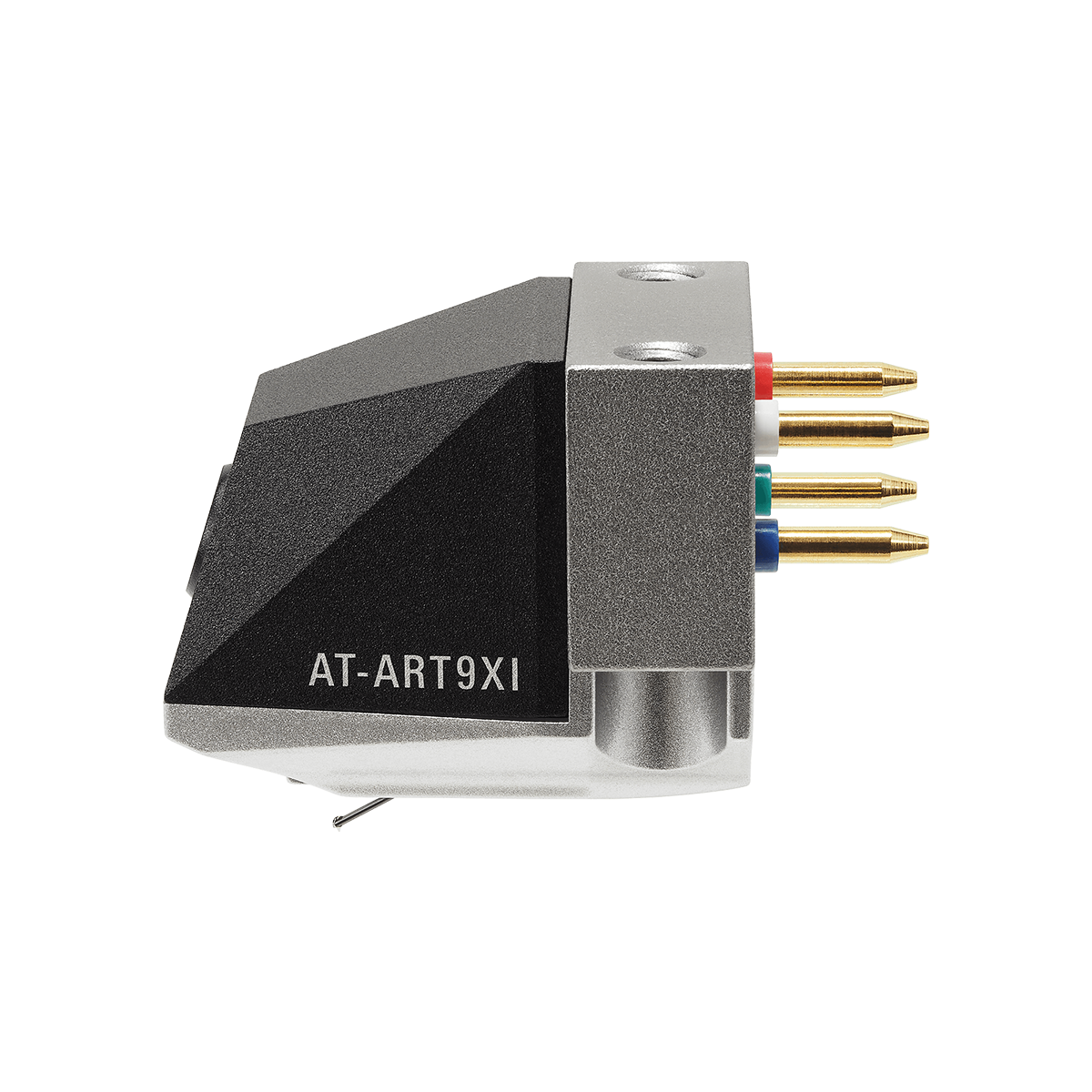

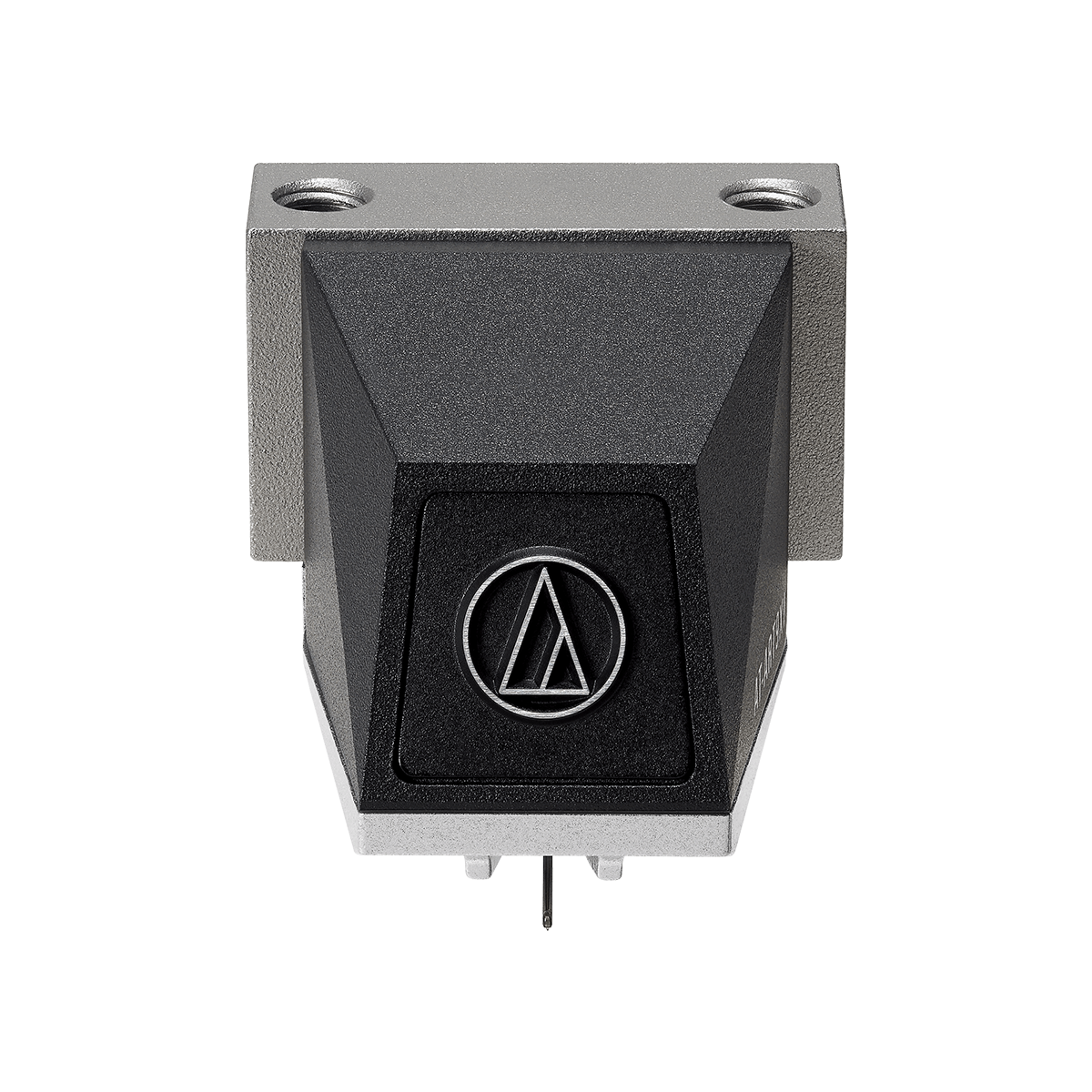

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge
Specifications
Frequency Response | 20 to 50,000 Hz |
Channel Separation | 30 dB (1 kHz) |
Vertical Tracking Angle | 20° |
Vertical Tracking Force | 1.6 to 2.0 g (1.8 g standard) |
Stylus Construction | Nude |
Recommended Load Impedance | Min. 100 ohms (when head amplifier connected) |
Coil Impedance | 12 ohms (1 kHz) |
DC Resistance | 12 ohms |
Coil Inductance | 25 μH (1 kHz) |
Output Voltage | 0.5 mV (1 kHz, 5 cm/sec.) |
Output Channel Balance | 0.5 dB (1 kHz) |
Stylus Shape | Special line contact |
Cantilever | 0.28 mm diameter solid boron |
Static Compliance | 25 x 10-6 cm/dyne |
Dynamic Compliance | 15 x 10-6 cm/dyne (100 Hz) |
Mounting | Half-inch |
Cartridge Weight | 8.5 g (0.30 oz) |
Dimensions | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |

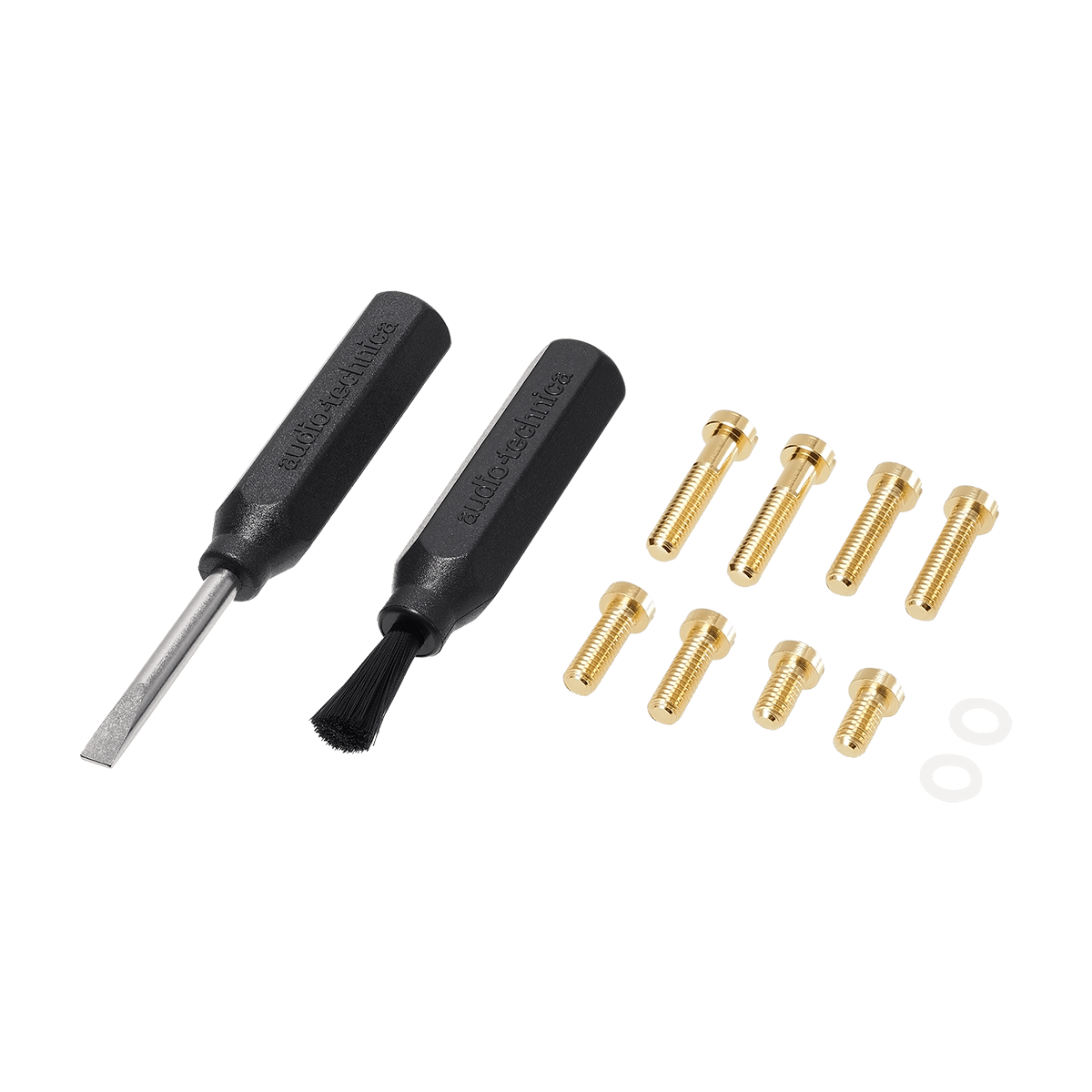

Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush |
Threaded Hole | M2.6 x 2 |
Notes | moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-ART9XI Series
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback. The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response for clear sound localization and minimal distortion. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Features
- Audio-Technica’s flagship magnetic core moving coil cartridge

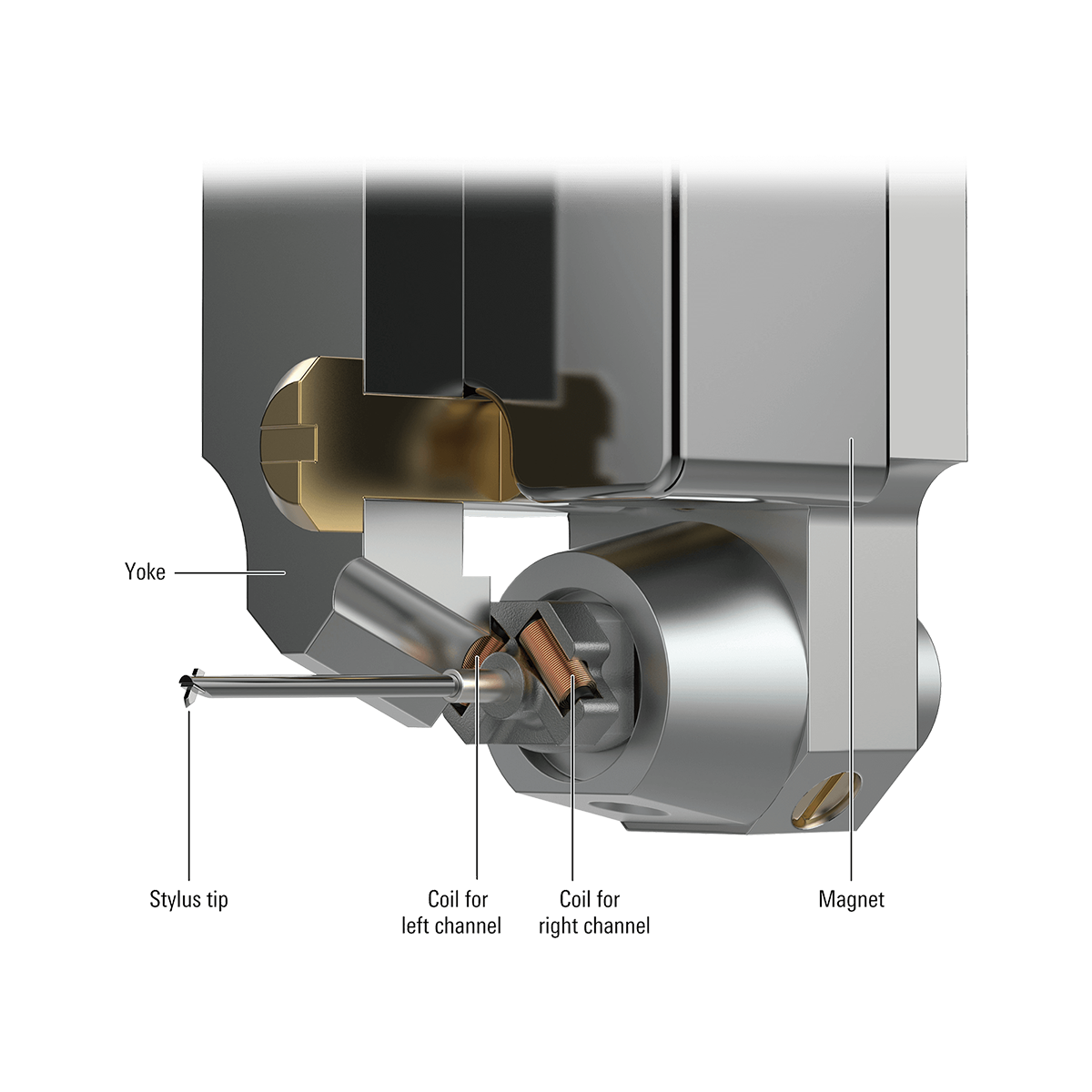

- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
- Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
- Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
